  • Page 1 Installation/User’s Guide AMT 8000 LITE...

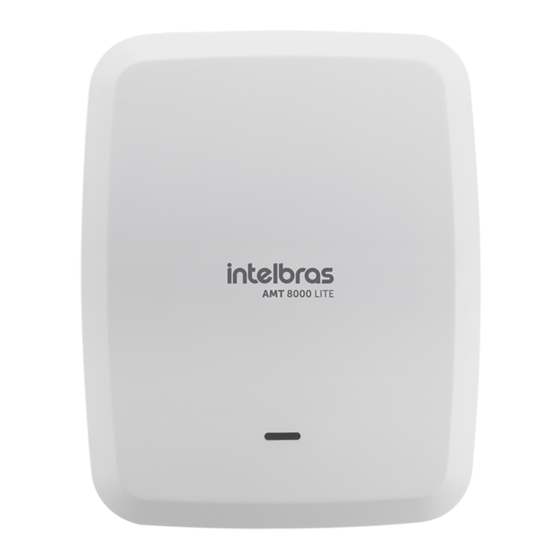

  • Page 2 Congratulations, you have just purchased a product with Intelbras quality and safety. The AMT 8000 LITE wireless alarm center features advanced technology and is easy to program. All 8000 series devices can be connected, exchanging encrypted information, for increased system security. The system...
  • Page 3 » Perform periodic tests on it, in order to validate weather conditions, battery level and other factors, so that the site monitored by the system is always in proper operating condition. » LGPD - General Personal Data Protection Act: Intelbras does not access, transfer, collect or otherwise process any perso- nal data from this product.

  • Page 4: Table Of Contents

    Summary 1. Installation 2. Enter programming mode 2.1. Enter programming mode ..............7 2.2.

  • Page 5: Installation

    1. Installation AMT 8000 LITE/PRO Front view 1. Opening to pass the network cable (Ethernet). 2. Integrated siren connection. 3. Connector for Ethernet network cable. 4. Key for registration of wireless devices. 5. Input for power supply flat cable. 6. Micro-USB connector to update the firmware of the alarm center.
  • Page 6 Attention: be careful not to reverse the position of the ground wire. Attention: The alarm center and AMT 8000 LITE do not have an auxiliary output to supply power to other devices and no connection point on the center’s boards (center, GPRS card, or power supply) should be used for this functionality, since in addition to damaging the alarm center and its accessories, the devices that are connected may be damaged because the alarm center operates with variable voltages.

  • Page 7: Enter Programming Mode

    This quick reference assumes that the center is in programming mode and presumes that the entire manual has been read and the result of each function is known. Manual available on the website www.intelbras.com.br. When accessing the programming mode, editing or viewing some programming through the keyboard, if the sequence or password is accepted, 2 confirmation beeps will be emitted, otherwise, a long error beep will be emitted, in which case you must start entering the password or command again.
  • Page 8 » Register the wireless keyboard Enter + 620 + NT + Enter + Actuate the keypad by pressing the synchronization key. NT = keyboard number from 01 to 16. » Delete wireless keyboards Enter + 720 + NT + Enter. NT = keyboard number from 01 to 16.
  • Page 9 Remote control » Remote control registration Enter + 60 + NU + Enter + Actuate the control by pressing one of the keys . NU = user number from 00 to 97. » Delete remote control Enter + 70 + NU + Enter. NU = user number from 00 to 97.
  • Page 10 Atv/Dtv partial mode only for Partition 10 Atv/Dtv partial mode only for Partition 11 Atv/Dtv partial mode only for Partition 12 Atv/Dtv partial mode only for Partition 13 Atv/Dtv partial mode only for Partition 14 Atv/Dtv partial mode only for Partition 15 Atv/Dtv partial mode only for Partition 16 PGM 01 PGM 02...
  • Page 11 » Restoring the digital tamper of the IVP 8000 EX sensor Enter + 543 + ZZ+ Enter. ZZ= 2-digit zone number. » Display of sensors firmware Enter + 641 + ZZ + Enter. ZZ = 2-digit zone number. Note: function is available for devices with version 2.0.0.0 and higher. For devices with a version lower than 2.0.0.0, 0.0.0.0 will be displayed.
  • Page 12 » Repeater firmware verification Enter + 644 + RR + Enter. RR = 2-digit repeater number. Route change by command » Search for new route sensors Enter + 544 + ZZ + Enter. ZZ = 2-digit zone number. » XAT 8000 new route search Enter + 545 + TT + Enter.
  • Page 13 » Days for Programmed auto-activation of PGM 8000 Actuator Enter + 836 + PGM + Enter. PGM = PGM number from 01 to 16. After the command, with the keyboard keys, select the days of the week from 1 to 7, where 1 = Sunday, 2 = Monday, 3 = Tuesday, 4 = Wednesday, 5 = Thursday, 6 = Friday, 7 = Saturday and 8 = holiday and confirm with Enter.

  • Page 14: Ethernet/Gprs Connection

    3.2. Ethernet/GPRS connection » Ethernet: An RJ45 type cable must be installed in the center with the Ethernet signal coming from a router, switch or directly from the signal received at the installation site. Check with the Internet provider whether the port used allows external access.

  • Page 15: Remote Update

    » Program DNS servers for Ethernet Enter + 815 + S + Enter, where S = 1 or 2 (Server 1 or Server 2) . After the command, type the DNS1 server number and press the Enter key to confirm. 3.3.

  • Page 16: Zone Configuration

    » Define permission for partial mode Enter + 221 + GS + Enter + Select password + Enter. GS = group of passwords from 0 to 9, with group 0 going from 01 to 10, group 1 from 11 to 20 and so on closing with group 9 from 91 to 97.

  • Page 17: Partition

    On input partition Enter + 516 + GP + Enter GP = group of partitions, with partitions 01 to 10 in group 0 and partitions 11 to 16 in group 1. Permission to activate and/or deactivate the oninput Enter + 518 + Enter Tecla 2 –...

  • Page 18: Temporary Configuration Of The Alarm Center

    Disable the output beep Enter + 514 + Enter + Key 8 + Enter. 3.8. Temporary configuration of the alarm center Clock Enter + 400 + HH + MM + SS + Enter. HH = hours from 00 to 23. MM = minutes from 00 to 59.

  • Page 19: Monitoring Configuration

    Day of the week auto activation Enter + 838 + PP + Enter. PP = partition from 01 to 16 (center without partition, use PP = 01). After the command, use the keyboard keys to select the days of the week from 1 to 7, where 1 = Sunday, 2 = Monday, 3 = Tuesday, 4 = Wednesday, 5 = Thursday, 6 = Friday, 7 = Saturday.
  • Page 20 Via Ethernet » Program monitoring account Enter + 15 + PP + Enter, where PP = partition from 01 to 16. After the command: type the 4-digit monitoring account number (0 to 9 or the letters B, C, D, E and F) and press the Enter key to confirm. If the center is not partitioned, use the partition as 01.
  • Page 21 » Program DNS servers for Ethernet Enter + 815 + S + Enter, where S = 1 or 2 (Server 1 or Server 2). After the command, type the DNS1 server number and press the Enter key to confirm. » Program Ethernet heartbeat interval (link test) Enter + 816 + TTM + Enter , where TTM = time interval ranging from 000 to 255 minutes (default: 5 minutes).
  • Page 22 » Program password Enter + 823 + O + Enter , where O = 1 or 2 (operator 1 or operator 2). After the command, type the password (according to the operator used) and then press the Enter key to confirm. »...
  • Page 23 » Enable/Disable Contact-ID code for zone restore type events Enter + 911 + ZZ + Enter ZZ = zone from 01 to 64 » Enable/Disable Contact-ID code for tamper-open type events Enter + 902 + ZZ + Enter ZZ = zone from 01 to 64 »...
  • Page 24 » To set up Contact-ID code for restore type system events, type: Enter + 914 + II + Enter II = system event index from 00 to 26 Opening type events System events Index Internal event Default code Wireless device low battery restoration Restoration of supervision failure Zone bypass restoration AC network restoration...

  • Page 25: Activation/Deactivation Of Functions

    Event group (EV) Event Default value LOW_SENSOR_BATTERY, Tecla 1 Enabled Tecla 2 Enabled SUPERVISION_RF_FAILURE, Tecla 3 Enabled BYPASS_ZONE, Tecla 4 Enabled AUTOMATIC_BYPASS, Tecla 5 Enabled ELECTRICAL_NETWORK_FAILURE, Tecla 6 Enabled LOW_MAIN_BATTERY, Tecla 7 Enabled ABSENT_MAIN_BATTERY, Tecla 8 Enabled Tecla 9 Enabled REMOTE_ARM_DISARM, Tecla 10 Enabled...

  • Page 26: Failure Sending Time

    3.13. Failure delivery time AC failure Enter + 481 + TM + Enter. TM = failure delivery time from 01 to 99 minutes. 3.14. System reset Reset of the whole system, except for the registration of wireless devices. Enter + 0000 + Enter. 3.15.

  • Page 27: Warranty Terms

    7. Intelbras is not responsible for the installation of this product, nor for any attempts of fraud and/or sabotage on its products. Keep the software updates and applications used up-to-date, if relevant, as well as the network protections required for protection against intrusions (hackers).
  • Page 28 Support via e-mail: suporte@intelbras.com.br Customer Service: 0800 7042767 Where to buy? Who installs it? 0800 7245115 Produced by: Intelbras S/A – Indústria de Telecomunicação Eletrônica Brasileira Rodovia BR 459, km 124, 1325 – Distrito Industrial – Santa Rita do Sapucaí/MG – 37540-000 02.22 CNPJ 82.901.000/0016-03 –...
