Intelbras XAC 8000 User Manual

User guide
XAC 8000
Remote control
Congratulations, you have just purcha-
sed a product with Intelbras quality
and security.
The XAC 8000 remote control is a
dedicated accessory for user interface
and alarm center. It allows to activate,
deactivate and perform other functions
together with the center unit with
three keys and light identification of
events. Up to 98 XAC 8000 controls
can be added to each AMT 8000 alarm
center.

1. Care and security

» Follow all instructions in the ma-
nual/guide for product installation
and handling.
» LGPD – Data processing by Intel-
bras: Intelbras does not access,
transfer, capture or perform any
type of processing of personal data
from this product.
» Do not expose the control to envi-
ronments with agents such as rain,
fog, water splashes, solid particles,
among other harmful agents.
» Wireless communication technology,
when exposed to environments with
high power radiation, may suffer in-
terference and have its performance
impaired. Example: locations near
TV towers, AM/FM radio stations,
amateur radio stations, etc.
» Clean only the external part of the
device, using only a damp cloth (do
not use chemical solvents);
» Do not subject the device to exces-
sive pressure or knocks/falls.
» Do not cover the device with adhe-
sives, paper or inks.
» Do not expose directly to sunlight.
» Only perform configurations and
installations by qualified personnel.
» Perform periodic tests on it to va-
lidate weather conditions, battery
level and other factors so that the
site supervised by the system is
always able to operate properly.
2. Technical
specifications
3 independent
Triggering
keys
RF signal from
Frequency of
915 to 928
operation
MHz
Power 11 dBm
DSSS BPSK 40
Modulation
kbps
up to 200 m
with direct line
Transmission range
of sight open
field
3 V (1 battery
Power supply
type CR2032)
–10 to 50 °C
Operating
@ 90% of
temperature
humidity
Alarm center
Compatibility
AMT 8000
Against invasive
Anti-jamming
signals
ANATEL
Yes
Homologation
Color Black
Dimensions 42 × 68 × 11
(W × H × D) mm
Weight 20 grams
Note: Intelbras wireless systems
are tested to the highest standards
and bring high reliability, but due
to their use/installation in various
scenarios, some considerations
must be taken into account:
» Transmitters/receivers
be disturbed by radio signals,
natural interference, location of
operation of the devices, climatic
issues and other adversities
affecting the transmission of
data regardless of the frequency
or technology used, since the
means of transmission is adverse
and different from place to place.
» The receivers/transmitters of
the devices have an internal
processing time, and only
receive the data necessary for
communication between them
after this particular time for the
system.
» Wireless devices must be tested
regularly to determine if sources
of interference exist and to
protect against possible failures.

3. Features

» Differentiated design.
» Protection against malicious sig-
nals.
» Encryption in data transmission
between devices.
» LED trigger status indicator.
» Long battery life.
» Anti-key lock.

4. Register

To register the control with the alarm
center, press the synchronization key
on the center unit and then press any
of the control keys to connect both
and the LED should flash green, indi-
cating the success of the registration.
If the LED flashes orange, the signal
is intermittent or weak and if the LED
flashes red, there was some fault and
the process must be repeated. The
control addressing will be according
to the sequence performed, respec-
ting the maximum limit of 98 devices
of this type.

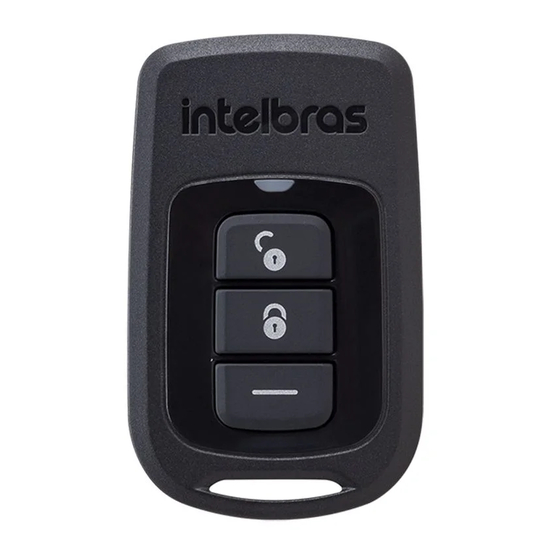

XAC 8000 remote control
may
To physically delete a control registe-
red in the alarm center, hold down the
keys of positions 1 and 2 (following
vertical orientation) of the control for
10 seconds until the LED flashes twice
in red. When physically deleting the
controls, they must also be deleted
from the memory of the center unit via
programming.
To register other controls/accessories
through keyboard commands and
more information/configurations, refer
to the complete manual of the AMT
8000 center unit.
Note: when registering the XAT
8000 remote control to the alarm
center using the synchronization key,
perform the practice safely, because
the alarm center is energized, so as
not to bring risks to the installer and
the equipment.
