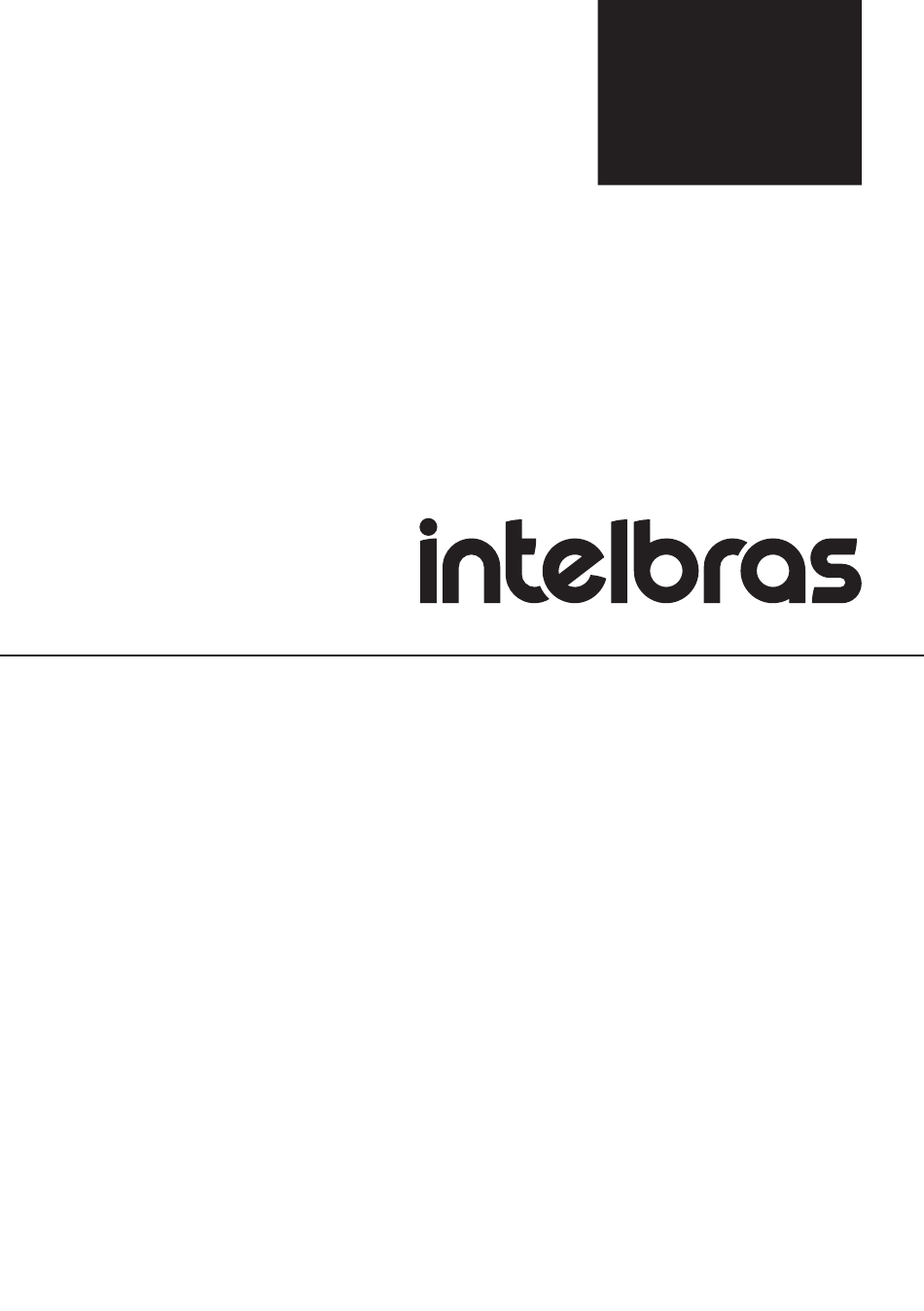

  • Page 1 English Installation/User Guide AMT 8000 LITE AMT 8000 PRO...
  • Page 2 Congratulations, you have just purchased a product with Intelbras quality and security. The wireless alarm panels AMT 8000 LITE and AMT 8000 PRO have advanced technology and are easy to program. All 80001 series devices can be connected exchanging information with encryption for added security of the system.
  • Page 3 » Perform periodic tests on it, in order to validate weather conditions, battery level and other factors, so that the site supervised by the system is always able to operate correctly. » LGPD - General Personal Data Protection Law: Intelbras does not access, transfer, capture, or carry out any other type of processing of personal data from this product.

  • Page 4: Table Of Contents

    Summary 1. Installation 2. Enter programming mode 2.1. Enter programming mode ..............7 2.2.

  • Page 5: Installation

    1. Installation Front view 1. Opening for passing the Ethernet cable and telephone line (AMT 8000 PRO compatibility). 2. Integrated siren connection. 3. Connector for Ethernet network cable. 4. WI-FI Module (AMT 8000 PRO compatibility). 5. Button for registering wireless devices. 6.
  • Page 6 Caution: be careful not to invert the position of the ground wire. Attention: the AMT 8000 LITE and AMT 8000 PRO alarm control panels do not have an auxiliary output to power other devices and no connection point on the control panel boards (control panel or source) should be used for this functionality, as in addition to damaging the alarm control panel and its accessories, it may damage the devices that are connected because the alarm panels operate with different voltages.

  • Page 7: Enter Programming Mode

    2. Enter programming mode Note: to modify the technical parameters of your control panel, it is recommended to contact a qualified technician. 2.1. Enter programming mode To modify any operating parameter of the control unit, it is always necessary to enter the programming mode. To do this, type the following sequence: Enter + Password (Master password or installer password) 2.2.
  • Page 8 Keyboard commands for wireless devices » Keyboard » Change system language Enter Enter » I = 0: Portuguese » I = 1: Spanish » I = 2: English Note: functionality available from version 1.0.1 of the XAT 8000 keyboard. » Register wireless keyboard Enter + 620 + NT + Enter + Trigger keyboard by pressing sync key NT = keyboard number from 01 to 16.
  • Page 9 NU = user number from 00 to 97. » Remote controller firmware check Enter + 645 + CC + Enter CC = 2-digit remote control number » Remote control key functions Enter + 65 + T + NU + FC + Enter T = control key from 1 to 3.
  • Page 10 Atv/Dtv Partial mode for Partition 16 only PGM 01 PGM 02 PGM 03 PGM 04 PGM 05 PGM 06 PGM 07 PGM 08 PGM 09 PGM 10 PGM 11 PGM 12 PGM 13 PGM 14 PGM 15 PGM 16 » Wireless sensors »...
  • Page 11 NS = siren number from 01 to 16. » Delete wireless sirens Enter + 721 + NS + Enter NS = siren number from 01 to 16. » Sirens firmware check Enter + 643 + SS + Enter SS = 2-digit Siren Number »...
  • Page 12 NA = Actuator number from 01 to 16 » Delete PGM 8000 actuator Enter + 723 + NA + Enter NA = Actuator number from 01 to 16 » Firmware check for PGM 8000 actuators Enter + 646 + PP + Enter PP = 2 digit PGM number »...
  • Page 13 After the command, using the keyboard keys, select the days of the week from 1 to 7, where 1 = Sunday, 2 = Monday, 3 = Tuesday, 4 = Wednesday, 5 = Thursday, 6 = Friday, 7 = Saturday and 8 = holiday and confirm with Enter. »...
  • Page 14 Passwords » Password programming 1 (programmer user exclusive programming) » Change user passwords for positions 98 and 99 Enter + 20 + NU + PASSWORD + Enter NU = user number from 98 or 99. PASSWORD = password to be programmed containing 4 or 6 digits. »...
  • Page 15 G = Group Zones from 0 to 6. After entering the command, through the keyboard keys, enable/disable the corresponding zones for the group and press the key Enter to confirm. Zone functions Timed Follower 24 hours Panic Medical emergency Fire »...
  • Page 16 Timers » Input timing Enter + 42 + PP + TTS + Enter PP = partition from 01 to 16 (non-partitioned switch, use PP = 01). TTS = time from 000 to 255 seconds. » Beep adjustment on input delay Enter + 542 + Adjust volume + Enter 0 - Disabled 1 - Low...
  • Page 17 Periodic test » Enable periodic testing by time Enter + 470 + HH + MM + Enter HH = hours from 00 to 23. MM = minutes from 00 to 59. » Disable periodic testing by time Enter + 470 + Deactivate + Enter »...
  • Page 18 » Set holidays for Auto-activation/Auto-deactivation Enter + 404 + PP + F + DD + MM + Enter PP = partition from 01 to 16 (non-partitioned switch, use PP = 01). F = holiday memory number from 0 to 9. DD = day from 01 to 31.
  • Page 19 P = port that will be used for the switchboard to connect, where 1 = port 1 and 2 = port 2. After the command enter the port number with 4 digits. Note: this field defines the port to which the control panel will connect, factory default: 9009 . The Intelbras Receiver IP software must be setup for the same port.
  • Page 20 After the command, type the network Gateway number and press the Enter key to confirm. » Programming DNS servers for Ethernet (cable connection) Enter + 815 + S + Enter, where S = 1 or 2 (Server 1 or Server 2) After the command, enter the server number of DNS1 and press the Enter key to confirm.
  • Page 21 » Interval between GPRS connection attempts Enter + 829 + TG + Enter , where TG = Interval time for reconnection attempts from 00 to 20 (default 00 minutes ) » Cloud Connection (factory default enabled) Enter + 512 + Enter After the command, use the 6 key on the keyboard to enable or disable the function and press the Enter key to confirm (square marked function blocked and empty square function unlocked).
  • Page 22 » Enable/Disable Contact-ID code for opening type system events Enter + 904 + II + Enter II = system event index from 00 to 26 Opening type events System events Index Internal event Default code Wireless device low battery Supervision failure Zone bypass AC network failure Low system battery...
  • Page 23 » Set up Contact-ID code for restore type system events, enter: Enter + 914 + II + Enter II = system event index from 00 to 26 Opening type events System events Index Internal event Default code Wireless device low battery restore Supervisory failure restore Zone bypass restore AC network restore...
  • Page 24 » Set up event code Push Enter + 92 + EV + Enter + Select event + Enter EV = group of events from 0 to 3, with group 0 being from 01 to 10 and so on, until group 3 is from 31 to 35. Events group Event Standard value...

  • Page 25: Approval

    » Activation/deactivation of functions Enter + 51 + GF + Enter + FUNCTION + Enter GF = group of functions from 0 to 5. FUNCTION = key corresponding to the function. Group of functions Group of Group of Group of functions 0 Group of functions 1 Group of functions 2 functions 4...

  • Page 26: Warranty Certificate

    If you have any questions about the reverse logistics process, please contact us at (48) 2106-0006 or 0800 704 2767 (Monday to Friday from 8 am to 8 pm and on Saturdays from 08 am to 06 pm) or through the e-mail suporte@intelbras.com.br.
  • Page 28 Support via e-mail: suporte@intelbras.com.br Customer Service / Where to buy? / Who installs it? 0800 7042767 Produced by: Intelbras S/A – Indústria de Telecomunicação Eletrônica Brasileira Rodovia BR 459, km 124, 1325 – Distrito Industrial – Santa Rita do Sapucaí/MG – 37540-000 01.24...
