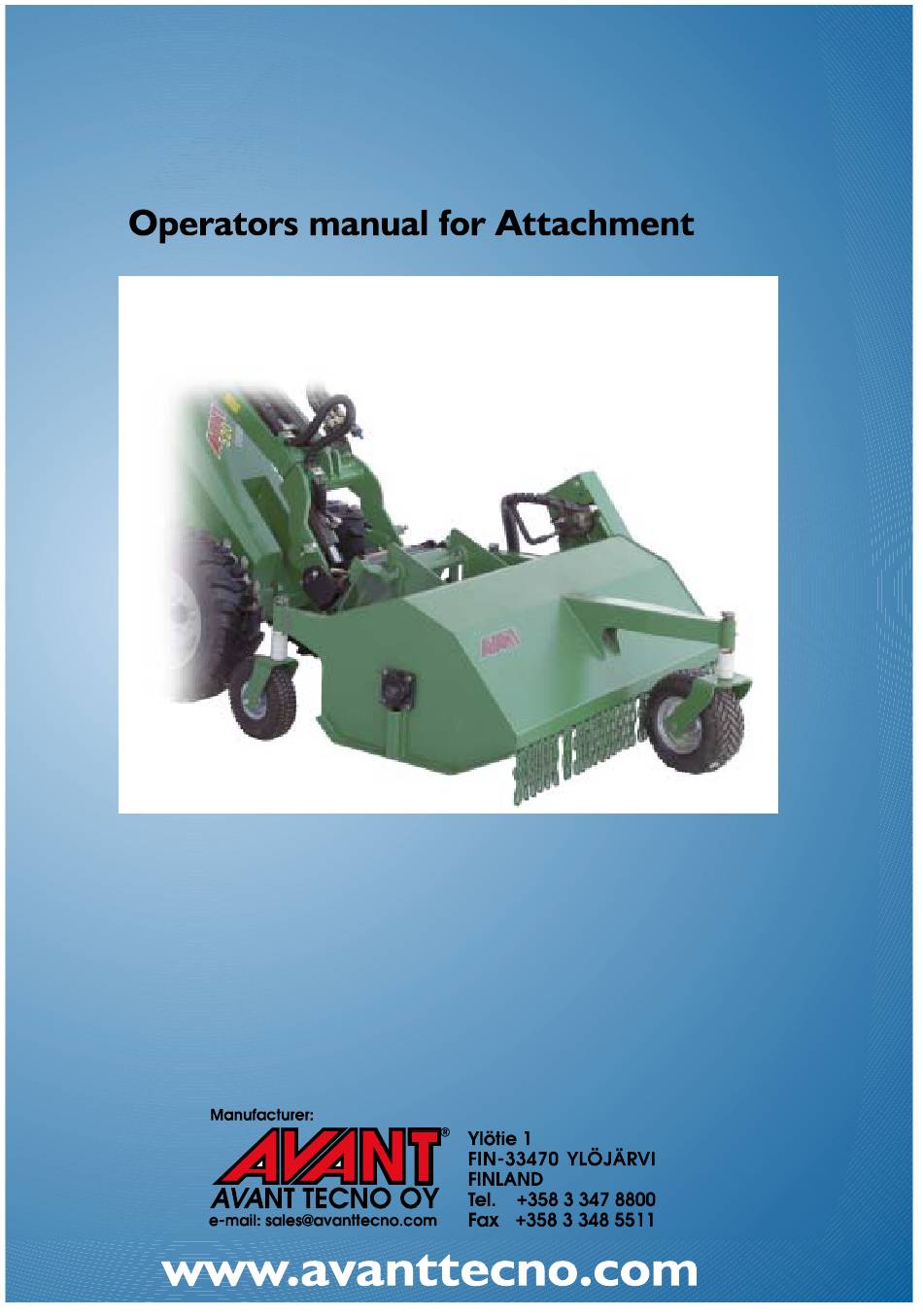

- Page 1 Flail mower for Avant 200 and 500 series loaders Working width 1000 mm (A2853 500 Series, A21115 200 Series) Working width 1250 mm (A21030 500 Series)
- Page 2 2. Designed purpose Flail mowers (A21030 and A2853) are intended for Avant 200 and 500 series loaders only. It is designed for cutting down tall grass, hay, shrubs or similar vegetation.
- Page 3 4. Technical specification A21030: A2853: Operating width: 1250 mm Operating width: 1000 mm Total width: 1420 mm Total width: 1170 mm Height: 670 mm Height: 670 mm Length: 1400 mm Length: 1400 mm Weight: 250 kg Weight: 210 kg Amount of flails:...
- Page 4 Stage 3: • • • • Lift the boom a little so that the attachment lifts off of the ground. • • • • Pull the boom control lever to the left so that the lower edge of the attachment coupling plate turns into the attachment.
- Page 5 Coupling the attachment to a 200 series loader happens as follows: Stage 1: • • • • Lift up the locking pin and turn it backward so that it remains in the locked up position. • • • • Make sure that the pin remains in the up position, otherwise you cannot couple the attachment properly! Stage 2:...
- Page 6 5.2 Connecting the hydraulic couplings Coupling the 500 series loader The flail mower has three hydraulic quick couplings, which should be attached to the corresponding couplings in the loader. There are two male couplings and one female coupling in the mower. The loader has correspondingly one male coupling and two female couplings.
- Page 7 Coupling the 200 series loader The mower has three hydraulic quick couplings, which should be attached to the corresponding couplings in the loader. There are two male couplings and one female coupling in the mower. The loader has correspondingly one male coupling and two female couplings.
- Page 8 If the flails start to rotate in the wrong direction when the loader’s auxiliary hydraulics pedal is pressed down to its locked position, please change the coupling of the return- and pressure hose. See picture 3 Picture 3 Make sure that the hydraulic hoses do not get overstretched in any boom or attachment plate position and are not in a position where they can be trapped during the operation of the machine and attachment.
- Page 9 Picture 4 If your loader is equipped with boom floating you should switch it on as well. Loaders boom floating releases the boom so that it can move freely up and down. This allows the flail mower to move even more in case the brushed ground is uneven. The boom floating is switched on from its control lever in the loaders foot well.
- Page 10 7. General instructions After the flail mower is attached to the loader’s quick attachment plate and the hydraulic couplings are attached you are ready for work. Before turning the mower on, make sure that there are no bystanders in the working area. Turning the auxiliary hydraulics lever right to its lock position turns the mower on (In 200 series press the auxiliary hydraulics pedal down to its lock position) When you are working with the flail mower you should keep the engine revolutions at...
- Page 11 (Product number A21030 for 1250 mm wide) (Product number A2853 for 1000 mm wide) During the first year of operation Avant Tecno Oy warrants to replace any part or repair any defect, which may occur, subject to the terms below: 1.
