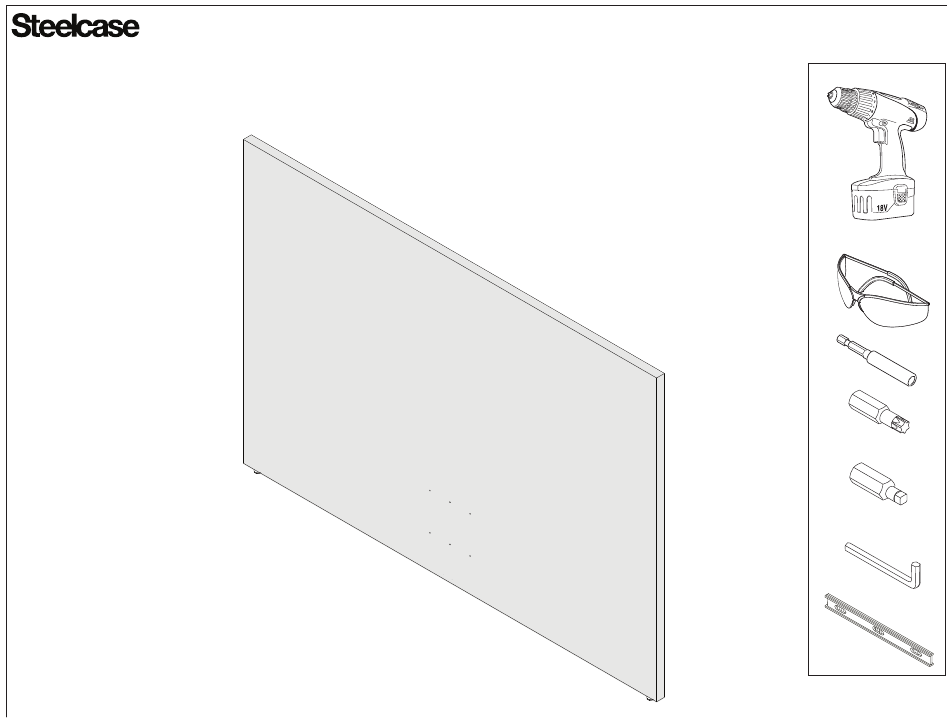

- Page 1 ® Migration SE Boundary Screen ™ #2 SQUARE 5/32” 888.STEELCASE (888.783.3522) www.steelcase.com © 2020 Steelcase Inc. Grand Rapids, MI 49501 Page 1 of 5 U.S.A. 149905 Rev A...
- Page 2 ® Dual Sided For Dual-sided Benches 1) Assemble the mounting bracket using (3) M6 buttonhead thread forming screws (provided). Attach the mounting bracket to underside of the cross-tube weldment. TIP: Bracket is centered on dual sided applications 2a) Use a level to check the vertical orientation. 2b) Loosen (6) buttonhead screws using a 5/32"...
- Page 3 ® Single Sided For Single-sided Benches: Tip: Locate the center slot of the bracket to the M6 threaded hole closest to the column. When located correctly there will be 3 unused M6 tapped holes near the closed end of the cross tube (see Single Sided Bottom View).
- Page 4 ® CAUTION: Failure to observe this procedure could result in injury. Boundary screen is heavy & must be held in place firmly until attachment is complete to prevent the screen from falling. Attach the Boundary Screen Note: If not installed, install screen leveler glides prior to step 4. 5a) Position boundary screen against bracket and check for alignment of the pilot holes (6X), 5b) Adjust the screen leveler glides, if necessary, to match the pilot hole pattern to slots in bracket, 5c)
- Page 5 ® Install Trim 6a) Flex sides of trim cover open to overlap mounting bracket. 6b) engage “V-tabs” to slots, then 5c) push cover tight to boundary screen. Page 5 of 5 149905 Rev A...
