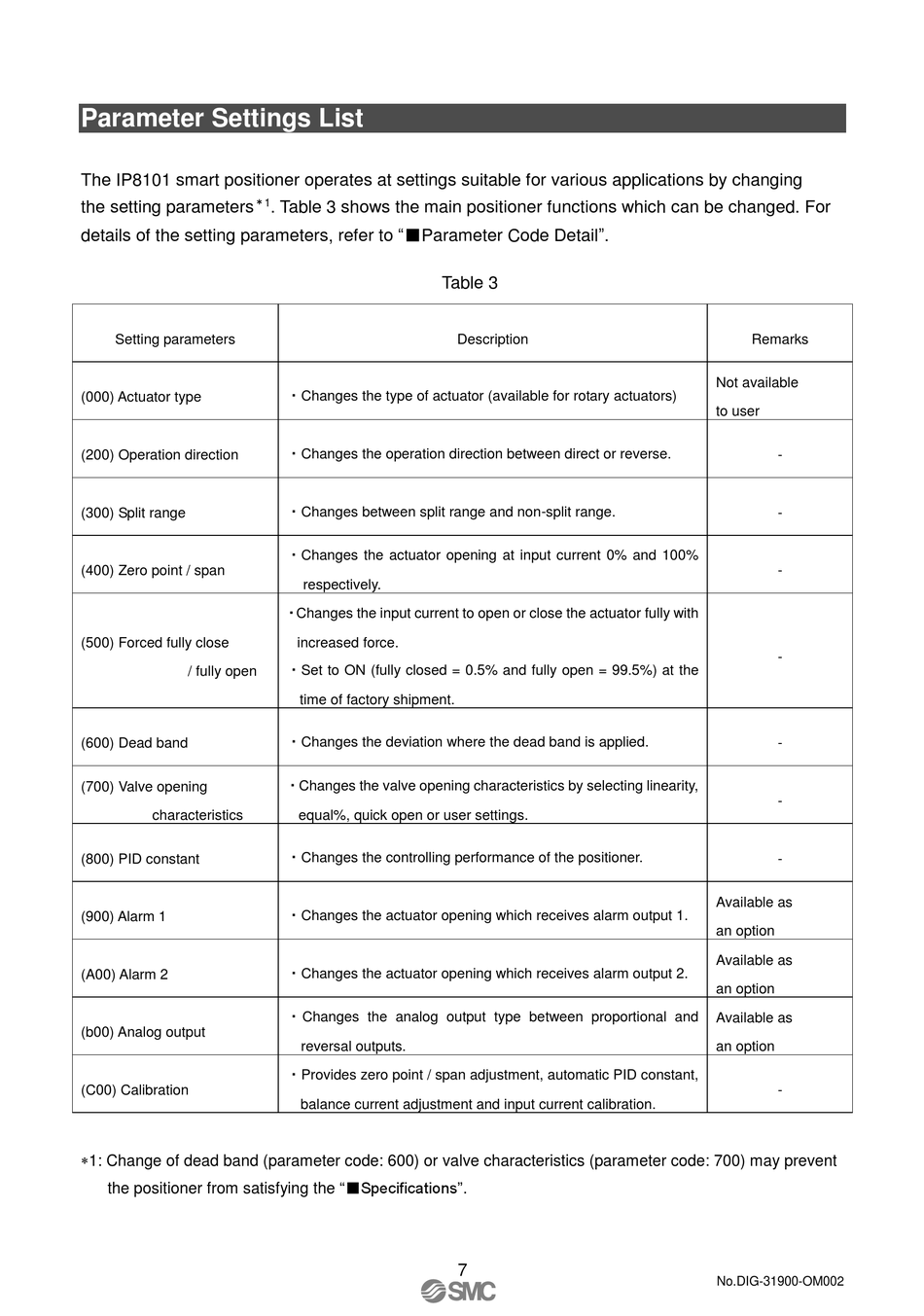

Parameter Settings List
The IP8101 smart positioner operates at settings suitable for various applications by changing
*
the setting parameters
details of the setting parameters, refer to "■Parameter Code Detail".
Setting parameters
(000) Actuator type
(200) Operation direction
(300) Split range
(400) Zero point / span
(500) Forced fully close
/ fully open
(600) Dead band
(700) Valve opening
characteristics
(800) PID constant
(900) Alarm 1
(A00) Alarm 2
(b00) Analog output
(C00) Calibration
1: Change of dead band (parameter code: 600) or valve characteristics (parameter code: 700) may prevent
the positioner from satisfying the "■Specifications".
1
. Table 3 shows the main positioner functions which can be changed. For
・Changes the type of actuator (available for rotary actuators)
・Changes the operation direction between direct or reverse.
・Changes between split range and non-split range.
・Changes the actuator opening at input current 0% and 100%
respectively.
・Changes the input current to open or close the actuator fully with
increased force.
・Set to ON (fully closed = 0.5% and fully open = 99.5%) at the
time of factory shipment.
・Changes the deviation where the dead band is applied.
・Changes the valve opening characteristics by selecting linearity,
equal%, quick open or user settings.
・Changes the controlling performance of the positioner.
・Changes the actuator opening which receives alarm output 1.
・Changes the actuator opening which receives alarm output 2.
・Changes the analog output type between proportional and
reversal outputs.
・Provides zero point / span adjustment, automatic PID constant,
balance current adjustment and input current calibration.
Table 3
Description
7
Remarks
Not available
to user
-
-
-
-
-
-
-
Available as
an option
Available as
an option
Available as
an option
-
No.DIG-31900-OM002
