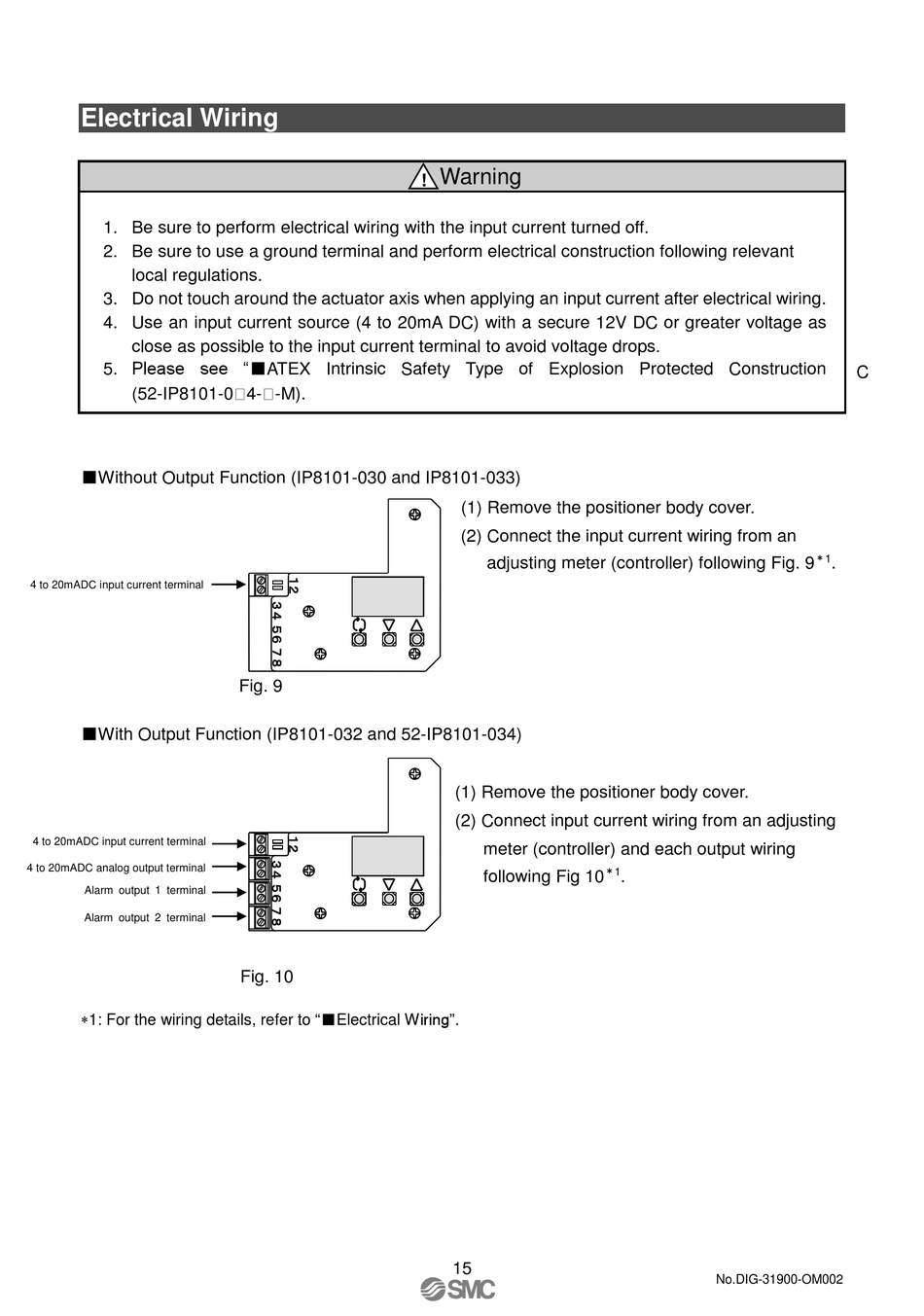

Electrical Wiring

1. Be sure to perform electrical wiring with the input current turned off.
2. Be sure to use a ground terminal and perform electrical construction following relevant
local regulations.
3. Do not touch around the actuator axis when applying an input current after electrical wiring.
4. Use an input current source (4 to 20mA DC) with a secure 12V DC or greater voltage as
close as possible to the input current terminal to avoid voltage drops.
5. Please see "■ATEX Intrinsic Safety Type of Explosion Protected Construction
(52-IP8101-0 4- -M).

■Without Output Function (IP8101-030 and IP8101-033)

4 to 20mADC input current terminal

■With Output Function (IP8101-032 and 52-IP8101-034)

4 to 20mADC input current terminal
4 to 20mADC analog output terminal
Alarm output 1 terminal
Alarm output 2 terminal
1: For the wiring details, refer to "■Electrical Wiring".
Fig. 9
Fig. 10
Warning
!
(1) Remove the positioner body cover.
(2) Connect the input current wiring from an
adjusting meter (controller) following Fig. 9
(1) Remove the positioner body cover.
(2) Connect input current wiring from an adjusting
meter (controller) and each output wiring
following Fig 10
15
＊
1
.
No.DIG-31900-OM002
