■Fork Lever-Type Fitting

Since the IP8101 has two means of being mounted, two different kinds of fork lever-type fittings are

provided, which are mounted in different ways, depending on the bracket mounting method.

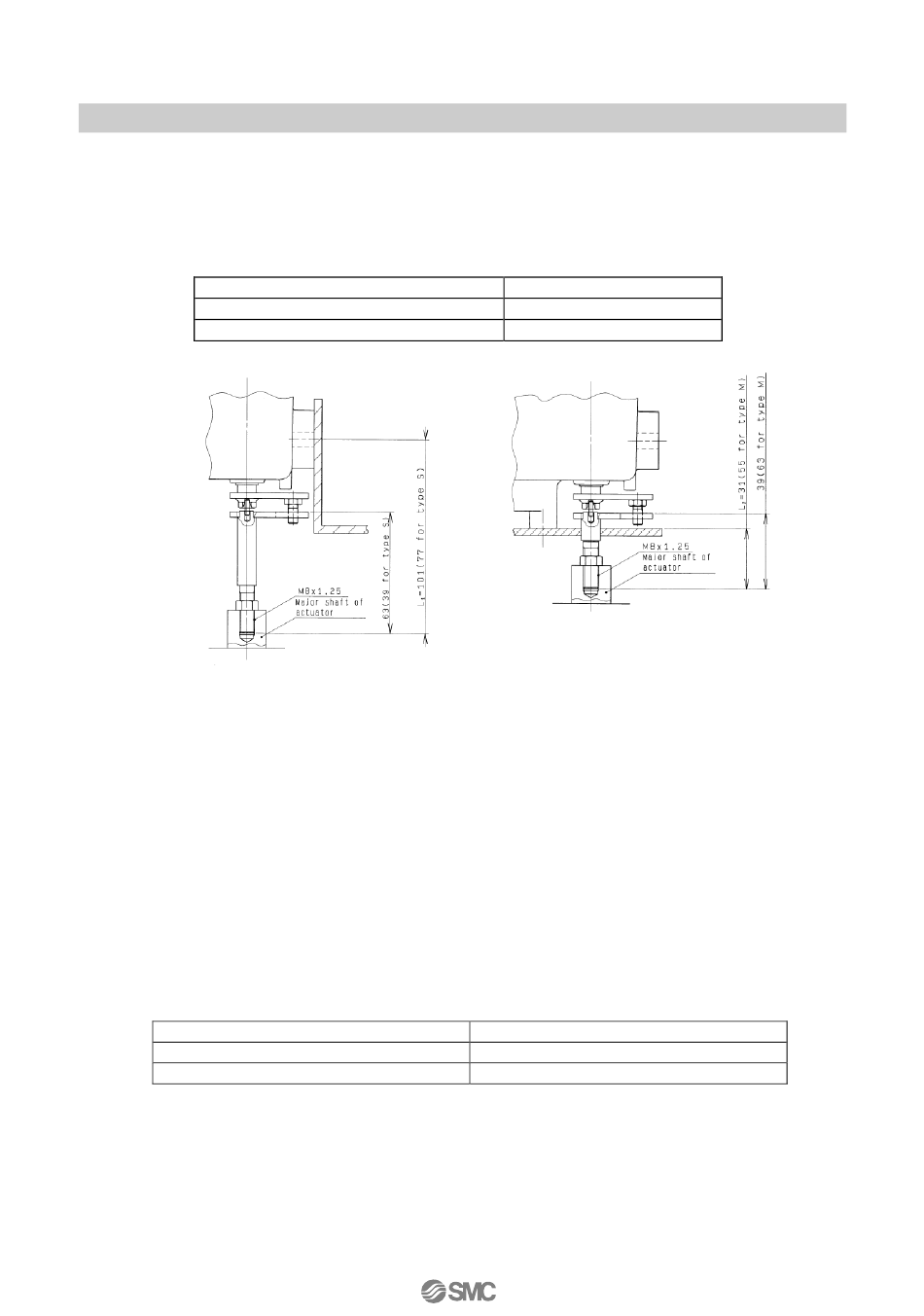

Example of side mounting using fork

lever-type fitting M

For side mounting, the mounting dimensions of fork lever-type fitting M can be adjusted to be

interchangeable with IP610. For back mounting, the mounting dimensions of fork lever-type fitting S

can be adjusted to be interchangeable with IP610.

■Body cover

2 types of body cover unit can be selected. These can be ordered for replacement.

Cover with window to check LCD is optional.

LCD check window

No window(Standard)

With window(Option)

Description

Fork lever-type fitting M

Fork lever-type fitting S

Table 4

Part no.

P368010-24

P368010-25

Example of back mounting using fork

lever-type fitting S.

Fig. 8

Table 5

Part No.

P565010-308

P565010-327

No.DIG-31900-OM002
