4.8 four point eight

Montage Tische quadratisch & rund

Assembly tables square & round

Notice de montage Table carré & rond

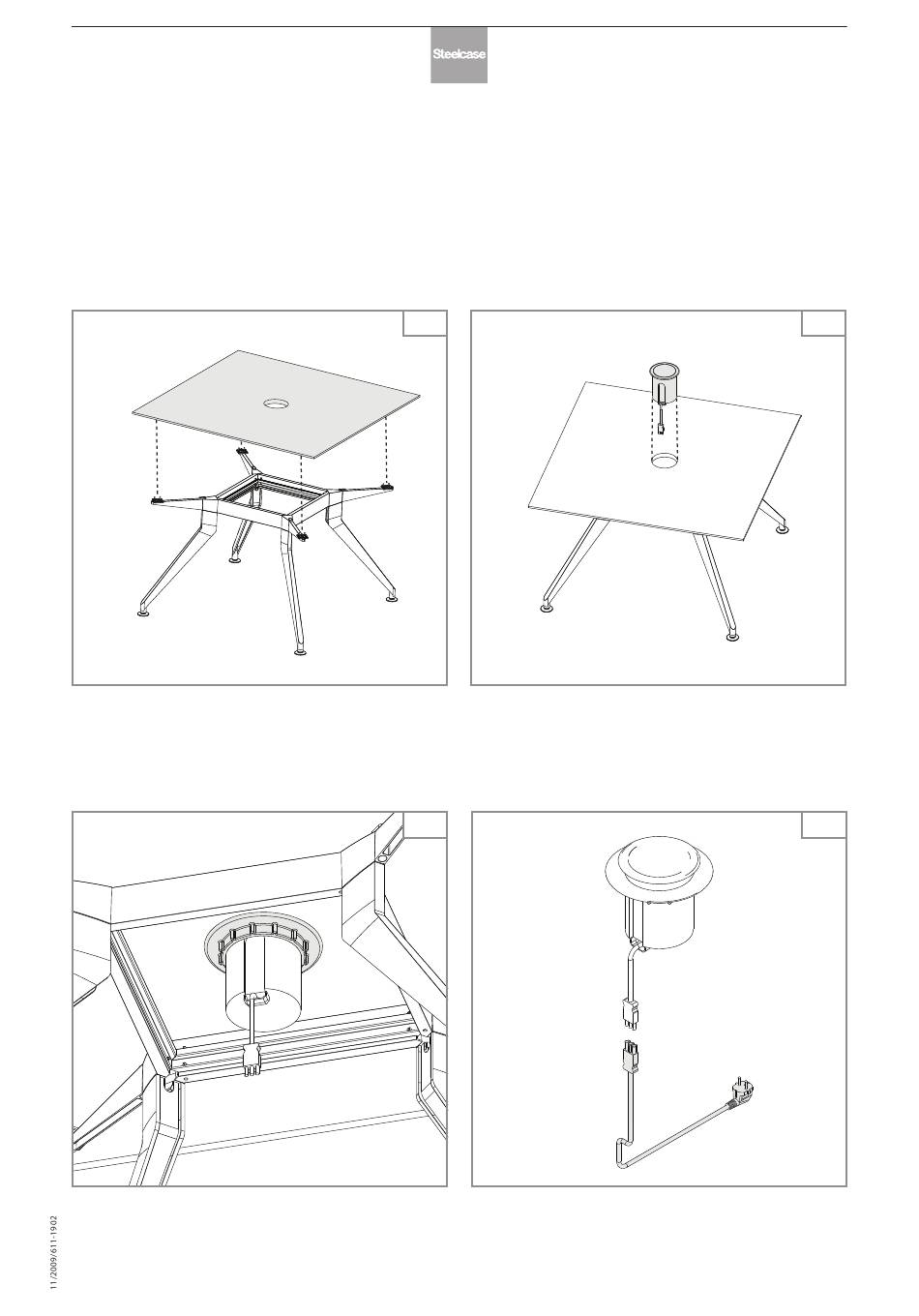

Platte positionieren und an Plattenverbindern festschrauben

Position top and screw top to top adapters

Positionner le plateau et le visser sur les adaptateurs

PowerTower festschrauben

Screw PowerTower

Visser le PowerTower

1.6

3.0

1.8

PowerTower mit Kabel verbinden

Connect PowerTower with cables

Brancher le câble d'alimentation sur le PowerTower

3/3

PowerTower einsetzen

Position PowerTower

Monter le PowerTower

1.7

1.9
