Visual – acoustic siren

Advertisement

1. General

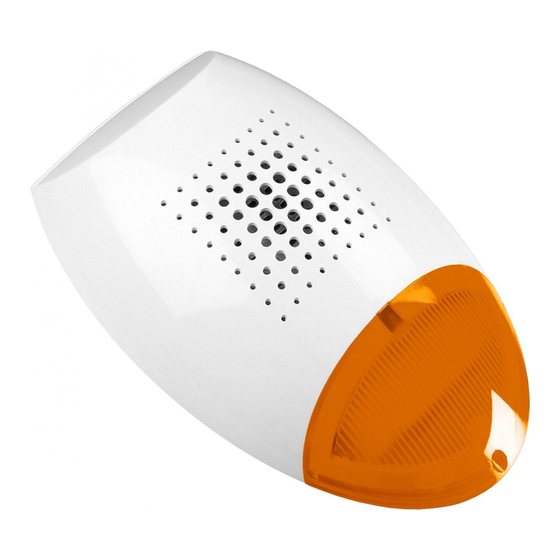

The SD-3001 outdoor visual-acoustic siren is designed for use in burglary and assault signaling
systems. The signaling function is performed in two ways: visually (by red color lamp blinking)
and acoustically (by a modulated, high-volume sound signal). A xenon lamp (flash) is the source of
light, while the sound signal is generated by means of a magnetodynamic transducer. The design of
the siren housing, as well as the inner enclosure made from galvanized sheet, ensure a high degree
of tampering protection (against opening, tearing off from the base, etc.). The electronics board is
made in Surface Mount Technology (SMT) and protected by impregnation against unfavorable effects
of weather conditions, thus ensuring high reliability of the equipment. The SD-3001 external housing
is made of the highly impact resistant PC LEXAN polycarbonate, hence it features a high mechanical
strength and guarantees aesthetic
The mechanical tamper switch can be replaced with a hermetic reed-relay switch. This enables the
tamper protection to be customized. The reed-relay switch is not included in the standard outfit of the
siren (i.e. it is sold separately).

2. Installation

mounting holes
water drain hole
In order to use the reed relay switch, it is necessary to dismount the mechanical switch installed by
the manufacturer on the „S" element and replace it with the new switch. This operation requires
resoldering of two wires which connect the switch with the siren electronics.
The SD-3001 siren should be mounted on a flat base in a location as inaccessible as possible to
minimize the tampering risk. The siren is to be attached to the base by means of screws and
expansion bolts.
Note: It is necessary to keep a clearance of approx. 0.5 cm between the upper edge of siren housing
and the ceiling or other obstacle limiting the mounting position from above. The lack of such
clearance can make the mounting of housing difficult.
VISUAL – ACOUSTIC SIREN
®
SIREN
PCB
DO NOT PLUG !!!

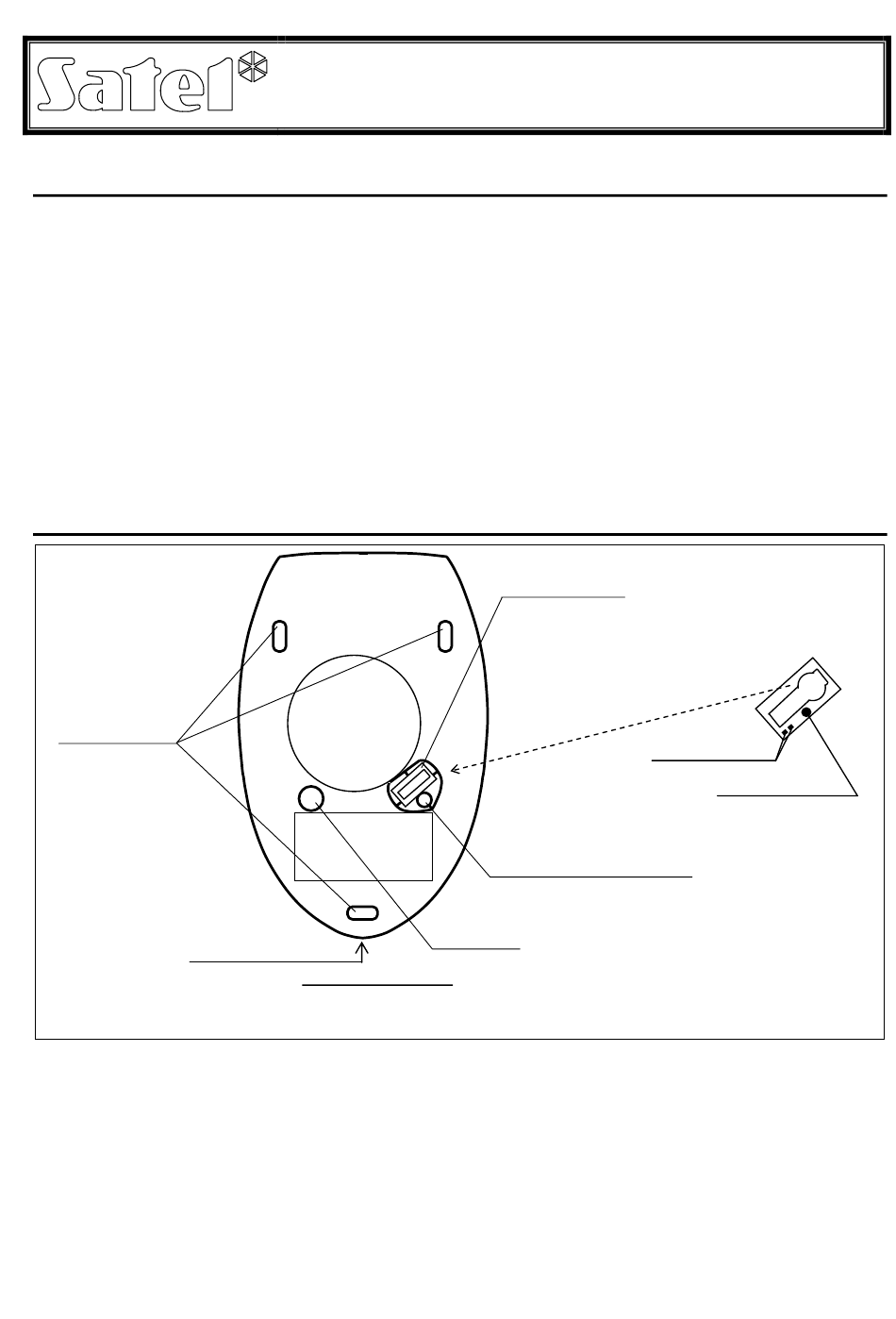

Figure 1. View of the siren housing (back part).
SD-3001
tamper circuit „S"
element
„S" element mounting hole
cable entry
sd3001_e 11/05
Reed relay
switch
soldering points
mounting screw

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SD-3001 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Satel SD-3001

  • Page 1 The SD-3001 siren should be mounted on a flat base in a location as inaccessible as possible to minimize the tampering risk. The siren is to be attached to the base by means of screws and expansion bolts.
  • Page 2 The way of activating the SD-3001 siren is different from that of the SD-3000 unit (read carefully the text below). The SD-3001 siren can operate with any source of alarm signal. The circuits for acoustic and visual signaling have separate control inputs. The acoustic signaling is controlled by the STA input, while the visual signaling - by the STO input.
  • Page 3 OC w centrali (zwarte do masy, gdy jest nieaktywne) Figure 2. Connection of siren to CA-10 control panel manufacture by SATEL with the use of low voltage OUT5 and OUT6 outputs or to CA-5 with OUT4 and OUT5.
  • Page 4 Sound intensity level......................approx. 120dB Operating temperature ....................-35 o C ÷ +60 o C Dimensions........................300x195x97mm Weight (without battery) ........................1.15kg SATEL sp. z o.o. The latest EC declaration of tel. (+48 58) 320 94 00 ul. Schuberta 79 conformity and certificates are info@satel.pl...
