Setting / Adjustment

■Procedure

1. Insert the batteries in place.
2. Connect the ground wire.
Connect the ground wire to a place where is connected to an external protective earthling system.

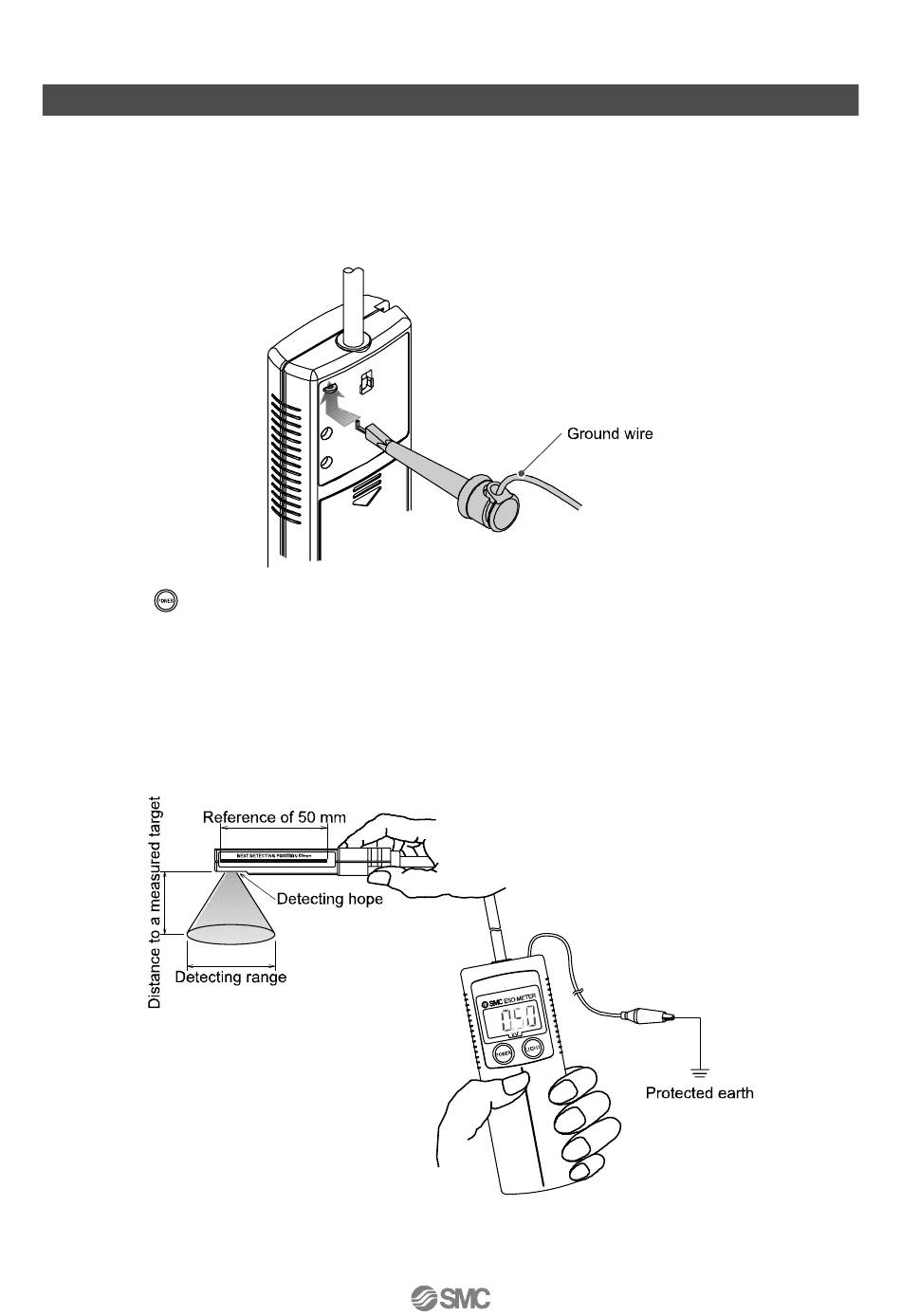

The place where the ground wire is to be connected is as shown below.
3. Press the .
4. Get the sensor close to the position 50 mm away from the measured target.
Gradually bring the sensor closer to the measured target from a distance, and stop measurement
immediately if the displayed value indicates overflow (HHH) or underflow (LLL).
(The target has a high charged potential that is highly dangerous. The measured value does not change
even if the distance is shortened.)
5. Check the display.
∗: The detecting range of the sensor is 180 mm (at the best measurement distance of 50 mm).
-10-
No.SFOD-OML0002-A
