GeoVision GV-3D People Counter V2 User Manual page 13

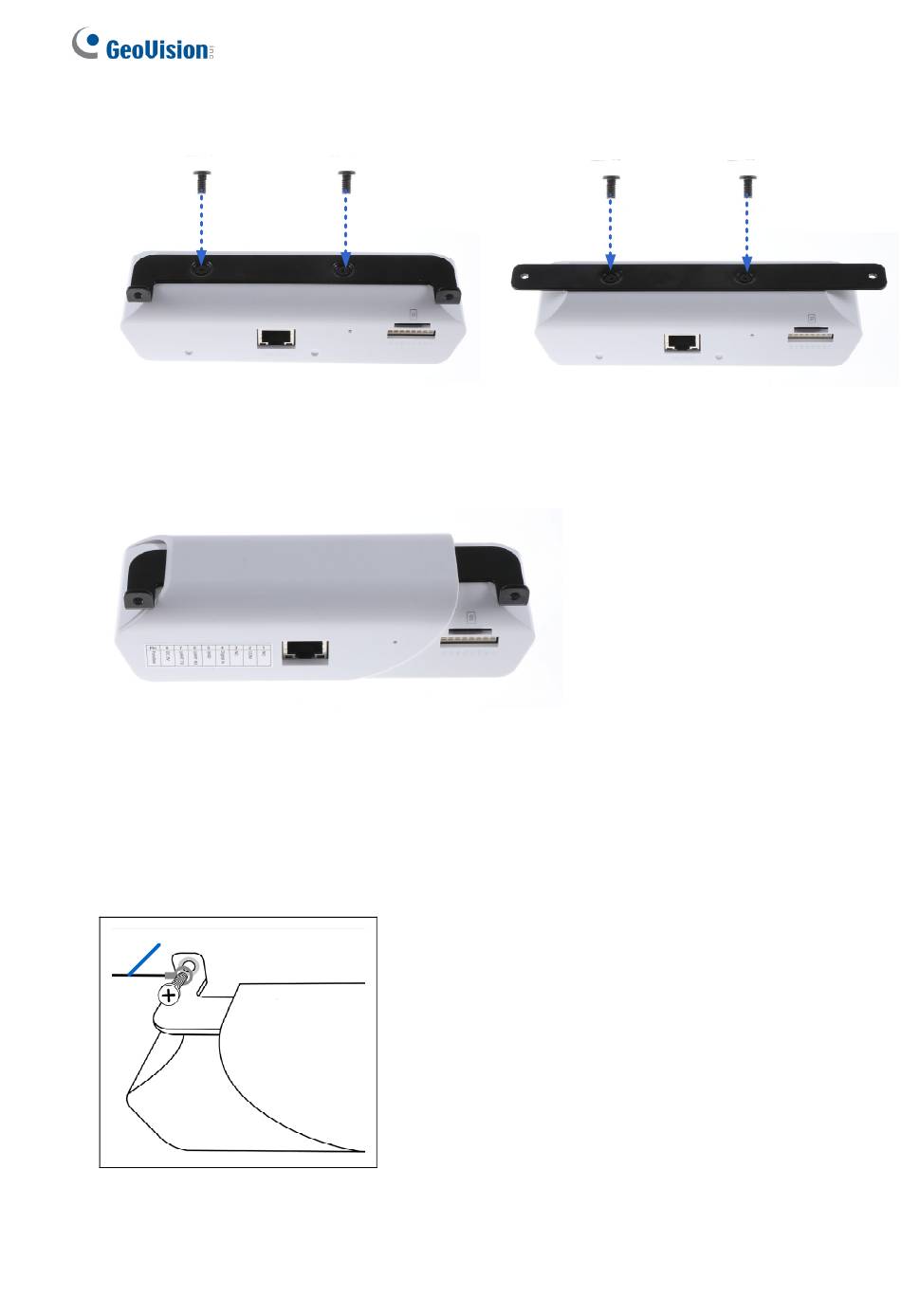

2. Secure the desired mounting kit to the designated position with 2 screws.
Figure 2-4
3. Put the outer case back.
Figure 2-5
4. Put the installation sticker to the wall with the arrow pointing up.
5. Drill 2 holes according to the sticker and insert the 2 screw anchors to the 2 holes.
6. Secure the the GV-3D People Counter V2 to the wall with 2 long screws.
7. Optionally install the ground wire with the screw as shown below:
Ground Wire
Figure 2-6
8
