Wiring Diagrams - Advantage Controls 200 Series Manual

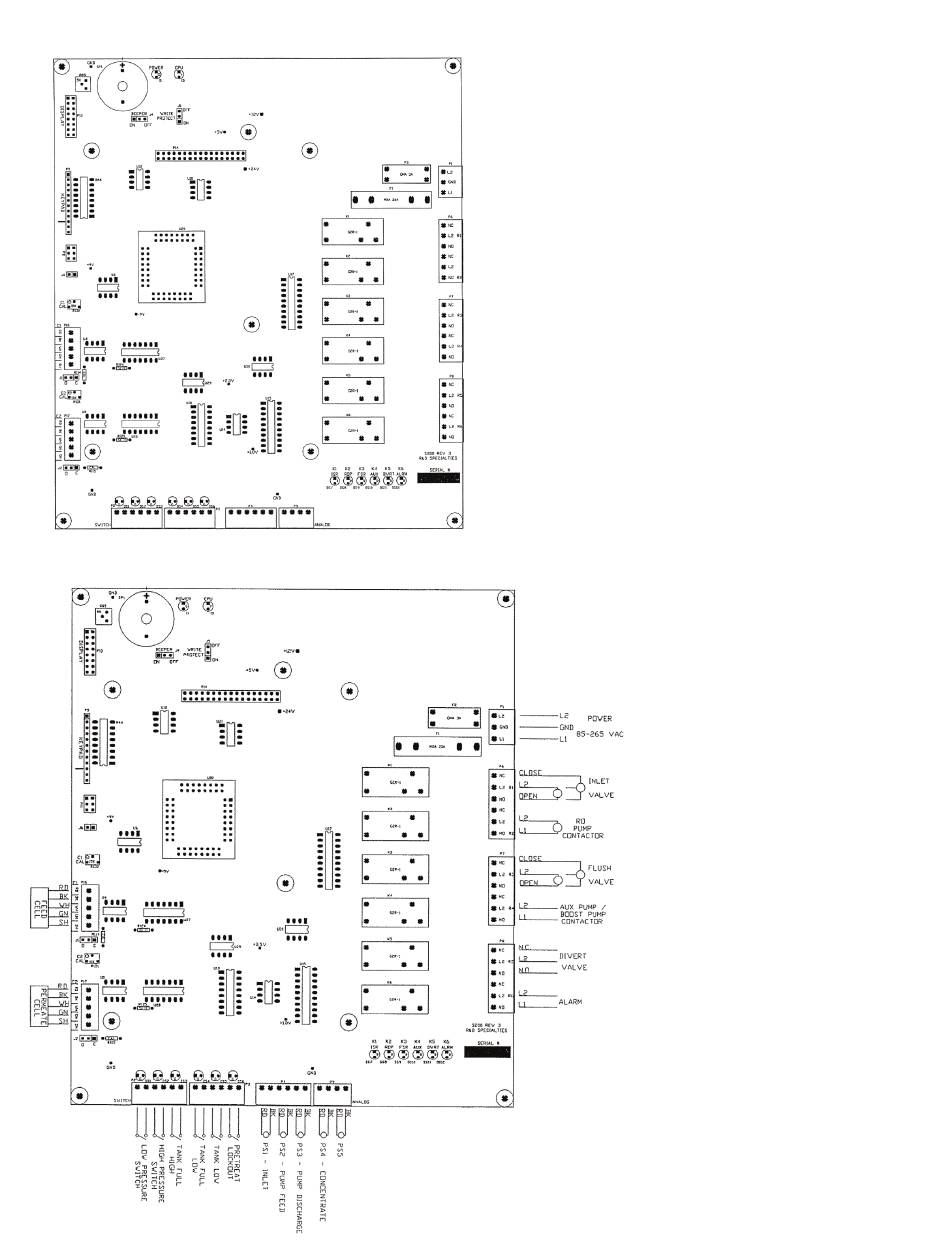

Terminal Strips and Connectors
Jumper and Adjustment Locations
NOTES:
1. High voltage wiring should not be run in the
same conduit as sensor and control wiring.
2. The switch inputs are dry contact only. Connecting
power to these inputs will damage the controller.
3. The supply voltage to the board is the voltage
that is output from the relays.
