PDQ GTS Installation Instructions

Passivebolt powered cylindrical lock

Advertisement

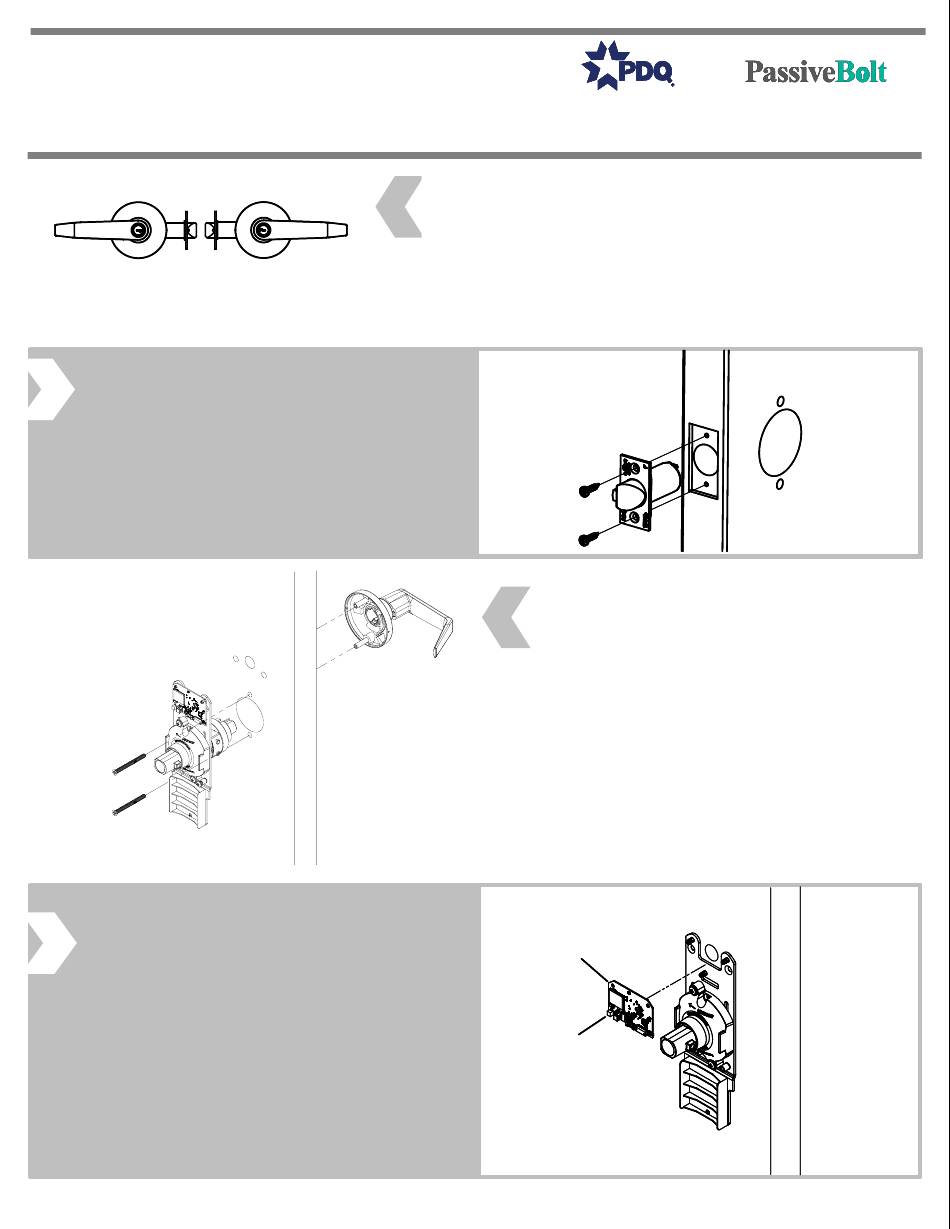

GTS INSTALLATION INSTRUCTION
PASSIVEBOLT POWERED CYLINDRICAL LOCK
LH/LHR
2. PREPARE DOOR &
INSTALL LATCH
▪ Prepare door according to template.
▪ Install latch, radius toward door frame
▪ Secure with (2) #8 combo screws.
4. CAREFULLY REMOVE LOCK
CONTROL MODULE (LCM)
• Disconnect battery connector from LCM
• Remove LCM by pulling board off standoffs
• Place removed LCM on a piece of
cardboard

1. CHECK HANDING OF LOCK

• If handing of lock is not correct for opening, see next
page for handing instructions.
RH/RHR
For Mechanical Concerns:
For Mechanical Concerns:
Phone: 866-874-3662
Phone: 866-874-3662
www.pdqlocks.com
www.pdqlocks.com
3. INSTALL CHASSIS AND
OUTSIDE TRIM
• Install chassis assembly from inside of
door.
• Install outside trim assembly.
• Secure with (2) flat head screws (thru
bolts).
LCM
LCM
BATTERY
BATTERY
CONNECTOR
CONNECTOR
For Electrical Concerns:
For Electrical Concerns:
Email: support@passivebolt.com
Email: support@passivebolt.com
www.PassiveBolt.com
www.PassiveBolt.com
PB-9703 Rev0 – 12-1-22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GTS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PDQ GTS

  • Page 1 GTS INSTALLATION INSTRUCTION For Mechanical Concerns: For Mechanical Concerns: For Electrical Concerns: For Electrical Concerns: PASSIVEBOLT POWERED CYLINDRICAL LOCK Phone: 866-874-3662 Phone: 866-874-3662 Email: support@passivebolt.com Email: support@passivebolt.com www.pdqlocks.com www.pdqlocks.com www.PassiveBolt.com www.PassiveBolt.com 1. CHECK HANDING OF LOCK • If handing of lock is not correct for opening, see next page for handing instructions.
  • Page 2 GTS INSTALLATION INSTRUCTION READER READER 5. INSTALL READER WIRE WIRE ASSEMBLY • Install housing from outside of door READER READER ASSEMBLY ASSEMBLY • Route wires through door • Do not pinch wires FLAT HEAD FLAT HEAD SCREWS SCREWS • Secure with (2) flat head screws •...
