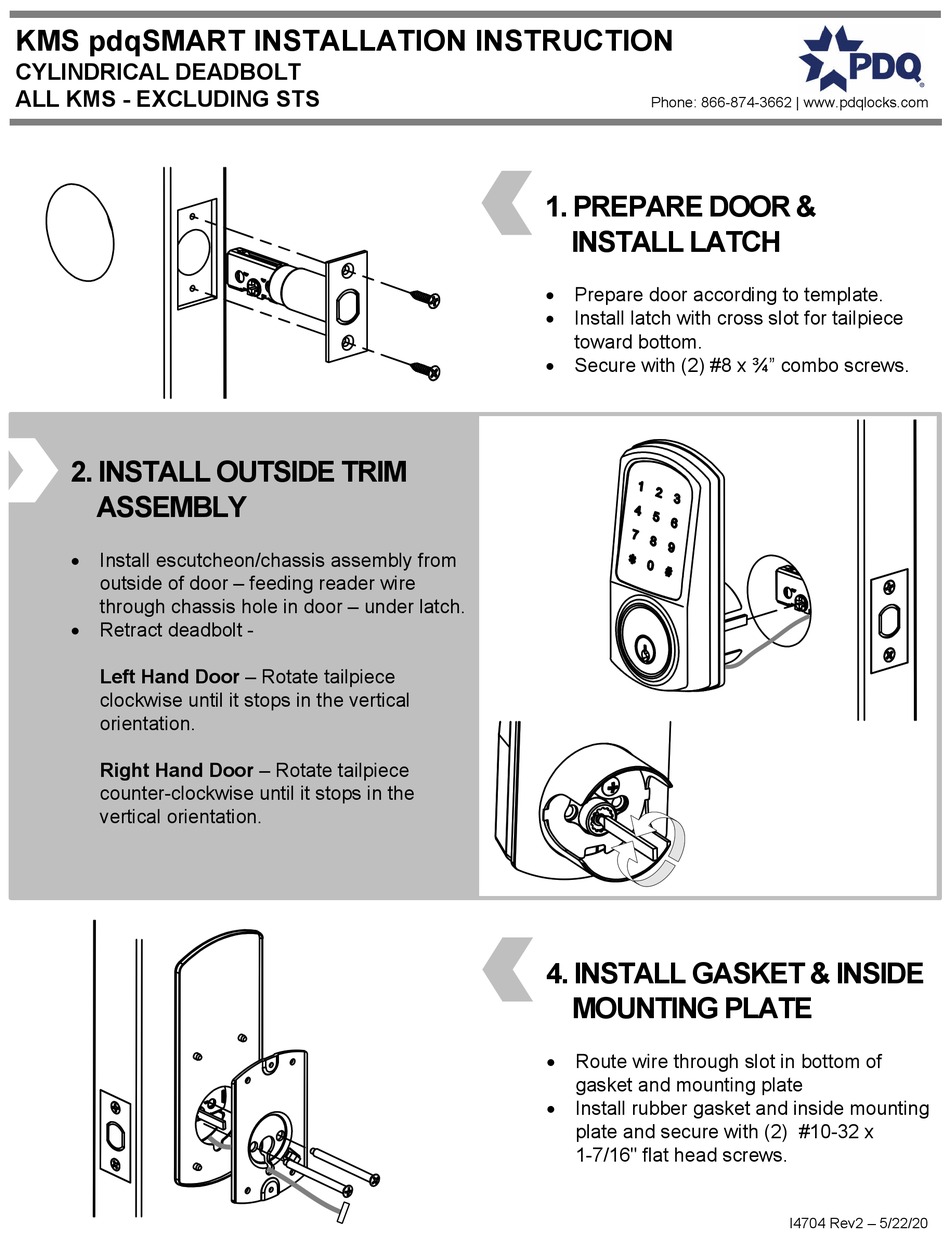

KMS pdqSMART INSTALLATION INSTRUCTION
CYLINDRICAL DEADBOLT
ALL KMS - EXCLUDING STS
2. INSTALL OUTSIDE TRIM
ASSEMBLY
Install escutcheon/chassis assembly from
outside of door – feeding reader wire
through chassis hole in door – under latch.
Retract deadbolt -
Left Hand Door – Rotate tailpiece
clockwise until it stops in the vertical
orientation.
Right Hand Door – Rotate tailpiece
counter-clockwise until it stops in the
vertical orientation.
Phone: 866-874-3662 | www.pdqlocks.com
1. PREPARE DOOR &
INSTALL LATCH
Prepare door according to template.
Install latch with cross slot for tailpiece
toward bottom.
Secure with (2) #8 x ¾" combo screws.
4. INSTALL GASKET & INSIDE
MOUNTING PLATE
Route wire through slot in bottom of
gasket and mounting plate
Install rubber gasket and inside mounting
plate and secure with (2) #10-32 x
1-7/16" flat head screws.
I4704 Rev2 – 5/22/20
