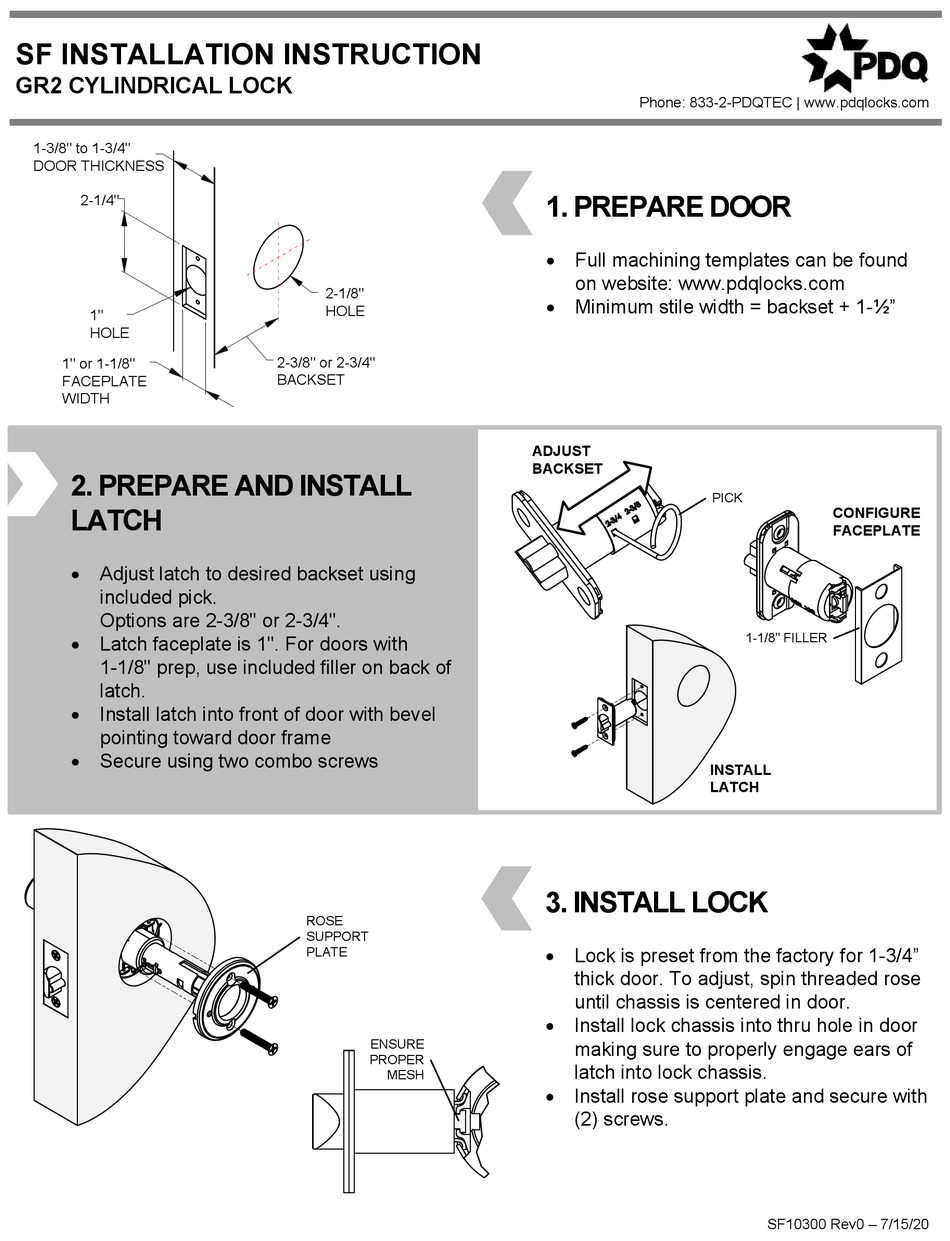

SF INSTALLATION INSTRUCTION
GR2 CYLINDRICAL LOCK
1-3/8" to 1-3/4"
DOOR THICKNESS
2-1/4"
1"
HOLE
1" or 1-1/8"
FACEPLATE
WIDTH
2. PREPARE AND INSTALL
LATCH
 Adjust latch to desired backset using
included pick.
Options are 2-3/8" or 2-3/4".
 Latch faceplate is 1". For doors with
1-1/8" prep, use included filler on back of
latch.
 Install latch into front of door with bevel
pointing toward door frame
 Secure using two combo screws
2-1/8"
HOLE
2-3/8" or 2-3/4"
BACKSET
ROSE
SUPPORT
PLATE
ENSURE
PROPER
MESH
Phone: 833-2-PDQTEC | www.pdqlocks.com

1. PREPARE DOOR

 Full machining templates can be found
on website: www.pdqlocks.com
 Minimum stile width = backset + 1-½"
ADJUST
BACKSET
INSTALL
LATCH

3. INSTALL LOCK

 Lock is preset from the factory for 1-3/4"
thick door. To adjust, spin threaded rose
until chassis is centered in door.
 Install lock chassis into thru hole in door
making sure to properly engage ears of
latch into lock chassis.
 Install rose support plate and secure with
(2) screws.
PICK
CONFIGURE
FACEPLATE
1-1/8" FILLER
SF10300 Rev0 – 7/15/20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GR2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PDQ GR2

  • Page 1 SF INSTALLATION INSTRUCTION GR2 CYLINDRICAL LOCK Phone: 833-2-PDQTEC | www.pdqlocks.com 1-3/8" to 1-3/4" DOOR THICKNESS 2-1/4" 1. PREPARE DOOR  Full machining templates can be found on website: www.pdqlocks.com 2-1/8"  Minimum stile width = backset + 1-½” HOLE 1"...
  • Page 2 SF INSTALLATION INSTRUCTION GR2 CYLINDRICAL LOCK 4. INSTALL ROSE AND LEVER  Install rose – ensure indents on side of rose align with slots in rose support.  Install lever by pushing on to spindle until clip engages with lever.
