PDQ KMS Installation Instructions

Passivebolt powered deadbolt

Advertisement

Quick Links

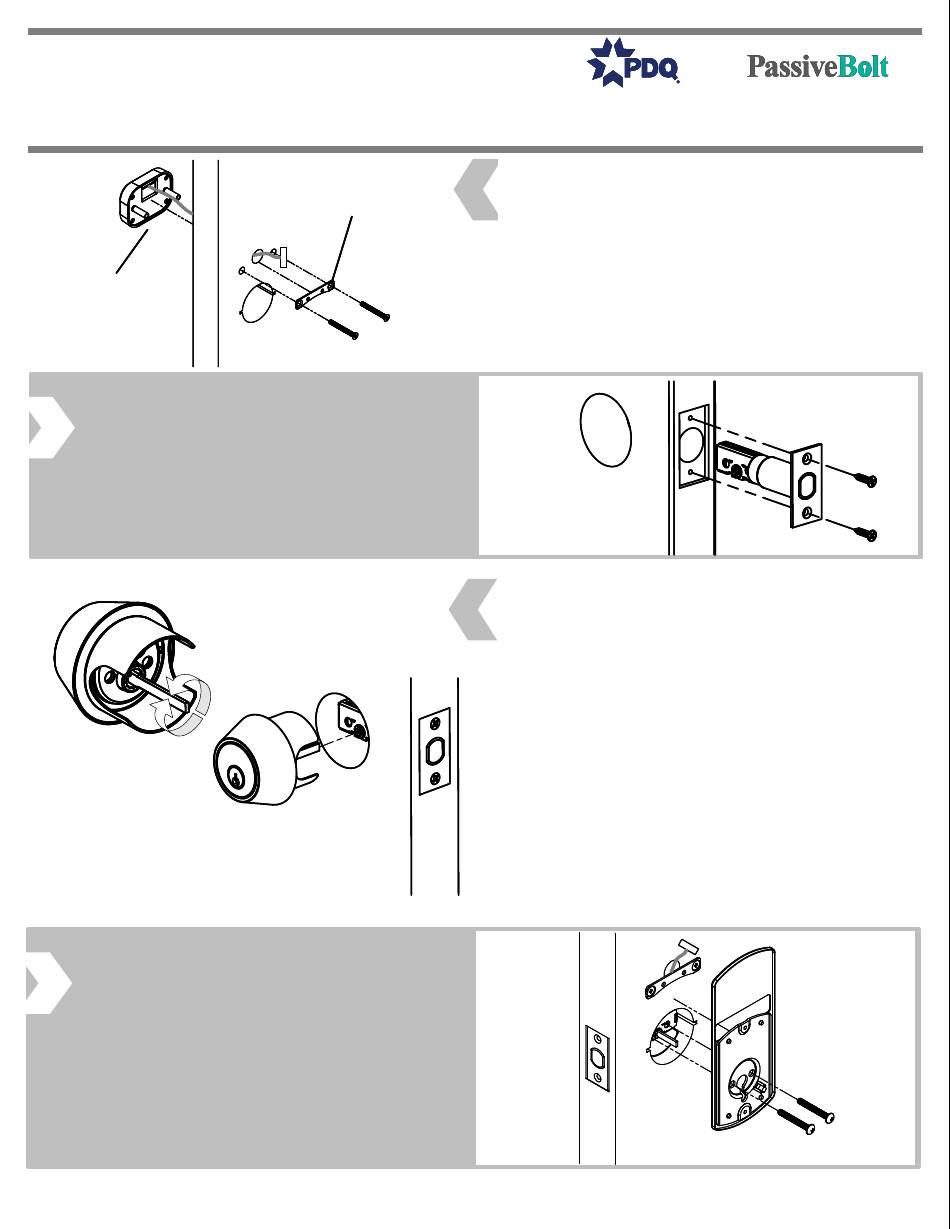

KMS INSTALLATION INSTRUCTION
PASSIVEBOLT POWERED DEADBOLT
READER
READER
READER
ASSEMBLY
ASSEMBLY
ASSEMBLY
2. INSTALL LATCH
• Install latch with cross slot for tailpiece
toward bottom.
• Secure with (2) #8 x ¾" combo screws.
4. INSTALL GASKET & INSIDE
MOUNTING PLATE
• Install rubber gasket and inside mounting
plate and secure with (2) pan head
screws.
1. PREPARE DOOR &
INSTALL READER ASSEMBLY
MOUNTING
MOUNTING
MOUNTING
PLATE
PLATE
PLATE
• Prepare door according to template.
• Install reader assembly
• Route wires through door - Do not pinch wires
• Install mounting plate
• Secure with (2) flat head screws.
2. INSTALL CYLINDER
ASSEMBLY
• Install deadbolt assembly from outside of
door.
• Retract deadbolt -
Left Hand Door – Rotate tailpiece
clockwise until it stops in the vertical
orientation.
Right Hand Door – Rotate tailpiece
counter-clockwise until it stops in the
vertical orientation.
For Mechanical Concerns:
For Mechanical Concerns:
Phone: 866-874-3662
Phone: 866-874-3662
Email: support@passivebolt.com
Email: support@passivebolt.com
www.pdqlocks.com
www.pdqlocks.com
For Electrical Concerns:
For Electrical Concerns:
www.PassiveBolt.com
www.PassiveBolt.com
PB-9705 Rev0 – 12-1-22
