OMNEO Configuration

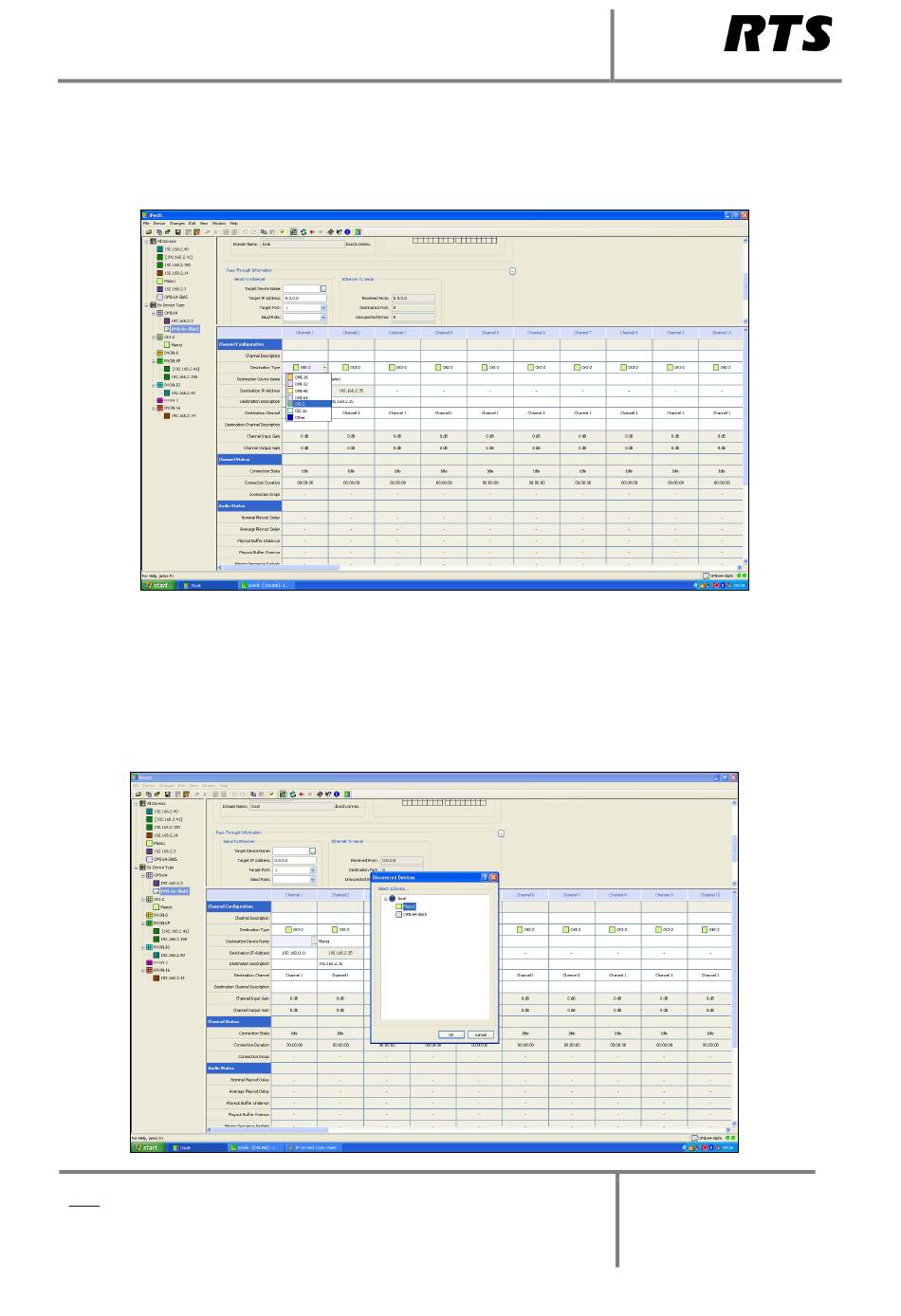

12. To configure the OMI card to connect to an OKI device highlight your OMI device from the
Catalog on the left. Select the appropriate channel from the channel columns in the middle of
the screen. Click the Destination Type down arrow and from the dropdown list select OKI-2.
13. Click the Destination Device Name field for your channel and then click the [...] button.
Double-click .local and select your OKI device name from the list. This is why it is important to
configure a device name (the system will suffix incremental numbers against device names if
they are the same) as devices are discovered and configured via this, not IP addresses as
previously used with RVON products. The IP Address and Destination Description fields will
automatically populate.
Notes
If you only enter an IP address in the Destination IP Address field without selecting the device name
the OMNEO devices will not establish a connection. The Device Name field must always be populated.
To connect an OKI keypanel to an OMI card you must use Channel 1 on the OKI. Keypanel data is
only provided on Channel 1. Channel 2 is for an auxiliary audio connection.
