RTS KP-12 Installation Instructions Manual

Keypanel kits
Hide thumbs Also See for KP-12:
Table of Contents

Advertisement

Quick Links

See also: Instructions for Using , System Installation Manual

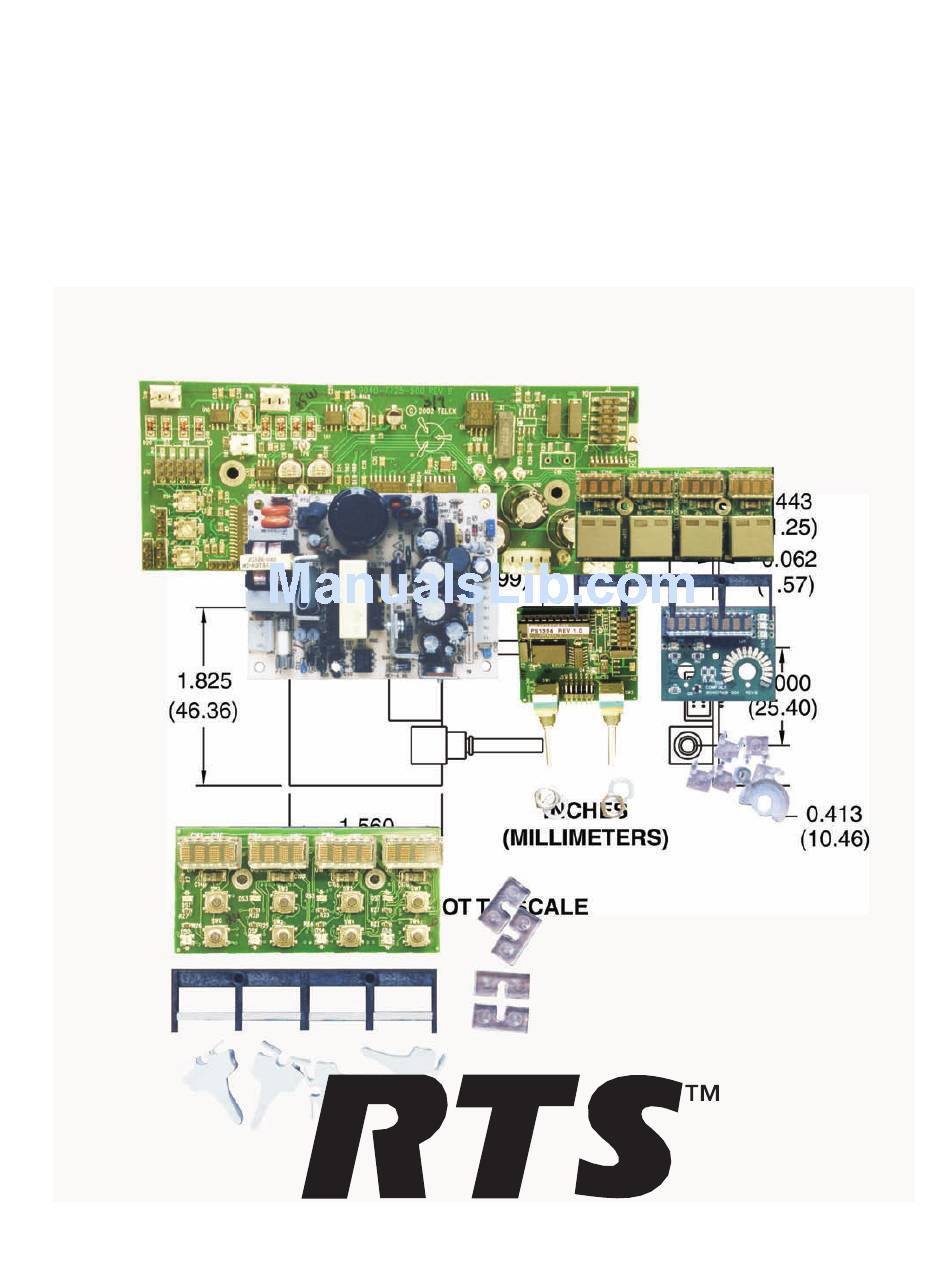

INSTALLATION INSTRUCTIONS

KP-12 KEYPANEL KITS
9330-7497-003 Rev B
05/2004

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KP-12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RTS KP-12

Summary of Contents for RTS KP-12

  • Page 1: Installation Instructions

    INSTALLATION INSTRUCTIONS KP-12 KEYPANEL KITS 9330-7497-003 Rev B 05/2004...
  • Page 3 COPYRIGHT NOTICE Copyright 2004 by Telex Communications, Inc. All rights reserved. Reproduction in whole or in part without prior written permission from Telex is prohib- ited. UNPACKING AND INSPECTION Immediately upon receipt of the equipment, inspect the shipping container and the contents carefully for any discrepancies or damage.
  • Page 4 Important! Please read this document carefully before using this product. THIS DOCUMENT STATES THE TERMS AND CONDITIONS UPON WHICH TELEX COMMUNICATIONS, INC, (the “COMPANY”) OFFERS TO LICENSE THE INSTALLED SOFTWARE OR PROGRAM (the “SOFT- WARE) FOR USE WITH THE PRODUCT IN WHICH IT WAS INSTALLED. YOU ARE AGREEING TO BECOME BOUND BY THE TERMS OF THIS AGREEMENT.

  • Page 5: Table Of Contents

    1 INTRODUCTION ...6 2 COMPONENTS OF A KP-12 INTERCOM STATION ...6 2.1 Control and Audio Receive PC Board ...7 2.2 Audio Transmit PC Board ...7 2.3 Dual Shaft Encoder and Dual Display PC Boards ...8 2.4 Key Modules ...8 2.5 General Purpose Interface Module GPI) ...9 2.6 Connector Module ...9...

  • Page 6: Introduction

    KP-12; if a custom keypanel will be used as a headset station only, and space is at a premium, the gooseneck microphone connector and the speaker could be eliminated.

  • Page 7: Control And Audio Receive Pc Board

    Control and Audio Receive PC Board This circuit board contains the CPU (central process- ing unit) for the intercom station. It also contains the EPROM (eraseable programmable read-only memory) which defines the keypanel operation and RAM (random access memory) which stores the current configuration information for the keypanel, including the current key assignments and the keypanel’s current address within the intercom...

  • Page 8: Dual Shaft Encoder And Dual Display Pc Boards

    (2.03mm) panel material, this spacing will cause the front surface of the alpha-numeric displays to be just behind the front surface of the front panel. Refer to the KP-12 User Manual for information about the operation of the shaft encoders. Key Modules...

  • Page 9: General Purpose Interface Module Gpi)

    General Purpose Interface Module (GPI) The GPI Board provides a means of controlling external devices from the keypanel and of controlling the keypanel from external devices. The GPI Module contains the following: • two DPDT relays, each with two available pairs of normal-open, normal-closed and common contacts •...

  • Page 10: Power Supply Specifications

    2.9.1 Power Supply Specifications AC Input Voltage: 90 to 260 VAC AC Frequency: 47 to 63 Hz AC Input Current (RMS): 0.8 A at 115 VAC; 0.4 A at 230 VAC DC Outputs: See Table 2 Efficiency: 70% typical at full load Hold-up Time: 16 msec typical at full load and 115 VAC input Overcurrent Protection: All outputs equipped with...

  • Page 11: Kit Parts Lists

    KIT PARTS LISTS KP12-SP Intercom Station Kit with 12 Alpha-Numeric Pushbutton Keys Kit Part Number 9000-7497-003 This kit contains the basic componenets for an intercom station with 12 pushbutton style intercom keys. Items not supplied: case, component mounting hardware, and matrix interconnect cables. KP12-SL Intercom Station Kit with 12 Alpha-Numeric Lever Keys Kit Part Number 9000-7497-004 This kit contains the basic components for an intercom station with 12 lever style intercom keys.

  • Page 12: 3.4 Kpm-P4 Pushbutton Kit, 4 Pushbuttons Without Displays

    Kit Part Number 9000-7497-011 This kit is intended for used with the KPM-BASE-S Kit. Each pushbutton kit adds 4 pushbutton intercom keys. Also order one copy of KP-12 User Instructions, Pushbutton Version (specify Rev E or later) part number 9350-7497-0001.

  • Page 13: Kpm-P4A Pushbutton Kit, 4 Pushbuttons With Alpha-Numeric Displays

    Kit Part Number 9000-7497-012 This kit is intended for use with the KPM-BASE-S Kit. Each lever key kit adds 4 intercom keys. Also order one copy of the KP-12 User Instructions, Lever Key Version (specify Rev B or later) part number 9350-7497- 002.

  • Page 14: Kpm-Io General Purpose Input/Output (Gpi) Module Kit

    KPM-IO General Purpose Input/Output (GPI) Module Kit Kit Part Number 9000-7497-022 NOTE: This kit should not be ordered for use on a factory-built KP-12, since it is not equipped with the re- quired mounting plate and spacers. , y l...

  • Page 15: Dimensions And Cutouts

    Dimensions and Cutouts 2.000 (50.80) 1.045 (50.80) (24.21) Figure 11. Control and Audio Receive PC Board Dimensions (Not shown to scale) 0.953 (24.21) 2.000 (50.80) 1.045 (26.54) .125 DIA. ( 3.18) Figure 12. Audio Transmit PC Board Dimensions (Not shown to scale) 5.200 (132.08) 3.421...
  • Page 16 2.594 (65.89) 1.825 (46.36) 1.560 (39.62) Figure 13. Dual Shaft Encoder PC Board Dimensions (not to scale) INCHES (MILLIMETERS) 1.560 (39.62) 0.735 0.485 (18.67) (12.32) 0.400 (10.16) Figure 14. Dual Display PC Board Dimensions (not to scale) 0.984 (24.99) INCHES (MILLIMETERS) NOT TO SCALE 1.850...
  • Page 18 INCHES (MM) 0.826 (20.98) 1.560 (39.62) .125 DIA. (3.18) 0.821 (20.85) Figure 16. Lever Key PC Board Dimensions (not to scale) 3.304 (83.92) 1.652 (41.97) 0.909 (23.09) .250 MAX. DIA. STAND-OFF (6.35) 3.294 (83.67) 1.652 (41.96) NOT TO SCALE 0.367 (9.32) 0.062 (1.57)
  • Page 19 0.826 (20.98) 1.560 (39.62) .125 DIA. (3.18) 0.821 (20.85) Figure 17. Pushbutton Key PC Board Dimensions (not to scale) 3.304 (83.92) 1.652 (41.97) .250 MAX DIA. STAND-OFF (6.35) 3.294 (83.67) 1.652 (41.96) NOT TO SCALE 0.590 (14.99) 0.366 (9.32) 0.909 (23.08) 0.062 (1.57)
  • Page 22 2.650 INCHES (67.31) (MM) 1.150 (29.21) NOT TO SCALE Figure 20. Power Entry Module Dimensions (not to scale) 2.600 (66.04) SCALE NOT ASSURED Figure 21. Power Entry Module Panel Cutout Dimensions (scale not assured) 0.019 1.900 (.48) (48.26) 2.170 (55.12) INCHES (MM) 1.063...
  • Page 23 4.000 3.600 (91.60) (101.60) 0.200 (5.08) Figure 22. Power Supply PC Board Dimensions (not to scale) (67.31) 1.400 (35.56) 1.272 (32.30) Figure 23. Frame Connector Module Dimensions (not to scale) 3.000 (76.20) (MILLIMETERS) .160 DIA. (4.06) 2.600 0.200 (66.04) (5.08) NOT TO SCALE 2.650 INCHES...
  • Page 24 .750 DIA. (19.05) INCHES (MILLIMETERS) Figure 24. Gooseneck Microphone Connector Dimensions (not to scale) INCHES (MILLIMETERS) 0.575 (14.60) Figure 25. Gooseneck Microphone Connector Panel Cutout Dimensions (scale not assured) 0.087 (2.21) 0.693 (17.60) NOT TO SCALE 0.077 (1.95) BUSHING OUTLINE .750 DIA.
  • Page 25 1.419 (MILLIMETERS) (36.04) 0.091 (2.31) NOT TO SCALE Figure 26. XLR Connector Dimensions (not to scale) INCHES (MILLIMETERS) .138 DIA. (3.51) (9.50) 0.472 (11.99) 0.944 (23.98) .945 DIA. (24.00) SCALE NOT ASSURED Figure 27. XLR Connector Panel Cutout Dimensions (scale not assured) INCHES 1.220 (30.99)
  • Page 26 2.207 (56.06) 0.400 (10.16) 1.500 (38.10) INCHES (MILLIMETERS) Figure 28. GPI Module Dimensions (not to scale) 1.615 (41.02) 2.795 (70.99) 1.315 (33.40) 29. Speaker Dimensions (not to scale) 5.421 (137.69) 3.310 (84.07) 1.103 (28.02) 4.413 (112.09) NOT TO SCALE 2.495 (63.37) INCHES (MILLIMETERS)
  • Page 29 1/4" PHONE JACK PIN 1 CONTROL AND AUDIO RECEIVE PC BOARD (7725-000) DENOTES CABLE SHIELD DENOTES TWISTED PAIR Figure 32. KP-12 Audio Connections HEADSET EXT MIC IN 9-PIN MALE DSUB 3-PIN FEMALE XLR FRONT PANEL GOOSENECK MIC 3-CONDUCTOR 1/4" PHONE JACK...
