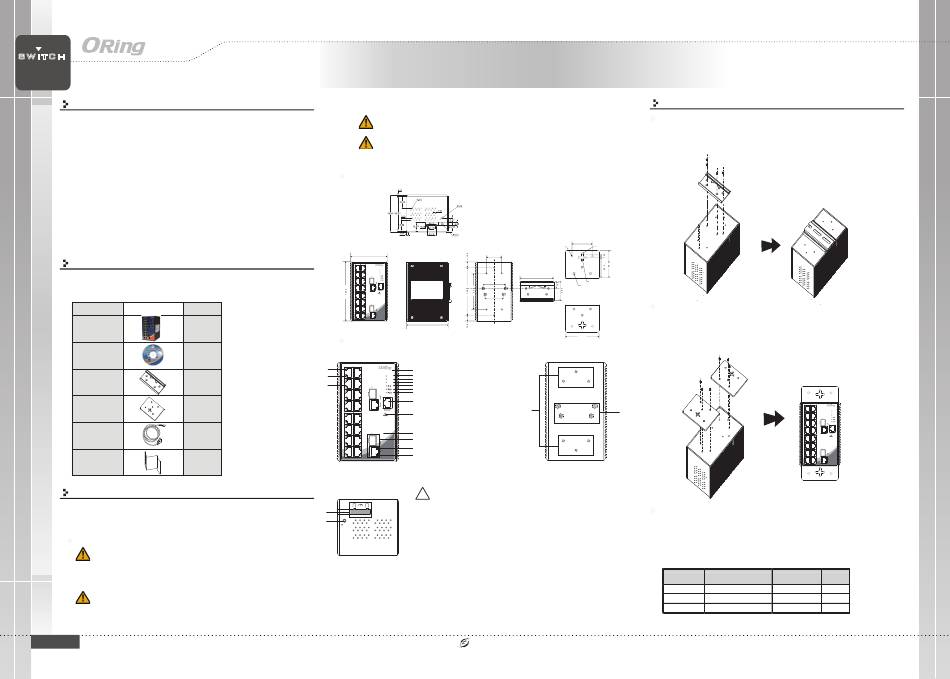

ORiNG IES-3162GC Quick Installation Manual

SWITCH
I N D U S T R I A L
Q I
uick nstallation

Introduction

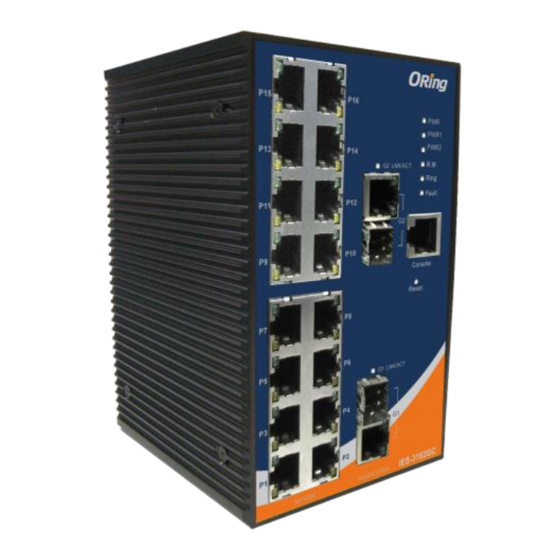

IES-3162GC is managed Redundant Ring Ethernet switch with 16x10/100Base-T(X)
ports and 2xgigabit combo ports. With completely support of Ethernet Redundancy
protocol, O-Ring (recovery time < 10/30ms over 250 units of connection), O-Chain,
MRP *NOTE and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical
applications from network interruptions or temporary malfunctions with its fast recovery
technology. O-Chain is the revolutionary network redundancy technology that provides
the add-on network redundancy topology for any backbone network, O-Chain allows
multiple redundant network rings of different redundancy protocols to join and function
together as a larger and more robust compound network topology. O-Chain providing
ease-of-use while maximizing fault-recovery swiftness, flexibility, compatibility, and
cost-effectiveness in one set of network redundancy topology.
3162GC can be managed centralized and convenient by a powerful windows utility —
Open-Vision. In addition, the wide operating temperature range from -40 to 75 C can
satisfy most of operating environment. Therefore, the switch is one of the most reliable
choice for highly-managed and Fiber Ethernet application.
The product is open type, intended to be installed in and industrial control panel or an enclosure.
*NOTE : This function is available by request only.

Package Contents

The device is shipped with the following items. If any of these items is
missing or damaged, please contact your customer service representative for
assistance.
Contents Pictures Number
IES-3162GC
CD
DIN-rail Kit
Wall-mount Kit
Console Cable
QIG

Preparation

Before you begin installing the switch, make sure you have all of the package
contents available and a PC with Microsoft Internet Explorer 6.0 or later, for
using web-based system management tools.
Safety & Warnings
Elevated Operating Ambient: If installed in a closed or multi-unit rack
assembly, the operating ambient temperature of the rack environment may be
greater than room ambient. Therefore, consideration should be given to
installing the equipment in an environment compatible with the maximum
ambient temperature (Tma) specified by the manufacturer.
Reduced Air Flow: Installation of the equipment in a rack should be such
that the amount of air flow required for safe operation of the equipment is
not compromised.
Q I G
IES-3162GC
G
uide

Dimension

All function of IES-
o
96.4
P15 P16
P13 P14
G2 LNK/ACT
P11 P12
G2
P9 P10
P7 P8
P5 P6
G2 LNK/ACT
P3 P4
G1
P1 P2
IES-3162GC
10/100M Gigabit Combo
X 1

Panel Layouts

Front View
X 1
8
P15 P16
9
X 1
10 P13 P14
G2 LNK/ACT
P11 P12
X 2 P9 P10
P7 P8
P5 P6
X 1 G2 LNK/ACT
P3 P4
P1 P2
Gigabit Combo
10/100M
X 1
Top Panel
PWR-2 Fault PWR-1
1A@24V
1
V2- V2+ V1- V1+ DC 50-57V
2
1. Terminal blocks: PWR1,
-
PWR2 (12 48V DC), Relay
2. Ground wire.
1907-200-E3162GCXX2-FX011
IES-3162GC
Mechanical Loading: Mounting of the equipment in the rack should be such that
a hazardous condition is not achieved due to uneven mechanical loading.
Circuit Overloading: Consideration should be given to the connection of the equipment
to the supply circuit and the effect that overloading of the circuits might have on
overcurrent protection and supply wiring. Appropriate consideration of equipment
nameplate ratings should be used when addressing this concern.
Unit =mm (Tolerance ±0.5mm)
Ø4.00
40.0
PWR
PWR1
PWR2
88.0
58.0
48.0
108.5
1. Power LED
13 2. PWR1 LED
1
PWR 3. PWR2 LED
2
PWR1
3
PWR2 4. R.M. status LED
4
5
5. Ring status LED
6
6. Faulty relay indicator
7
G2
7. Console port
8. Link/Act LED for Ethernet port 1 1
13
9. Full/Half-duplex indicator
10. LAN ports
11. Link/Act LED for SFP ports
11
12. Combo ports
12
13. Reset button
G1
14
14. Link/Act LED for Gigabit port
15
IES-3162GC 15. 100Mbps indicator for Gigabit port
1. Wall-mount screw holes
2. Din-rail screw holes
Warning [AVERTISSEMENT]
！
Take into consideration the following guidelines before wiring the device
[Tenez compte des directrices suivantes avant de câbler l'appareil.]
1. Terminal block is mating with Plug and suitable for 12-24AWG.
Torque value 4.5 lb-in.
[Le bornier est compatible avec les connecteurs et convient pour 12-24AWG.
Valeur de couple 4,5 lb-in.]
2. The temperature rating of the input connection cable should higher than 105°C
[La température de service nominale du câble d'entrée doit être supérieure à 105 °C]
* Indoor use and pollution degree II, it must be wiped with a dry cloth for clean up the
device and label.
* Utilisation en intérieur et degré de pollution II, il faut l'essuyer avec un chiffon sec
pour nettoyer l'appareil et son étiquette.
* Do not block air ventilation holes.
* Ne bouchez pas les orifices de ventilation.
* If the equipment is used in a manner not specified by the manufacturer, the
protection provided by the equipment may be impaired."
* Si l'appareil est utilise d'une maniere non specifiee par le fabricant, la protection
qu'il apporte peut se voir diminuee."
* Shall be mounted in the Industrial Control Panel and ambient temperature is not
exceed 75 degree C
* doit être monté dans le panneau de commande industriel et la température ambiante
ne doit pas dépasser 75 degrés C
PRINTED ON RECYCLED PAPER
Industrial Managed Ethernet Switch

Installation

DIN-rail Installation

Step 1: Slant the switch and screw the Din-rail kit onto the back of the switch, right in
the middle of the back panel.
Step 2: Slide the switch onto a DIN-rail from the Din-rail kit and make sure the switch
clicks into the rail firmly.
49.67
Ø5.00
Ø8.00
Ø4.00

Wall-mounting

Step 1: Screw the two pieces of wall-mount kits onto both ends of the rear panel of the
switch. A total of six screws are required, as shown below.
Step 2: Use the switch, with wall mount plates attached, as a guide to mark the
correct locations of the four screws.
87.9
Step 3: Insert a screw head through the large parts of the keyhole-shaped apertures,
and then slide the switch downwards. Tighten the screws for added stability.
Rear View
2

Network Connection

The switch provides standard Ethernet ports. According to the link type, the switch uses
CAT 3,4,5,5e UTP cables to connect to any other network devices (PCs, servers,
switches, routers, or hubs).
Specifications.
Cable Types and Specifications:
Cable Type
10BASE-T Cat. 3, 4, 5 100-ohm
100BASE-TX Cat. 5 100-ohm UTP
1000BASE-T Cat. 5 / Cat. 5e 100-ohm UTP
Version 2.1
P15 P16
PWR
PWR1
PWR2
P13 P14
G2 LNK/ACT
P11 P12
G2
P9 P10
P7 P8
P5 P6
G2 LNK/ACT
P3 P4
G1
P1 P2
IES-3162GC
Gigabit Combo
10/100M
Please refer to the following table for cable
Max. Length Connector
UTP 100 m (328 ft) RJ-45
UTP 100 m (328 ft) RJ-45
UTP 100 m (328 ft) RJ-45
Quick Installation Guide
