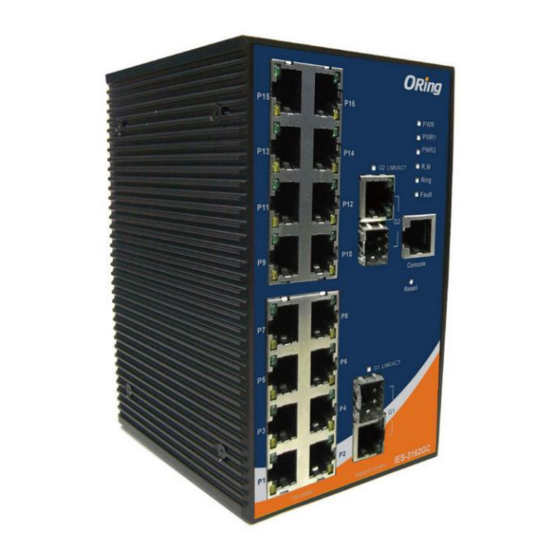

ORiNG IES-3162GC Series User Manual

Industrial managed ethernet switches
Hide thumbs Also See for IES-3162GC Series:
Table of Contents

Advertisement

Quick Links

Download this manual
I
E
S
I
E
S
I
n
d
u
s
t
r
i
a
l
M
a
I
n
d
u
s
t
r
i
a
l
M
U
U
-
3
1
6
2
G
C
S
-
3
1
6
2
G
C
S
n
a
g
e
d
E
t
h
e
a
n
a
g
e
d
E
t
h
e
s
e
r
M
a
n
u
s
e
r
M
a
n
u
V
e
r
s
i
o
n
4
.
0
V
e
r
s
i
o
n
4
.
0
J
a
n
u
a
r
y
,
2
0
1
4
J
a
n
u
a
r
y
,
2
0
1
4
e
r
i
e
s
e
r
i
e
s
r
n
e
t
S
w
i
t
c
h
e
r
n
e
t
S
w
i
t
c
h
e
a
l
a
l
w
w
w
.
o
r
i
n
g
-
n
w
w
w
.
o
r
i
n
g
-
n
s
s
e
t
w
o
r
k
i
n
g
.
c
o
m
e
t
w
o
r
k
i
n
g
.
c
o
m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IES-3162GC Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ORiNG IES-3162GC Series

Summary of Contents for ORiNG IES-3162GC Series

  • Page 2 ORing warrants that all ORing products are free from defects in material and workmanship for a specified warranty period from the invoice date (5 years for most products). ORing will repair or replace products found by ORing to be defective within this warranty period, with shipment expenses apportioned by ORing and the distributor.

  • Page 3: Table Of Contents

    IES-3162GC Series User Manual Table of Content Getting Started .............. 錯誤! 尚未定義書籤。 About IES-3080 / IES-3062 Series ................ 5 Software Features ....................5 Hardware Features ....................5 Hardware Overview ..................7 Front Panel ......................7 Front Panel LEDs ....................8 Top Panel ......................
  • Page 4 IES-3162GC Series User Manual 4.5.2 MSTP ......................... 28 Fast Recovery ....................32 Management ....................33 System Information ..................34 Front Panel ............... 錯誤! 尚未定義書籤。 Basic Setting ....................35 5.3.1 Admin Password ..................36 5.3.2 IP Setting ....................36 5.3.3 Time Setting ....................37 5.3.4...
  • Page 5 IES-3162GC Series User Manual 5.9.1 Agent Setting....................58 5.9.2 Trap Setting ....................60 5.9.3 SNMPV3 ....................60 5.10 Security ...................... 63 5.10.1 IP Security ..................... 63 5.10.2 Port Security ..................64 5.10.3 MAC Blacklist ..................64 5.10.4 802.1x ....................65 5.10.5...

  • Page 6: Getting Started

    Started 1.1 About the IES-3162GC Series The IES-3162GC series are powerful managed industrial switches designed for harsh, dusty, and humid environments. Featuring sixteen 10/100Base-T(X) Ethernet ports and two Gigabit combo ports (10/100/1000Base-T(X) Gigabit Ethernet ports and 1000Base-X SFP ports), the device is ideal for applications requiring high port density.
  • Page 7 IES-3162GC Series User Manual  Wide Operating Temperature: -40 to 70  Storage Temperature: -40 to 85  Operating Humidity: 5% to 95%, non-condensing  Casing: IP-30  Dimensions(W x D x H): 96.4(W)x108.5(D)x154(H) mm ORing Industrial Networking Corp...

  • Page 8: Hardware Overview

    IES-3162GC Series User Manual ardware Overview 2.1 Front Panel The switches come with the following ports on the front panel: Port Description 10/100 RJ-45 fast 10/100Base-T(X) RJ-45 fast Ethernet ports with Ethernet ports auto-negotiation support Gigabit combo ports x 10/100/1000Base-T(X) Gigabit Ethernet ports and 2 x...

  • Page 9: Front Panel Leds

    IES-3162GC Series User Manual 2.2 Front Panel LEDs Color Status Description DC power on Green Green DC power module 1 activated DC power module 2 activated Green Green Port running as O-Ring Master. O-Ring enabled. Ring Green Ring structure is broken (i.e. part of the ring is...

  • Page 10: Rear Panel

    IES-3162GC Series User Manual 2.4 Rear Panel On the rear panel of the switch sit three sets of screw holes. The two sets placed in triangular patterns on both ends of the rear panel are used for wall-mounting (red boxes in the figure below) and the set of four holes in the middle are used for Din-rail installation (blue box in the figure below).

  • Page 11: Hardware Installation

    IES-3162GC Series User Manual Hardware Installation 3.1 DIN-rail Installation The device comes with a DIN-rail kit with which you can fasten the switch to a DIN-rail in any environments. Din-rail Kit Measurement Installing the switch on the DIN-rail is easy. First, screw the Din-rail kit onto the back of the switch, right in the middle of the back panel.
  • Page 12 IES-3162GC Series User Manual Wall-Mount Kit Measurement To mount the switch onto the wall, follow the steps: 1. Screw the two pieces of wall-mount kits onto both ends of the rear panel of the switch. A total of six screws are required, as shown below.

  • Page 13: Wiring

    IES-3162GC Series User Manual fasten the screw to the wall with a screwdriver. 4. If the screw goes through the cross-shaped aperture, slide the switch down before tightening the screw. Note: Instead of screwing the screws in all the way, leave about 2 mm to allow room for sliding the wall mount panel between the wall and the screws.

  • Page 14: Grounding

    3.4.1 Cables The IES-3162GC series switches have standard Ethernet ports. According to the link type, the switch uses CAT 3, 4, 5,5e UTP cables to connect to any other network devices (PCs, servers, switches, routers, or hubs). Please refer to the following table for cable specifications.
  • Page 15 BI_DB- BI_DD+ BI_DD- The IES-3162GC series switches support auto MDI/MDI-X operation. You can use a cable to connect the switch to a PC. The table below shows the 10/100BASE-TX and 1000Base-T MDI and MDI-X port pin outs. 10/100Base-TX MDI/MDI-X pins assignments...
  • Page 16 Note: “+” and “-” signs represent the polarity of the wires that make up each wire pair. RS-232 Console Port Wiring The IES-3162GC series switches can be managed via console ports using a RS-232 cable which can be found in the package. You can connect the port to a PC via the RS-232 cable with a DB-9 female connector.

  • Page 17: O-Ring/O-Chain

    IES-3162GC Series User Manual 3.4.2 The switch comes with fiber optical ports that can connect to other devices using SFP modules. The fiber optical ports are in multi-mode (0 to 550M, 850 nm with 50/125 µm, 62.5/125 µm fiber) and single-mode with LC connectors. Please remember that the TX port of Switch A should be connected to the RX port of Switch B.
  • Page 18 IES-3162GC Series User Manual which port on each switch to be used as the coupling port and then link them together, for example, port 1 of switch A to port 2 of switch C and port 1 of switch B to port 2 of switch D.
  • Page 19 IES-3162GC Series User Manual O-Chain When connecting multiple O-Rings to meet your expansion demand, you can create an O-Chain topology through the following steps. 1. Select two switches from the chain (Switch A & B) that you want to connect to the O-Ring and connect them to the switches in the ring (Switch C &...

  • Page 20: Redundancy

    4.1 O-Ring 4.1.1 Introduction O-Ring is ORing's proprietary redundant ring technology, with recovery time of less than 30 milliseconds (in full-duplex Gigabit operation) or 10 milliseconds (in full-duplex Fast Ethernet operation) and up to 250 nodes. The ring protocols identify one switch as the master of the network, and then automatically block packets from traveling through any of the network’s...
  • Page 21 IES-3162GC Series User Manual Label Description Check to enable O-Ring topology. Enable Ring Only one ring master is allowed in a ring. However, if more than one switches are set to enable Ring Master, the switch with the Enable Ring Master lowest MAC address will be the active ring master and the others will be backup masters.

  • Page 22: Open-Ring

    4.2 OPEN-Ring 4.2.1 Introduction Open-Ring is a technology developed by ORing to enhance ORing switches’ interoperability with other vendors’ products. With this technology, you can add any ORing switches to the network based on other ring technologies. 4.2.2 Configurations Label...

  • Page 23: O-Chain

    IES-3162GC Series User Manual 4.3 O-Chain 4.3.1 Introduction O-Chain is ORing’s revolutionary network redundancy technology which enhances network redundancy for any backbone networks, providing ease-of-use and maximum fault-recovery swiftness, flexibility, compatibility, and cost-effectiveness in a set of network redundancy topologies. The self-healing Ethernet technology designed for distributed and complex...

  • Page 24: Mrp

    IES-3162GC Series User Manual Label Description Enable Check to enable O-Chain function Ring Port The first port connecting to the ring Ring Port The second port connecting to the ring Edge Port An O-Chain topology must begin with edge ports. The ports with a smaller switch MAC address will serve as the backup link and RM LED will light up.

  • Page 25: Stp/Rstp/Mstp

    IES-3162GC Series User Manual Manager Every MRP topology needs a MRP manager. One MRP topology can only have a Manager. If two or more switches are set to be Manager, the MRP topology will fail. React on Link Change Faster mode. Enabling this function will cause MRP topology to (Advanced mode) converge more rapidly.
  • Page 26 IES-3162GC Series User Manual Label Description Enable Check to enable RSTP Repeater Ring Port The first port connecting to the RSTP network Ring Port The second port connecting to the RSTP network Edge Port Only the edge device (connected to RSTP device) needs to specify edge port.
  • Page 27 IES-3162GC Series User Manual and 30. Apply Click to apply the configurations. NOTE: the calculation of the MAX Age, Hello Time, and Forward Delay Time is as follows: 2 x (Forward Delay Time value –1) > = Max Age value >= 2 x (Hello Time value +1) The following pages show the information of the root bridge, including its port status.
  • Page 28 IES-3162GC Series User Manual rather than a shared medium. This can be configured automatically or set to true or false manually. True means P2P enabling. False means P2P disabling. Transiting to forwarding state is faster for point-to-point LANs than for shared media.

  • Page 29: Mstp

    IES-3162GC Series User Manual ports. STP Neighbor The port uses mathematical calculations according to STP. True means not included in mathematical calculations, and False means contained in mathematical calculations according to STP. State Determines the STP state of the port...
  • Page 30 IES-3162GC Series User Manual Bridge Settings This page allows you to examine and change the configurations of current MSTI ports. A MSTI port is a virtual port, which is instantiated separately for each active CIST (physical) port for each MSTI instance configured and applicable for the port. The MSTI instance must be selected before MSTI port configuration options are displayed.
  • Page 31 IES-3162GC Series User Manual Hello Time (1-10) The time interval a switch sends out the BPDU packet to check RSTP current status. The time is measured in seconds and the valid value is between 1 through 10. Forwarding Delay The time of a port waits before changing from RSTP learning and Time (4-30) listening states to forwarding state.
  • Page 32 IES-3162GC Series User Manual To configure the port as an edge port, set the port to True. Admin Non STP The port includes the STP mathematic calculation. True is not including STP mathematic calculation, false is including the STP mathematic calculation.

  • Page 33: Fast Recovery

    IES-3162GC Series User Manual Label Description The bridge instance. CIST is the default instance, which is always Instance active. Port The port number which you want to configure. Decides the priority of ports to be blocked in the LAN. The valid...

  • Page 34: Management

    IES-3162GC Series User Manual anagement The switch can be controlled via a built-in web server which supports Internet Explorer (Internet Explorer 5.0 or above versions) and other Web browsers such as Chrome. Therefore, you can manage and configure the switch easily and remotely. You can also upgrade firmware via a Web browser.

  • Page 35: System Information

    IES-3162GC Series User Manual User Name: admin Password: admin After logging in, you will see the information of the switch as below. On the left hand side of the management interface shows links to various settings. Clicking on the links will bring you to individual configuration pages. On the right hand side shows a picture of the front panel of the device which LED indication corresponding to the physical device.

  • Page 36: Basic Setting

    IES-3162GC Series User Manual Label Description An administratively assigned name for the managed node. By convention, this is the node's fully-qualified domain name. A domain name is a text string consisting of alphabets (A-Z, a-z), System Name digits (0-9), and minus sign (-). Space is not allowed to be part of the name.

  • Page 37: Admin Password

    IES-3162GC Series User Manual System Description Description of the device System Location Assigns physical switch location. The maximum length is 64 bytes System Contact Information of the contact person or organization 5.2.1 Admin Password This page allows you to configure the system password required to access the web pages or log in from CLI.

  • Page 38: Time Setting

    IES-3162GC Series User Manual Label Description Enables or disables the DHCP client. If DHCP fails or the DHCP Client configured IP address is zero, DHCP will retry. If DHCP retry fails, DHCP will stop trying and the configured IP settings will be used.
  • Page 39 IES-3162GC Series User Manual SNTP SNTP (Simple Network Time Protocol) is a protocol able to synchronize the time on your system to the clock on the Internet. It will synchronize your computer system time with a server that has already been synchronized by a source such as a radio, satellite receiver or modem.
  • Page 40 IES-3162GC Series User Manual Oscar Time Zone -2 hours 10 am ADT - Atlantic Daylight -3 hours 9 am AST - Atlantic Standard -4 hours 8 am EDT - Eastern Daylight EST - Eastern Standard -5 hours 7 am CDT - Central Daylight...

  • Page 41: Lldp

    IES-3162GC Series User Manual EAST - East Australian Standard GST +10 hours 10 pm Guam Standard, USSR Zone 9 IDLE - International Date Line NZST - New Zealand Standard +12 hours Midnight NZT - New Zealand PTP Client The Precision Time Protocol (PTP) is a time-transfer protocol defined in the IEEE 1588-2002 standard that allows precise synchronization of networks (e.g., Ethernet).

  • Page 42: Modbus Tcp

    IES-3162GC Series User Manual LLDP Interval The interval of resending LLDP ( 30 seconds by default) Apply Click to apply the configurations. Help Shows help file. Neighbor info table Shows neighbor device info, including system name, MAC address, and IP address.

  • Page 43: Backup & Restore

    IES-3162GC Series User Manual 5.2.6 Backup & Restore You can save current values from the switch to a TFTP server, and restore the switch to the settings by going to the TFTP restore configuration page. The following page allows you to save the existing configurations as a backup file to a TFTP server.

  • Page 44: Upgrade Firmware

    IES-3162GC Series User Manual Restore File Name The name of the configuration file you want to use for the switch. Backup Click to back up the configurations. To Local PC You can save the configuration file to your your PC instead of a TFTP server.

  • Page 45: Mvr

    IES-3162GC Series User Manual Label Description Shows a list of current IP multicast IGMP Snooping Table IGMP Snooping Check to enable global IGMP snooping IGMP Query Mode Configures the switch to be the IGMP querier. Only one IGMP querier is allowed in an IGMP application. Auto will select the switch with the lowest IP address as the querier.

  • Page 46: Static Multicast Filtering

    IES-3162GC Series User Manual Label Description MVR Mode Enables or disables MVR MVR VLAN The number of MVR VLANs TYPE Indicates the MVR type of the port. Inactive means the port is not participating in any MVR groups. Immediate Leave Check to enables immediate leave function.

  • Page 47: Port Setting

    IES-3162GC Series User Manual Click to add the ports to the IP multicast list Delete Deletes an entry from the table Help Shows help file. 5.4 Port Setting Port Setting allows you to manage individual ports of the switch, including speed/duplex, flow control, and security.

  • Page 48: Port Alias

    IES-3162GC Series User Manual control. 5.4.3 Port Alias This page provides alias IP address configuration. Some devices might have more than one IP addresses. You could specify other IP addresses here. 5.4.4 Rate Limit This page allows you to define the rate limits applied to a port, including incoming and outgoing traffic.

  • Page 49: Port Trunk

    IES-3162GC Series User Manual Ingress The transmission rate for incoming traffic Egress The transmission rate for outgoing traffic Apply Click to activate the configurations. 5.4.5 Port Trunk A port trunk is a group of ports that have been grouped together to function as one logical path.

  • Page 50: Loop Guard

    IES-3162GC Series User Manual Label Description Indicates the ID of each aggregation group. None means no Group ID aggregation. Only one group ID is valid per port. Type The switch supports two types of link aggregation; static and 802.3ad LACP. Static trunks are manually configured, while.

  • Page 51: Vlan

    IES-3162GC Series User Manual Label Description Active Check to enable Loop Guard Port Status Indicates the enabled/disabled status of the port. 5.5 VLAN 5.5.1 VLAN Setting IEEE 802.1Q A VLAN (Virtual LAN) is a logical LAN based on a physical LAN with links that does not consist of a physical (wired or wireless) connection between two computing devices but is implemented using methods of network virtualization.
  • Page 52 IES-3162GC Series User Manual Three link types are available: Access Link: An access link connects a VLAN-unaware device to the port of a VLAN-aware bridge. All frames on access links must e implicitly tagged (untagged). Trunk Link: All the devices connected to a trnk link, including workstations, must be VLAN-aware.

  • Page 53: Traffic Prioritization

    IES-3162GC Series User Manual Mode Click to start adding a VLAN Edit Edits existing VLANs Delete Deletes existing VLANs Help Shows help file. Label Description VLAN Operation Available options include Disable, Port Base, and 802.1Q Mode Group Name The name of the VLAN that you want to change settings.

  • Page 54: Qos Policy

    IES-3162GC Series User Manual those in a lower priority queue. 5.7.1 QoS Policy Policing is a traffic regulation mechanism for limiting the rate of traffic streams, thereby controlling the maximum rate of traffic sent or received on an interface. When the traffic rate exceeds the configured maximum rate, policing drops or remarks the excess traffic.

  • Page 55: Port-Base Priority

    IES-3162GC Series User Manual Apply Click to apply the configurations Help Shows help file. 5.7.2 Port-base priority Label Description Assigns a port to a priority queue. Four priority queues are Priority available: High, Middle, Low, and Lowest. Apply Click to apply the configurations Help Shows help file.

  • Page 56: Tos/Dscp

    IES-3162GC Series User Manual Label Description Assigns a port to a priority queue. Four priority queues are Priority available: High, Middle, Low, and Lowest. Apply Click to apply the configurations Help Shows help file. 5.7.4 TOS/DSCP TOS (Type of Service) is a field in the IP header of a packet. It is used by Differentiated Services and is called the DSCP (Differentiated Services Code Point).

  • Page 57: Basic Setting

    IES-3162GC Series User Manual 5.8.1 Basic Setting This page allows you to set up DHCP settings for the switch. You can check the Enabled checkbox to activate the function. Once the box is checked, you will be able to input information in each column.

  • Page 58: Port And Ip Bindings

    IES-3162GC Series User Manual 5.8.3 Port and IP bindings You can assign a specific IP address within the dynamic IP range to a specific port. When a device is connected to the port and requests for dynamic IP assigning, the switch will assign the IP address that has previously been assigned to the connected device.

  • Page 59: Snmp

    IES-3162GC Series User Manual Label Description Mode Enables or disables DHCP relay agent – Server Specify the IP address and VID of the DHCP server. 0.0.0.0 means IP/VID the server is inactive. DHCP Option Provides an identifier for the remote server. Four types of IDs are Remote ID Type supported: IP, MAC, Client-ID, and Other.
  • Page 60 IES-3162GC Series User Manual Label Description SNMP Agent The column shows the version of the SNMP agent used by the Version switch. Three SNMP versions are supported, including SNMP V1, SNMP V2c, and SNMP V3. SNMP V1/SNMP V2c agents use a community string to authenticate the SNMP management station and SNMP agent.

  • Page 61: Trap Setting

    IES-3162GC Series User Manual 5.9.2 Trap Setting SNMP traps are event reports sent to a list of managers configured to receive event notifications when an error occurs. SNMP traps provide the value of one or more instances of management information. A trap manager is a management station that receives traps. If no trap manager is defined, no traps will be issued.
  • Page 62 IES-3162GC Series User Manual Label Description Context Table Context is a collection of management information accessible by a SNMP entity and is stored in the context table. You can assign a context name to the context table and click Apply to change the name.
  • Page 63 IES-3162GC Series User Manual User Table You can manage existing and add new user profiles in this section. In Current User Profiles, select an entry you want to remove and click Remove. In New User Profiles, specify the following information of a new entry:...

  • Page 64: Security

    IES-3162GC Series User Manual values. In New MIBview Table, enter the following information: ViewName: the name of the view Sub-Oid Tree: fill in the Sub OID. Type: select the type as excluded or included. Click Add after inputting the information.

  • Page 65: Port Security

    IES-3162GC Series User Manual 5.10.2 Port Security You can use static MAC addresses to provide port security for the switch. With this method, only the frames with the MAC addresses in this list will be forwarded, otherwise will be discarded.
  • Page 66 IES-3162GC Series User Manual Label Description MAC Address Enter a MAC address for a specific port. Port NO. Select a switch port Add the MAC address and port information. Delete Delete an entry Help Shows help file 5.10.4 802.1x The IEEE 802.1X standard defines a port-based access control procedure that prevents unauthorized access to a network by requiring users to first submit credentials for authentication.
  • Page 67 IES-3162GC Series User Manual Label Description 802.1x Protocol Enables or disables 802.1X Radius server Radius Server IP IP address of the authentication server The UDP port number used by the authentication server to Server Port authenticate The number of the UDP port that the RADIUS server uses for Accounting Port accounting requests.

  • Page 68: Ip Guard

    IES-3162GC Series User Manual The period of time after which clients connected must be Re-Auth Period re-authenticated Apply Click to apply the configurations Help Shows help file The 802.1x authorized mode of each port can be set in the following dialog:...
  • Page 69 IES-3162GC Series User Manual Label Description Mode Disabled: disables the function Monitor: scans the IP information of the connected device before implementing further actions Security: performs security actions without scanning the information of the connected device Apply Click to apply the configurations...

  • Page 70: Warning

    IES-3162GC Series User Manual Super-IP List A super-IP list enables you to give full access to the switch to the user you specify. Devices with the IP addresses listed in the table will be able to manage the switch disregarding the rule you have set.

  • Page 71: Syslog Setting

    IES-3162GC Series User Manual 5.11.2 SYSLOG Setting SYSLOG is a protocol that allows a device to send event notification messages across IP networks to event message collectors. It permits separation of the software that generates messages from the system that stores them and the software that reports and analyzes them.

  • Page 72: Smtp Setting

    IES-3162GC Series User Manual 5.11.3 SMTP Setting SMTP (Simple Mail Transfer Protocol) is a protocol for transmitting e-mails across the Internet. By setting up SMTP alert, the device will send a notification e-mail when a user-defined event occurs. Label Description...

  • Page 73: Monitor And Diag

    IES-3162GC Series User Manual Label Description Device cold start Sends alerts when you restart the device using the power button on your PC. Sends alerts when you restart the device using the Reset button or Device warm start software. Authentication...

  • Page 74: Mac Address Table

    IES-3162GC Series User Manual Label Description Page The page number of the selected LOG Reload Click to refresh the information in this page Clear Clear log Help Shows help file 5.12.2 MAC Address Table A MAC address tablet is a table in a network switch that maps MAC addresses to ports. The switch uses the table to determine which port the incoming packet should be forwarded to.
  • Page 75 IES-3162GC Series User Manual the address does not exist in the table by examining the source address of each packet received on a port. This is called learning. It allows the MAC table to expand dynamically. If the learning mode for a given port is grayed out, it means another module is in control of the mode, and thus the user cannot change the configurations.
  • Page 76 IES-3162GC Series User Manual Label Description Type Shows port speed and media type. Link Shows port link status State Shows port status TX GOOD Packet The number of good packets sent by this port TX Bad Packet The number of bad packets sent by this port...
  • Page 77 IES-3162GC Series User Manual Label Description InGoodOctetsLo The lower 32-bits of the 64-bit InGoodOctets counter. This field indicates the total length of all good Ethernet frames received. The upper 32-bits of the 64-bit InGoodOctets counter. This field InGoodOctetsHi indicates the total length of all good Ethernet frames received.
  • Page 78 IES-3162GC Series User Manual address. The number of frames sent with an Unicast destination MAC OutUnicasts address. The number frames dropped in the transmitted MAC address because the frame experiences 16 consecutive collisions. This Excessive counter is applicable in half-duplex only and only when DiscardExcessive is one.
  • Page 79 IES-3162GC Series User Manual only, and both TX/RX monitoring. TX monitoring sends any data that egress out checked TX source ports to a selected TX destination port as well. RX monitoring sends any data that ingress in checked RX source ports out to a selected RX destination port as well as sending the frame where it normally would have gone.

  • Page 80: Ping

    IES-3162GC Series User Manual Label Description Monitored–Counter Monitor the incoming traffic by bandwidth or number of packets. Available options include: RX Octet: calaculates the total bandwidth consumed by incoming traffic RX Broadcast: calaculates the number of broadcast packets RX Multicast: calaculates the number of multicast packets...

  • Page 81: Save Configuration

    IES-3162GC Series User Manual Label Description IP Address Enter the IP address that you want to detect Active Click to send ICMP packets 5.12.4 Save Configuration Click Save Configuration whenever you change a configuration to save current configurations; otherwise, the changes you make will be lost when the power is off or system is reset.

  • Page 82: Command Line Interface Management

    IES-3162GC Series User Manual ommand Line Interface Management Besides Web-based management, the switch also supports CLI management. You can use console or telnet to manage the switch by CLI. CLI Management by RS-232 Serial Console (115200, 8, none, 1, none) Before configuring RS-232 serial console, connect the RS-232 port of the switch to your PC Com port using a RJ45 to DB9-F cable.
  • Page 83 IES-3162GC Series User Manual Step 3. Select a COM port in the drop-down list. Step 4. A pop-up window that indicates COM port properties appears, including bits per second, data bits, parity, stop bits, and flow control. ORing Industrial Networking Corp...
  • Page 84 IES-3162GC Series User Manual Step 5. The console login screen will appear. Use the keyboard to enter the Username and Password (same as the password for Web browsers), then press Enter. CLI Management by Telnet You can can use TELNETto configure the switch. The default values are:...
  • Page 85 IES-3162GC Series User Manual IP Address: 192.168.10.1 Subnet Mask: 255.255.255.0 Default Gateway: 192.168.10.254 User Name: admin Password: admin Follow the steps below to access console via Telnet. Step 1. Telnet to the IP address of the switch from the Run window by inputingcommands (or from the MS-DOS prompt) as below.

  • Page 86: Technical Specifications

    IES-3162GC Series User Manual Commands Level Modes Access Method Prompt Exit Method About This Model User EXEC Begin a session switch> Enter logout The user command with your switch. or quit. available at the level of user is the subset of those available at the privileged level.
  • Page 87 IES-3162GC Series User Manual Symbol of Command Level. Mode Symbol of Command Level User EXEC Privileged EXEC Global configuration VLAN database Interface configuration —S OMMANDS YSTEM OMMANDS IES-3162GCCommands Level Description Example show config Show switch switch>show config configuration show terminal...
  • Page 88 IES-3162GC Series User Manual switch no ip dhcp Disable DHCP client switch(config)#no ip dhcp function of switch reload Halt and perform a switch(config)#reload cold restart default Restore to default Switch(config)#default admin username Changes a login switch(config)#admin username [Username] username. xxxxxx...
  • Page 89 IES-3162GC Series User Manual no dhcpserver Disable DHCP server switch(config)#no dhcpserver function security enable Enable IP security switch(config)#security enable function security http Enable IP security of switch(config)#security http HTTP server security telnet Enable IP security of switch(config)#security telnet telnet server...
  • Page 90 IES-3162GC Series User Manual speed Use the switch(config)#interface [10|100|1000|auto] speed fastEthernet 2 configuratio switch(config-if)#speed 100 n command to specify the speed mode of operation for Fast Ethernet., the speed can’t be set to 1000 if the port isn’t a giga port..
  • Page 91 IES-3162GC Series User Manual to “accept all frame” bandwidth type Set interface switch(config)#interface broadcast-multicast-flooded-unicas ingress limit fastEthernet 2 frame type switch(config-if)#bandwidth type to “accept broadcast-multicast-flooded-unicas broadcast, multicast, and flooded unicast frame” bandwidth type Set interface switch(config)#interface broadcast-multicast ingress limit fastEthernet 2...
  • Page 92 IES-3162GC Series User Manual and zero means no limit. bandwidth out Set interface switch(config)#interface [Value] output fastEthernet 2 bandwidth. switch(config-if)#bandwidth out Rate Range is from 100 kbps to 102400 kbps or to 256000 kbps for giga ports, and zero means no limit.
  • Page 93 IES-3162GC Series User Manual show interface configuration show switch(config)#interface interface fastEthernet 2 configuratio switch(config-if)#show interface n status configuration show interface status show switch(config)#interface interface fastEthernet 2 actual status switch(config-if)#show interface status show interface accounting show switch(config)#interface interface fastEthernet 2 statistic...
  • Page 94 IES-3162GC Series User Manual less than zero or be large than the amount of member ports. aggregator group Assign a static trunk switch(config)#aggregator group 1 [GroupID] [Port-list] group. 2-4 nolacp nolacp [GroupID] :1to3 [Port-list]:Member port switch(config)#aggreator group 1 list, This parameter...
  • Page 95 IES-3162GC Series User Manual trunk-link tag port belong to a trunk [TaggedVID List] group, this command switch(vlan)#vlan 8021q port 3 can’t be applied. trunk-link tag 3-20 vlan 8021q port Assign a hybrid link for switch(vlan)# vlan 8021q port 3 [PortNumber]...
  • Page 96 IES-3162GC Series User Manual configuration command to change the interval between messages the spanning tree receives from the root switch. If a switch does not receive a bridge protocol data unit (BPDU) message from the root switch within this interval, it...
  • Page 97 IES-3162GC Series User Manual forwarding. stp-path-cost Use the spanning-tree switch(config)#interface fastEthernet [1to200000000] cost interface configuration switch(config-if)#stp-path-cost 20 command to set the path cost for Spanning Tree Protocol (STP) calculations. In the event of a loop, spanning tree considers the path...
  • Page 98 IES-3162GC Series User Manual Show spanning-tree Display a summary of switch>show spanning-tree the spanning-tree states. no spanning-tree Disable spanning-tree. switch(config)#no spanning-tree —Q OMMANDS COMMAND SET IES-3162GCCommands Level Description Example qos policy Select QOS switch(config)#qos [weighted-fair|strict] policy policy weighted-fair scheduling qos prioritytype...
  • Page 99 IES-3162GC Series User Manual configuration an IGMP configuration. show igmp multi Displays the details of switch#show igmp multi an IGMP snooping entries. no igmp Disable IGMP switch(config)#no igmp snooping function no igmp-query Disable IGMP query switch#no igmp-query —MAC/F OMMANDS ILTER...
  • Page 100 IES-3162GC Series User Manual —SNMP OMMANDS COMMAND SET IES-3162GCCommands Level Description Example snmp agent-mode Select the agent mode switch(config)#snmp agent-mode [v1v2c | v3] of SNMP v1v2c snmp-server host Configure SNMP switch(config)#snmp-server host [IP address] server host 192.168.10.50 community public community...
  • Page 101 IES-3162GC Series User Manual —P 6.10 C OMMANDS IRRORING COMMAND SET IES-3162GCCommands Level Description Example monitor rx Set RX destination switch(config)#monitor rx port of monitor function monitor tx Set TX destination switch(config)#monitor tx port of monitor function show monitor Show port monitor...
  • Page 102 IES-3162GC Series User Manual accountport system account port accountport 1816 [port ID] global configuration command to change the accounting port 8021x system sharekey Use the 802.1x switch(config)# 8021x system [ID] system share key sharekey 123456 global configuration command to change the shared key value.
  • Page 103 IES-3162GC Series User Manual [number] max request global maxrequest 3 configuration command to set the MAX requests. 8021x misc Use the 802.1x misc switch(config)# 8021x misc reauthperiod [sec.] reauth period global reauthperiod 3000 configuration command to set the reauth period.
  • Page 104 IES-3162GC Series User Manual file name of image. upgrade Upgrade firmware by switch(config)#upgrade flash:upgrade_fw TFTP and need to lash:upgrade_fw specify the IP of TFTP server and the file name of image. —SYSLOG, SMTP, EVENT 6.13 C OMMANDS COMMAND SET IES-3162GCCommands...
  • Page 105 IES-3162GC Series User Manual function event device-cold-start Set cold start event switch(config)#event [Systemlog|SMTP|Both] type device-cold-start both event Set Authentication switch(config)#event authentication-failure failure event type authentication-failure both [Systemlog|SMTP|Both] event Set s ring topology switch(config)#event O-Ring-topology-change changed event type ring-topology-change both [Systemlog|SMTP|Both]...
  • Page 106 IES-3162GC Series User Manual —SNTP 6.14 C OMMANDS COMMAND SET IES-3162GCCommands Level Description Example sntp enable Enable SNTP function switch(config)#sntp enable sntp daylight Enable daylight saving switch(config)#sntp daylight time, if SNTP function is inactive, this command can’t be applied. sntp daylight-period...
  • Page 107 IES-3162GC Series User Manual function no sntp daylight Disable daylight switch(config)#no sntp daylight saving time —O-R 6.15 C OMMANDS ING COMMAND SET IES-3162GCCommands Level Description Example Ring enable Enable O-Ring switch(config)# ring enable Ring master Enable ring master switch(config)# ring master...
  • Page 108 IES-3162GC Series User Manual echnical Specifications ORing Switch Model IES-3162GC Physical Ports 10/100 Base-T(X) Port in RJ45 Auto MDI/MDIX Gigabit combo Ports with 10/100/1000Base-T(X) and 100/1000Base-X SFP Port Technology IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3z for 1000Base-X IEEE 802.3ab for 1000Base-T...
  • Page 109 IES-3162GC Series User Manual LED Indicators Power Indicator Green : Power LED x 3 R.M. Indicator Green : Indicate system operated in O-Ring master mode Fault Indicator Amber : Indicate unexpected event occurred 10/100Base-T(X) RJ45 Port Indicator Green for port Link/Act. Amber for Duplex/Collision...
