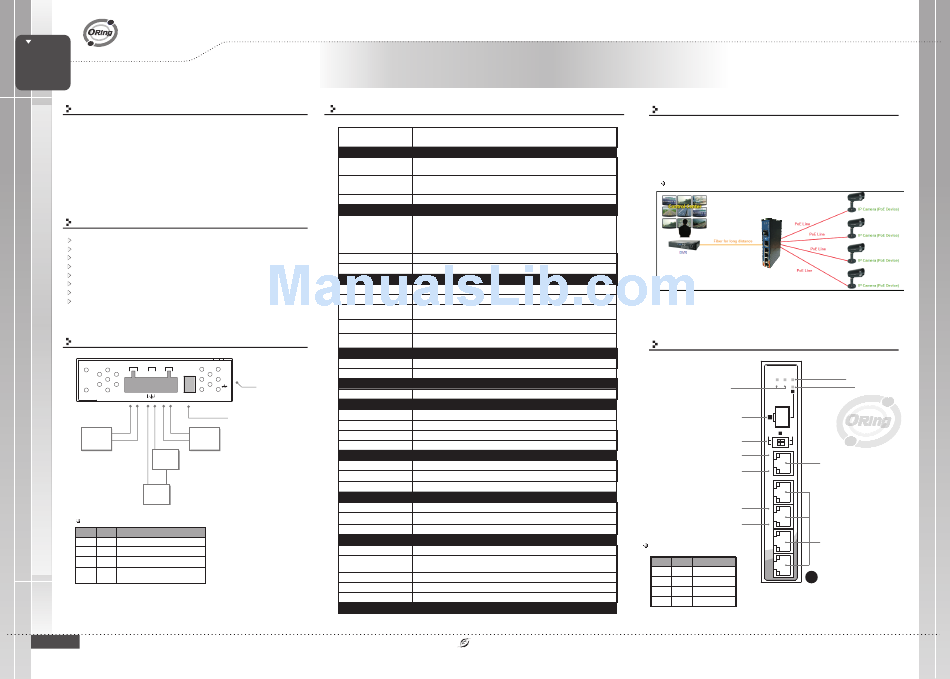

ORiNG IGPS-1411GTPA Quick Installation Manual

ORing Industrial Networking Corp.
GIGABIT
PoE
SWITCH
Q I
uick nstallation
I N D U S T R I A L

Introduction

IGPS-1411GTPA is an unmanaged PoE Ethernet switch with P.S.E. function.
IGPS-1411GTPA support Power over Ethernet, a system to transmit electrical
power, along with data, to remote devices over standard twisted-pair cable in
an Ethernet network. IGPS-1411GTPA has 4X10/100/1000Base-T(X) P.S.E.
(Power Sourcing Equipment) ports. P.S.E. is a device (switch or hub for
instance) that will provide power in a PoE setup.
temperature range from -40 C to 70 C can satisfy most of operating environment. o o
Therefore, the switch is one of the most reliable choices for PoE Ethernet
application.
Features
IGPS-1411GTPA provide 4x10/100/1000Base-T(X) PoE (P.S.E.) ports
Support P.S.E. based on IEEE 802.3at standard up to 30 Watts per port
SFP port support 100Base-FX and 1000Base-X dual speed
Support auto-negotiation and auto-MDI/MDI-X
Support store and forward transmission
Support flow control
Rigid IP-30 housing design
DIN-Rail and wall mounting enabled

Power Connection Guide

PWR-2 1A@24V PWR-1 DC 50-57V
V2- V2+ V1- V1+
V- V+
Power Power
Supply V+ V- Supply
50 VDC 50 VDC
Warning
Device
+24V GND
Power
Supply
DIP Switch Function (Power Side)
DIP-1 DIP-2 Description
OFF OFF Power failure relay alarm disabled
ON OFF PWR-1 failure, relay alarm enabled
OFF ON
PWR-2 failure, relay alarm enabled
PWR-1 or PWR-2 failure,
ON ON
relay alarm enabled
Q I G
IGPS-1411GTPA
IGPS-1411GTPA
G
uide

Specifications

ORing Switch Model
Physical Ports
10/100/1000Base-T(X) P.S.E.
The wide operating Port with P.S.E.
10/100/1000Base-T(X) Port
in RJ45 Auto MDI/MDIX
100/1000Base-X SFP port
Technology
Ethernet Standards
MAC Table
Processing
LED Indicators
Power Indicator
Fault Indicator
10/100/1000Base-T(X) RJ45
port and PoE I ndicator (P1~P4)
10/100/1000Base-T(X) RJ45
port I ndicator (P5)
100/1000Base-X SFP port
Indicator

DIP-Switch

DIP-Switch 1
DIP-Switch 2
G
Fault contact
Frame Ground
Relay
Power
Redundant Input Power
DIP Switch Select for
Power Alarm Relay Output
Power Consumption(Typ.)
Overload Current Protection
Reverse Polarity Protection
Physical Characteristic
Enclosure
Dimension (W x D x H)
Weight (g)
Environmental
Storage Temperature
Operating Temperature
Operating Humidity
Regulatory approvals
EMI
EMS
Shock
Free Fall
Vibration
Warranty
1907-2-29IGPS1411GTP
IGPS-1411GTPA
4
1
1
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-X
IEEE 802.3z for 1000Base-X
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow control
IEEE 802.3at PoE specification (up to 30 Watts per port for P.S.E.)
8K MAC addresses
Store-and-Forward
Green: Power LED x2
Amber: Indicate PWR1 or PWR2 failure
Green on the left for port Link/Act.
Green on the right for PoE power injected.
Green for port Link/Act.
Amer for 10/100Mbps Link/Act
Green for port Link/Act.
Power-1 failed warning : (ON) enable, (OFF) disable
Power-2 failed warning : (ON) enable, (OFF) disable
Relay output to carry capacity of 1A at 24 VDC
Dual DC inputs 50~57VDC on 6-pin terminal block
6.3 Watts (Power device not included)
Present
Not Present
IP-30
26.1(W)x94.9(D)x144.3(H) mm (1.03x3.74x5.68inch.)
395g
o o
-40 to 85 C (-40 to 185 F)
-40 to 70 C (-40 to 158 F) o o
5% to 95% Non-condensing
FCC Part 15, CISPR (EN55022) class A
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge),
EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
IEC60068-2-27
IEC60068-2-32
IEC60068-2-6
5 years
PRINTED ON RECYCLED PAPER
Industrial Unmanaged Gigabit PoE Switch

Practical Operation

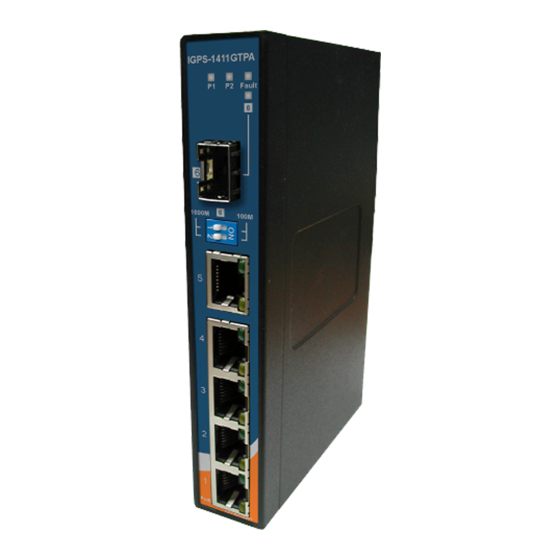

IGPS-1411GTPA can be used in connecting several PoE P.D. Ethernet devices like
IP-Camera or other Ethernet devices. In addition, there are two different power
inputs at terminal block to avoid interruption caused by power down.
primary DC power input fails, the backup power input will take over immediately to
guarantee a non-stop operation.
Connections of Ethernet devices
IGPS-1411GTPA

Front Panel

IGPS-1411GTPA
Power Fault LED
Power LED P1 P2 Fault Port 6 Link/Act LED
6
100/1000Base-X SFP Port
6
6
1000M 100M
DIP Switch Select for Port 6
Green: Link/Act
5
Amber: 10/100Mbps Link/Act
4
Green: Link/Act
3
Green: PoE power injected
2
DIP Switch Function
(SFP speed Selection)
DIP-1 DIP-2 Description
1
1000Mpbs
OFF OFF
PoE A
10/100/1000T
ON OFF N.A.
OFF ON N.A.
ON ON 1000Mpbs
Quick Installation Guide
Version 1.0
When the
Gigabit LAN Port
Gigabit PoE Port
