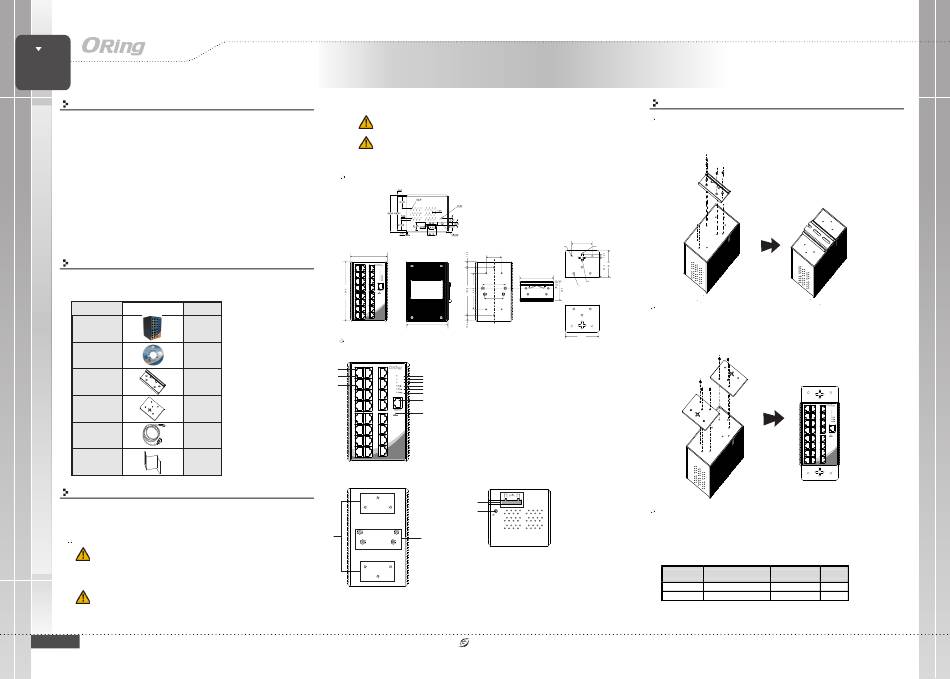

ORiNG IES-3240 Quick Installation Manual

SWITCH
I N D U S T R I A L
Q I
uick nstallation
Introduction

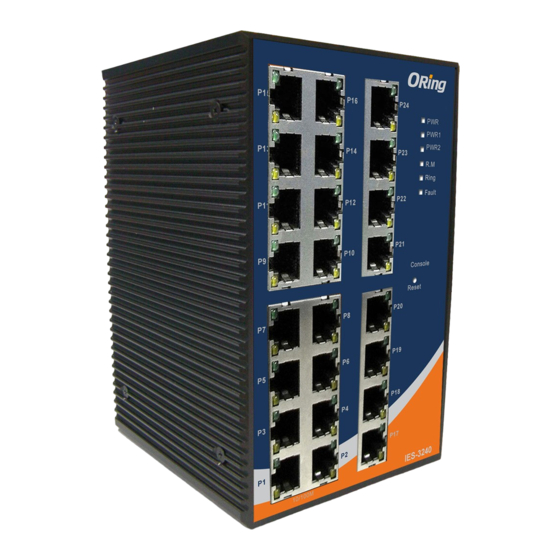

IES-3240 is managed Redundant Ring Ethernet switch with 24x10/100Base-T(X) ports.
With completely support of Ethernet Redundancy protocol, O-Ring (recovery time <
10ms over 250 units of connection), O-Chain, MRP*NOTE and MSTP/RSTP/STP (IEEE
802.1s/w/D) can protect your mission-critical applications from network interruptions or
temporary malfunctions with its fast recovery technology. O-Chain is the revolutionary
network redundancy technology that provides the add-on network redundancy topology
for any backbone network, O-Chain allows multiple redundant network rings of different
redundancy protocols to join and function together as a larger and more robust
compound network topology. O-Chain providing ease-of-use while maximizing fault-
recovery swiftness, flexibility, compatibility, and cost-effectiveness in one set of network
redundancy topology. All function of IES-3240 can be managed centralized and
convenient by a powerful windows utility — Open-Vision. In addition, the wide operating
o
temperature range from -40 to 75 C can satisfy most of operating environment.
Therefore, the switch is one of the most reliable choice for highly-managed Ethernet
application.
The product is open type, intended to be installed in and industrial control panel or an enclosure.
*NOTE : This function is available by request only.
Package Contents
The device is shipped with the following items. If any of these items is
missing or damaged, please contact your customer service representative for
assistance.
Contents Pictures Number
IES-3240
CD
DIN-rail Kit
Wall-mount Kit
Console Cable
QIG
Preparation
Before you begin installing the switch, make sure you have all of the package
contents available and a PC with Microsoft Internet Explorer 6.0 or later, for
using web-based system management tools.
Safety & Warnings
Elevated Operating Ambient: If installed in a closed or multi-unit rack
assembly, the operating ambient temperature of the rack environment may be
greater than room ambient. Therefore, consideration should be given to
installing the equipment in an environment compatible with the maximum
ambient temperature (Tma) specified by the manufacturer.
Reduced Air Flow: Installation of the equipment in a rack should be such
that the amount of air flow required for safe operation of the equipment is
not compromised.
Q I G
IES-3240
G
uide
Dimension
96.4
P15 P16 P24
P13 P14 P23
P11 P12 P22
P9 P10 P21
P7 P8 P20
P5 P6 P19
P3 P4 P18
P17
P1 P2
IES-3240
10/100M
X 1
Panel Layouts
Front View
X 1
8
P15 P16
9
X 1
P13 P14
10
P11 P12
X 2 P9 P10
P7 P8
P5 P6
X 1
P3 P4
P1 P2
10/100M
X 1
Rear View
1 1
1. Wall-mount screw holes
2. Din-rail screw holes
1907-2XX
IES-3240
Mechanical Loading: Mounting of the equipment in the rack should be such that a
hazardous condition is not achieved due to uneven mechanical loading.
Circuit Overloading: Consideration should be given to the connection of the equipment
to the supply circuit and the effect that overloading of the circuits might have on
overcurrent protection and supply wiring. Appropriate consideration of equipment
nameplate ratings should be used when addressing this concern.
Unit =mm (Tolerance ±0.5mm)
Ø4.00
40.0
PWR
PWR1
PWR2
88.0
58.0
48.0
108.5
1. Power LED
2. PWR1 LED
P24
1
PWR
2
PWR1 3. PWR2 LED
PWR2 3
P23
4
4. R.M. status LED
5
6 5. Ring status LED
P22
6. Faulty relay indicator
7
P21 7. Console port
8. Link/Act LED for Ethernet port
11
P20
9. Full/Half-duplex indicator
10. LAN ports
P19
11. Reset button
P18
P17
IES-3240
Top Panel
PWR-2 Fault PWR-1
1A@24V
1
V2- V2+ V1- V1+ DC 50-57V
2
2
1. Terminal blocks: PWR1,
PWR2 (12-48V DC), Relay
2. Ground wire.
PRINTED ON RECYCLED PAPER
Industrial Managed Ethernet Switch
Installation
DIN-rail Installation
Step 1: Slant the switch and screw the Din-rail kit onto the back of the switch, right in
the middle of the back panel.
Step 2: Slide the switch onto a DIN-rail from the Din-rail kit and make sure the switch
clicks into the rail firmly.
49.67
Ø5.00
Ø8.00
Ø4.00
Wall-mounting
Step 1: Screw the two pieces of wall-mount kits onto both ends of the rear panel of the
switch. A total of six screws are required, as shown below.
Step 2: Use the switch, with wall mount plates attached, as a guide to mark the
correct locations of the four screws.
87.9
Step 3: Insert a screw head through the large parts of the keyhole-shaped apertures,
and then slide the switch downwards. Tighten the screws for added stability.
Network Connection
The switch provides standard Ethernet ports. According to the link type, the switch uses
CAT 3,4,5,5e UTP cables to connect to any other network devices (PCs, servers,
switches, routers, or hubs). Please
specifications.
Cable Types and Specifications:
Cable Type
10BASE-T Cat. 3, 4, 5 100-ohm
100BASE-TX Cat. 5 100-ohm UTP
Version 2.1
P15 P16 P24
PWR
PWR1
PWR2
P13 P14 P23
P22
P11 P12
P9 P10 P21
P7 P8 P20
P19
P5 P6
P3 P4 P18
P1 P2 P17
IES-3240
10/100M
refer to the following table for cable
Max. Length Connector
UTP 100 m (328 ft) RJ-45
UTP 100 m (328 ft) RJ-45
Quick Installation Guide
