USER MANUAL
IP Audio Window Intercom Kit
N-XC65-W
TOA Canada Corporation
Page 1 of 22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N-XC65-W and is the answer not in the manual?

Questions and answers

Summary of Contents for Toa N-XC65-W

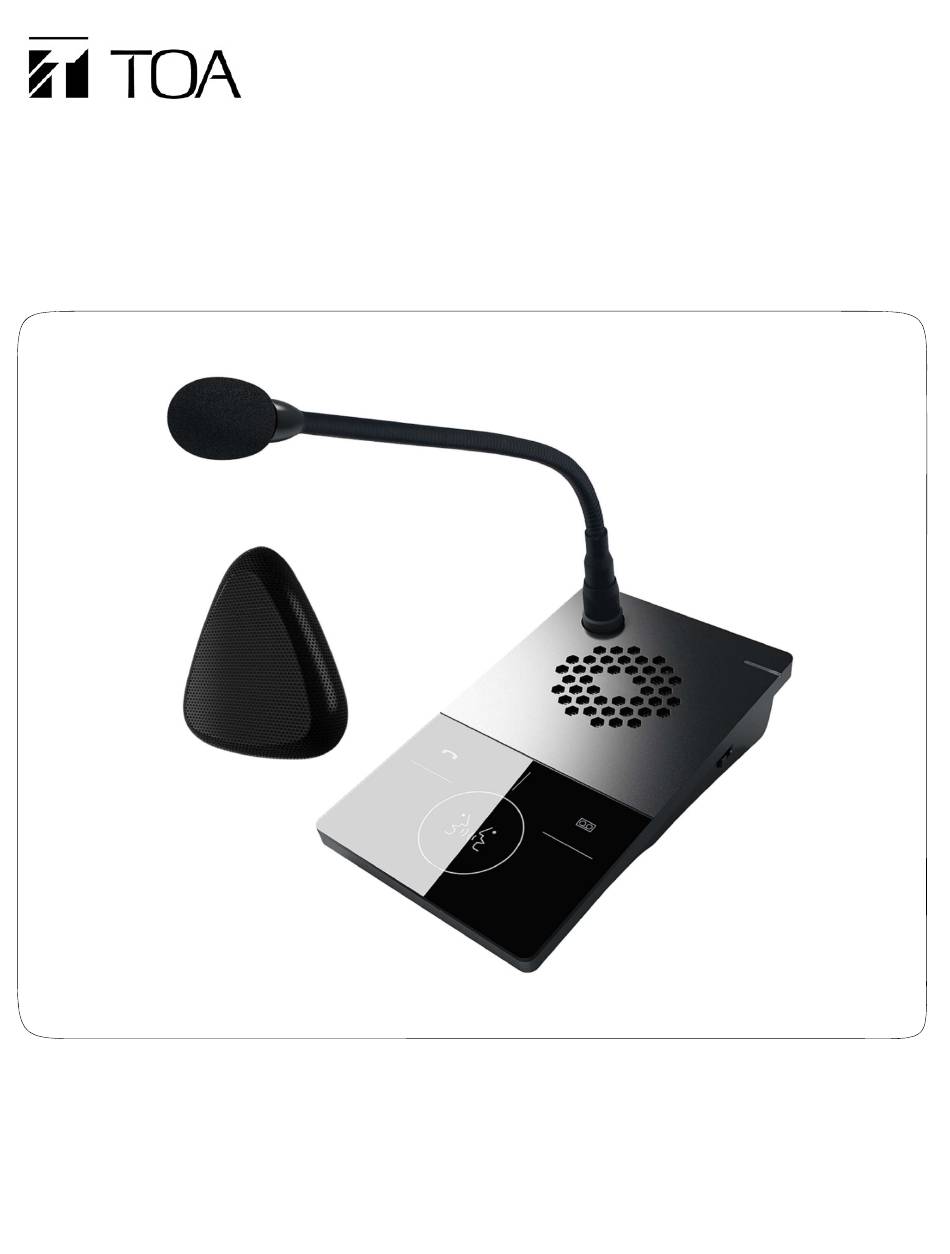

  • Page 1 USER MANUAL IP Audio Window Intercom Kit N-XC65-W TOA Canada Corporation Page 1 of 22...
  • Page 2: Table Of Contents

    Table of Contents Summary ..............................4 1.1. Safety Precautions ..........................4 1.1.1. Warning and Reminding ......................4 1.1.2. Settings and Installation ......................4 1.1.3. Using the Intercom ........................4 1.2. Product Introduction ......................... 5 1.3. Features ............................. 5 1.4. Hardware Interface Introduction ....................... 6 1.4.1.
  • Page 3 4.3. Receiving Broadcasts ........................21 4.4. Recording ............................21 4.5. Engineering Mode ........................... 21 Troubleshooting ............................. 21 5.1. Why can’t the terminal talk to others? ................... 21 5.2. Why the terminal is “offline”? ......................21 5.3. Web Page is behaving abnormally? ....................22 Page 3 of 22...
  • Page 4: Summary

    1. Summary 1.1. Safety Precautions • Please abide by the warning and the relevant safety tips. • Please take this manual in convenient place for future reference. 1.1.1. Warning and Reminding This symbol means there are potential safety issues, it may cause death or serious injury when incorrectly operating.
  • Page 5: Product Introduction

    • Do not touch the device when lightning storms are active • Do not put any liquid containers or metal objects on the device. If the container fell and liquids penetrated the device, this may lead to fire or electric shock. •...
  • Page 6: Hardware Interface Introduction

    • Support for remote supervisor intercom, one-button call to the terminal specified by the server. • Intelligent equipment self-check, detects the state of internal and external components. Abnormalities are indicated with a local prompt. • Distinguished LED shows the state of the internal window intercom. •...
  • Page 7 【Side】 ① Scene mode adjustment switch: Three scene modes are available: 1. Noisy(to the front) 2. Standard(in the middle) 3. Quiet(to the back) Standard is the default mode. 【connection wiring】 Power interface: connect with 12V/1.5A power. ① Network interface: insert the cable to the switch. ②...
  • Page 8: External Window Intercom Module

    1.4.2. External Window Intercom Module 【External window intercom module】 Loudspeaker/MIC: ①  Loudspeaker: amplify the audio from the internal window intercom.  Microphone: pick up the audio at the external window intercom module. Connector to the internal window intercom module. ②...
  • Page 9 (3)Gooseneck microphone 1 PCS (4)Power adapter (12V/1.5A) 1 PCS (5) (3*100mm) 3 PCS Wire binder (6)Self adhesive c able clamp 3 PCS (7)Wire terminal 1 PCS (8)Bushings (cable guidance) 1 PCS (9)EV-cotton 1PCS (10)Installation manual 1 PCS Page 9 of 22...
  • Page 10: Wiring

    2.2. Wiring Connect the connector of the power adapter to the power interface of internal window intercom (red colored connector). Connect the connector of the external window intercom module with the corresponding connector of the internal window intercom module. Connect the Ethernet LAN cable to the RJ45 connector of the internal window communication module. 2.3.
  • Page 11: Using The Intercom Built-In Web Page

    Note: When using the windows 7 system, please use the administrator mode, and switch off the firewall and any 3 party firewall software. This scanning tool can only be used when the computer and intercom are on the same network. Please ensure that the computer and the target intercom are the only devices connected to the network or use a direct (crossover) cable between computer and intercom.
  • Page 12: Network Parameters

    After pressing Enter, you land on the configuration web page of the IP internal window intercom module. 3.2. Network Parameters The parameters have the following meanings: You can choose to set a static IP manually or obtain an IP Connection Type automatically from DHCP server MAC Address The physical address of the terminal.
  • Page 13: Device Parameters

    3.3. Device Parameters The parameters have the following meanings: The device number Terminal ID, this number identifies the intercom module when more than one intercom is in the network. Range 1-999, the factory default is 1. Receive Port Device communication port Power-on Local When Enabled, the device will automatically detect whether Detection...
  • Page 14: Broadcast Parameters

    3.5. Broadcast Parameters The parameters have the following meanings: The encoding format of the host during broadcast, controlled Encoding Format by the server. The sampling rate of the host during broadcast, controlled by Sampling Rate the server. The volume of the audio output when the host is Output Volume broadcasting, controlled by the server.
  • Page 15: Intercom Parameters

    3.6. Intercom Parameters The parameters have the following meanings: The encoding format of the host during intercom, controlled Encoding Format by the server. The sampling rate of the host during intercom, controlled by Sampling Rate the server. Network Intercom The volume of the network input source during intercom. Input Volume Network Intercom The volume of the network output source during intercom.
  • Page 16: Monitor Parameters

    As the intercom receiver, you can choose to answer When Receiving automatically or manually, allow to hang up or forbid to hang Intercom Enabled: during the conversation with the remote terminal, press the intercom button to add external window intercom into the conversation to make a three-party intercom conversation;...
  • Page 17: Recording Parameters

    3.8. Recording Parameters The parameters have the following meanings: Analog Output Set the output volume for analog recording. Volume Digital Output Set the output volume for digital recording. Volume* Check “Enable Digital Recorder” to enable intercom 24-hour digital recording. Recording server: Enter the IP address and port of the digital Enable digital recording server.
  • Page 18: Port Modification

    3.10. Port Modification You can change the port of the WEB access. When not using port 80, please add the corresponding port behind the address when accessing this WEB page. (e.g.: if the port is 8888, the access address will be http://XXX.XXX.XXX.XXX:8888.
  • Page 19: Restart Device

    3.12. Restart Device Restart the device. Note: the all modified parameters on the web page will be effective after restarting the device. 3.13. Firmware Upgrade Click “System Tools” and “Upgrade Firmware” to enter the firmware upgrade page. Click on “Into Firmware Upgrade” to put the device in firmware upgrade mode. Note: Please do not upgrade the firmware without any special needs or reason.
  • Page 20: Systems Log

    3.14. Systems Log The log file contains all system events. Click “Clear All The Log” to empty the log. 4. Basic Functions 4.1. Local Intercom After connecting the internal and external window intercom modules, turn on the power. Press the intercom button of internal window intercom (the blue light goes ON). The internal window intercom can perform digital full-duplex HD intercom with the external window intercom.
  • Page 21 4.3. Receiving Broadcasts Are automatically answered without pressing any button. 4.4. Recording The internal window intercom can output analog audio and be connected to a DVR to automatically record on the hard disk of the recorder. 4.5. Engineering Mode 1) When the device is in the standby state, long press the intercom button and the left button at the same time. 2) Release the button after hearing 3 key clicks and the intercom button is ON, enter the engineering mode (the left and right button are always ON, the intercom button flashing).
  • Page 22 Please clear the web browser cache or use another web browser. Traceability Information for USA Manufacturer: Authorized representative: TOA Corporation TOA Electronics, Inc. 7-2-1, Minatojima-Nakamachi, Chuo-ku, Kobe, 1 Harmon Plaza, Suite 602, Secaucus, Hyogo, Japan New Jersey 07094, USA Traceability Information for Canada...
