Vari QuickFlex Walls Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

QuickFlex Walls
®
2 People Required
Patent and trademark information: vari.com/patents | ©2020 Varidesk, LLC All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QuickFlex Walls and is the answer not in the manual?

Questions and answers

Related Manuals for Vari QuickFlex Walls

Summary of Contents for Vari QuickFlex Walls

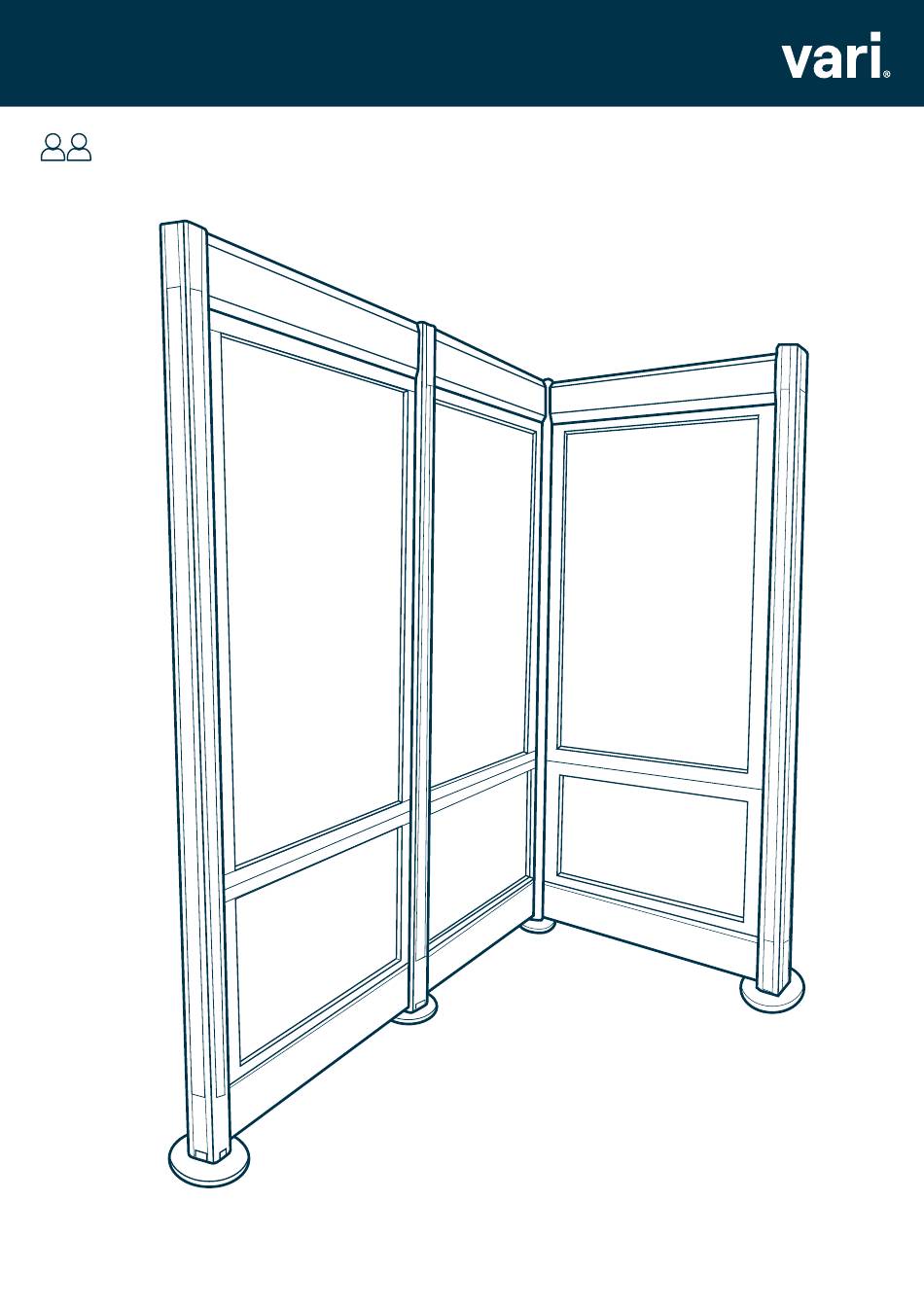

  • Page 1 QuickFlex Walls ® 2 People Required Patent and trademark information: vari.com/patents | ©2020 Varidesk, LLC All rights reserved.

  • Page 2: Table Of Contents

    Standard System Assembly Standard Panel Assembly ........1 End Panel Set Assembly (Against Existing Wall) .

  • Page 3: Standard Panel Assembly

    Standard Panel Assembly 2 People Required NOTE: READ ALL INSTRUCTIONS AND PLAN LAYOUT BEFORE BEGINNING TO ASSEMBLE UPPER STRETCHER LOWER STRETCHER UPPER PANEL STRETCHER COVER BASE PLATE LOWER PANEL POST...
  • Page 4 Posts come in one box. Make sure the top cap of the post is attached, as these can come loose in transit. Secure the post onto the base plate. Use the included Allen key to tighten both sides of the post into the base.
  • Page 5 LOWER STRETCHER Before continuing and building wall sections, please read the following instructions thoroughly. It’s important to start building walls at the highest floor point, and you must insert and secure all upper and lower stretchers before putting in any panels. Once the first 2 posts are assembled, place them where you want to assemble the first wall section.
  • Page 6 Use a level to check alignment and connection of the stretchers, making sure all stretchers are fully seated and secure before installing any panels. Base plates can be adjusted to level if necessary. If you’re creating a corner with your panels, you will need to change the position of the side caps to ensure that you can seat and secure your stretchers.
  • Page 7 To install the upper panel, ensure there is one person on each side of the panel. Similar to the lower panel, align the bottom channel of the upper panel with the lower panel and push in while pressing the top spring until it latches in. Once the panel has securely clicked into the bottom of the upper stretcher, push up on the draw latches to lock the connection in place.
  • Page 8 Once all panels are installed, install the stretcher covers on both sides of the upper and lower stretchers. Align the cover with the stretcher and slide down to clip in place.

  • Page 9: End Panel Set Assembly (Against Existing Wall)

    End Panel Set Assembly 2 People Required NOTE: READ ALL INSTRUCTIONS AND PLAN LAYOUT BEFORE BEGINNING TO ASSEMBLE UPPER STRETCHER LOWER STRETCHER UPPER PANEL STRETCHER COVER SMALL BASE PLATE BASE PLATE LOWER PANEL POST POST BRACE...
  • Page 10 Posts come in one box. Make sure the top cap of the post is attached, as these can come loose in transit. Secure the post onto the small base plate as close to the wall as possible. Use the included Allen key to tighten both sides of the post into the base.
  • Page 11 LOWER STRETCHER Before continuing and building wall sections, please read the following instructions thoroughly. It’s important to start building the walls at the highest floor point, and you must insert and secure all upper and lower stretchers before putting in any panels. Once the first 2 posts are assembled, place them where you want to assemble the first wall section.
  • Page 12 Remove the side caps at the bottom of the post. Push the post brace in and up to lock on both sides of the post. Adjust foot height to level. The post brace can be used against a wall in conjunction with a wall anchor for additional stability (see page 39 for anchoring Check level and connection of stretchers, making sure all stretchers are instructions).
  • Page 13 To install the upper panel, ensure there is one person on each side of the panel. Similar to the lower panel, align the bottom channel on the upper panel with the lower panel and push in while pressing the top spring until it latches in. Push up on draw latches to secure upper stretcher.

  • Page 14: Installing A Doorway

    Installing a Doorway 2 People Required NOTE: READ ALL INSTRUCTIONS AND PLAN LAYOUT BEFORE BEGINNING TO ASSEMBLE SMALL UPPER PANEL SMALL LOWER PANEL DOOR FRAME DOOR POST SMALL UPPER STRETCHER DOOR STRETCHER COVER BASE PLATE SMALL LOWER STRETCHER SMALL STRETCHER COVER DOOR HANDLE...
  • Page 15 For kits designed to have a doorway with no door, install the small panel next to where the doorway will be. Install the upper stretcher between the doorway posts, and add the door stretcher cover on the door stretcher. Users with no door are now finished with their installation. For kits with a door to install, you will need to install the frame into the doorway.
  • Page 16 Install the frame into the wall system by aligning the door frame with the post. Insert into one post and then the other. Push down on the stretcher and then push up on the draw latches to secure the frame in place. Once installed, check the level and spacing of the door frame.
  • Page 17 To install the door handle, use the 3-piece handle plates included. You can also use any standard door handle and follow the manufacturer’s installation instructions. To use the included handle, pull the door lock mechanism to full length before inserting into the lock cutout shown in Step 5A.

  • Page 18: Installing Stability Rails

    Installing Stability Rails NOTE: READ ALL INSTRUCTIONS AND PLAN LAYOUT BEFORE BEGINNING TO ASSEMBLE Set Screw Set Screw 4-WAY CRADLE 2-WAY CRADLE POST EXTENSION CAP 4-WAY CRADLE Draw SIDE CAP Latch Draw Latch...
  • Page 19 4-WAY CRADLE 4-WAY CRADLE NOTE: Four-way cradles need to be installed when a short stability rail is used, at the ends of a long stability rail, and any points of intersection. Two-way cradles are only used in the center of the long stability rails. Insert the four-way cradle into the post, aligning the set screw with an open and accessible face.
  • Page 20 Release the draw latches. Align the open faces of both the two-way cradle and the four-way cradle, and insert the stability rail. 4-WAY CRADLE 2-WAY CRADLE With the rail in place, insert the draw latch through the slot on the four-way cradle. Pull the draw latch back to tension the rail to the four-way cradle.
  • Page 21 With all desired stability rails installed, add the connector side caps to any exposed open faces on the four-way cradles. Slide caps down and into the four-way cradle. Insert top caps on the four-way and two-way cradles.

  • Page 22: Adding Power Strip Bracket

    Adding Power Strip Brackets KIT INCLUDES: Remove the post side cap from the QuickFlex Wall post by pushing up and pulling out.
  • Page 23 Insert the Vari power strip into the bracket cord first. Once the device is in place, ensure the cord is able to move freely. See the images above to confirm proper installation.

  • Page 24: Adding Stability Brace Kits

    Adding Stability Brace Kits KIT INCLUDES: (COMES ASSEMBLED) To remove the plastic cover from the brace, use your fingers to expand the bottom of the cover and then slide it off of the metal brace.
  • Page 25 Prepare the brace to be attached to the post by turning the threaded bolt counter- clockwise to raise the rubber foot. This can be done by hand or with a flat head screwdriver. The stability brace kit is designed to add support on longer stretches of wall. Locate the posts to be braced (we recommend one brace kit or perpendicular wall every 3 posts), then remove the plastic cover from the bottom of the post to reveal the anchor point.
  • Page 26 Insert the brace into the anchor point and pull up to secure it to the post. Then turn the threaded bolt clockwise to secure the rubber foot to the base of the post. This can be done by hand or with a flat head screwdriver. Repeat steps 1-4 to attach the other brace to the opposite side of the same post.

  • Page 27: Removing Stability Brace Kits

    Removing Stability Brace Kits Remove the plastic cover from the brace by using your fingers to expand the bottom of the cover and then sliding it off of the metal brace. Turn the threaded bolt counter-clockwise to raise the rubber foot. This can be done by hand or with a flat head screwdriver. Pull the stability brace down to detach it, then pull it away from the post.

  • Page 28: Anchoring To Existing Wall

    Anchoring to Existing Wall KIT INCLUDES: WASHER WALL DRYWALL ANCHOR ANCHOR WALL BOLT SCREW ANCHOR ANCHOR Pair the wall anchor with the small base plate and post brace piece. Remove the existing post cap and replace it with the anchor cap. Back the screws out of the post anchor bracket to be able to lock the anchor piece and fully secure it to the post.

  • Page 29: Anchoring To Ceiling

    Anchoring to Ceiling KIT INCLUDES: ANCHOR Remove the existing post cap and replace it with the anchor cap. Back the screws partly out of the anchor cap to be able to lock the piece and fully secure it to the post. Once the cap is installed, screw in the eyebolt and anchor to the ceiling.

  • Page 30: Disassembly

    Disassembly Pull off the stretcher covers. With a person on both sides of the upper panel, press the spring latch in to remove the upper panel. Remove the lower panel by pulling in the Undo the draw latches and push up on the tabs to release the lower panel.
