Anova BRP121 Assembly Instructions

anovafurnishings.com
888.535.5005 tel

tools needed

• 9/16" Open-end or Box-end Wrench
• Ratchet with 9/16" Socket

Assembly HArdwAre:

8 x 8 x
3/8"
3/8" X 1.5"
Hex Nut
Hex Head Bolt

Assembly:

NOTE: Before assembling the Nuts to the Bolts, it is recommended that a light oil or petroleum jelly be applied to the Bolt threads.
1. Inspect the shipping container contents for damage and to determine that all components and hardware are present.

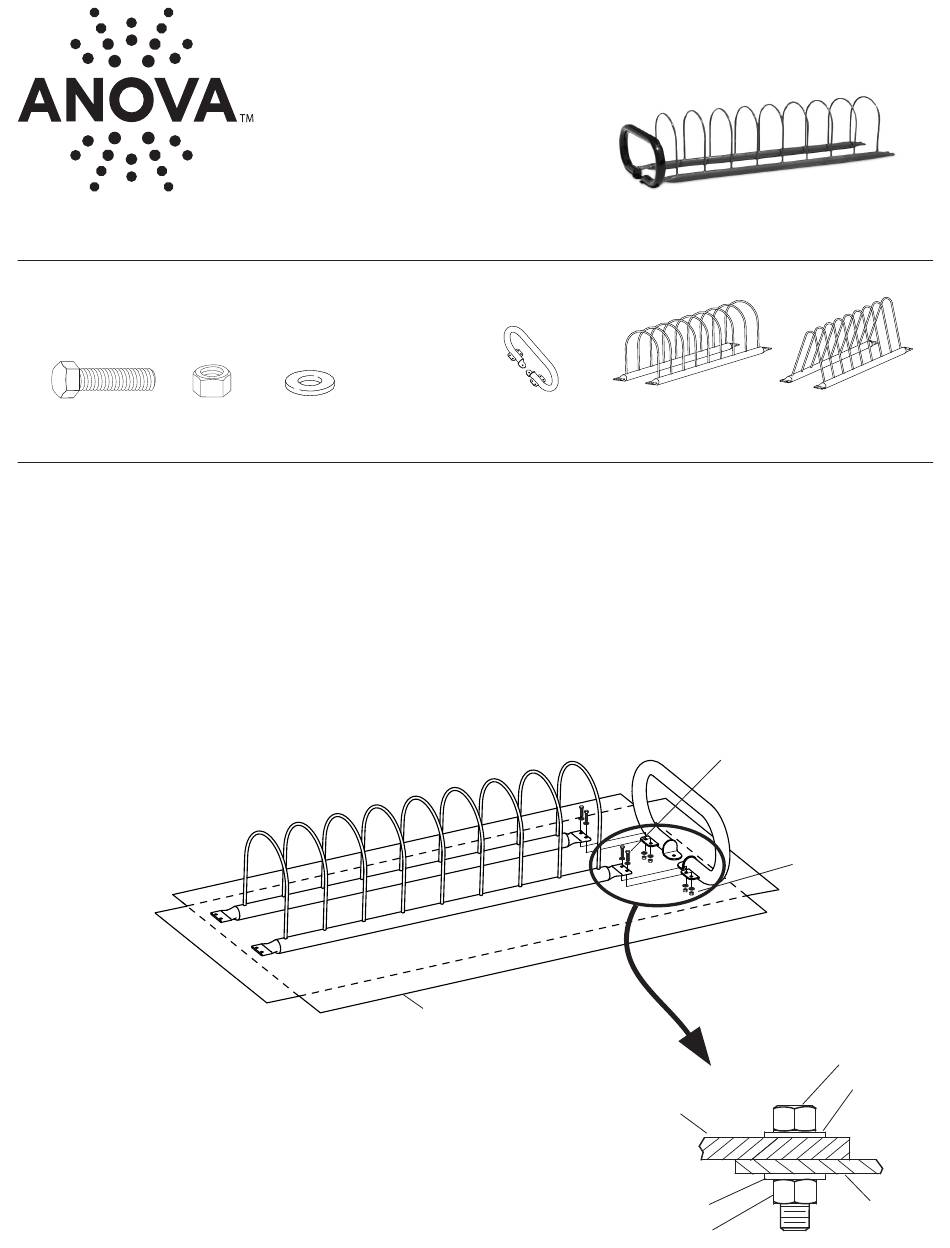

2. Place the Inner Rack on the packaging cardboard or other soft surface. Position the Rack Center near one end of the Rack
Extension.
3. Align the mounting holes in the bracket on the Rack Center underneath the mounting holes at the end of the Rack Extension.
Install a Flat Washer onto one of the 1.5" long Bolts and insert the Bolt through both parts, with the Bolt head on the top surface
of the Inner Rack. Install a Washer and Hex Nut on the end of the Bolt.
Leave the hardware finger tight so that adjustments can be made.
Install a Bolt and Washer through the other set of mounting holes in that end of the Rack Extension and Rack Center bracket
and install a Washer and Nut. Tighten the hardware.
Assembly InstructIons
Ultra Hoop Bike Rack Extension
brP121
Ultra Triangular Bike Rack Extension
brP122
16 x
3/8"
Flat Washer
Packaging cardboard
or other soft surface
bencH comPonents:
1 x
Rack Center Rack Extension
(Hoops or Loops)
Inner Rack
Flat Washer
Nut
Model BRP121 shown.
Inner Rack design may vary.
OR
1 x
1.5" Long Bolt
and Flat Washer
Flat Washer
and Nut
Hex Head Bolt
Flat Washer
Rack End
