Anova Rendezvous L1360 Assembly Instructions

anovafurnishings.com
888.535.5005 tel

tools needed:

• 9/16" Open-end or Box-end Wrench
• Ratchet with 9/16" Socket
• #4 Phillips Screwdriver
• Level

Assembly HArdwAre:

NOTE: Hardware arrives in two packages; one with each Bench End.
4 x
3/8" X 1.5"
Phillips Head Screw Nylock Hex Nut

Assembly:

The assembly is a two-person operation.
1. Inspect the shipping container contents for damage and to determine that all components and hardware are present.
2. Place the Contour Bench Seat on the shipping
packaging or other soft surface to avoid
scratching the product.
Note: Before assemblying the Nuts to the
Screws, it is recommended that a light oil
or petroleum jelly be applied to the screw
threads

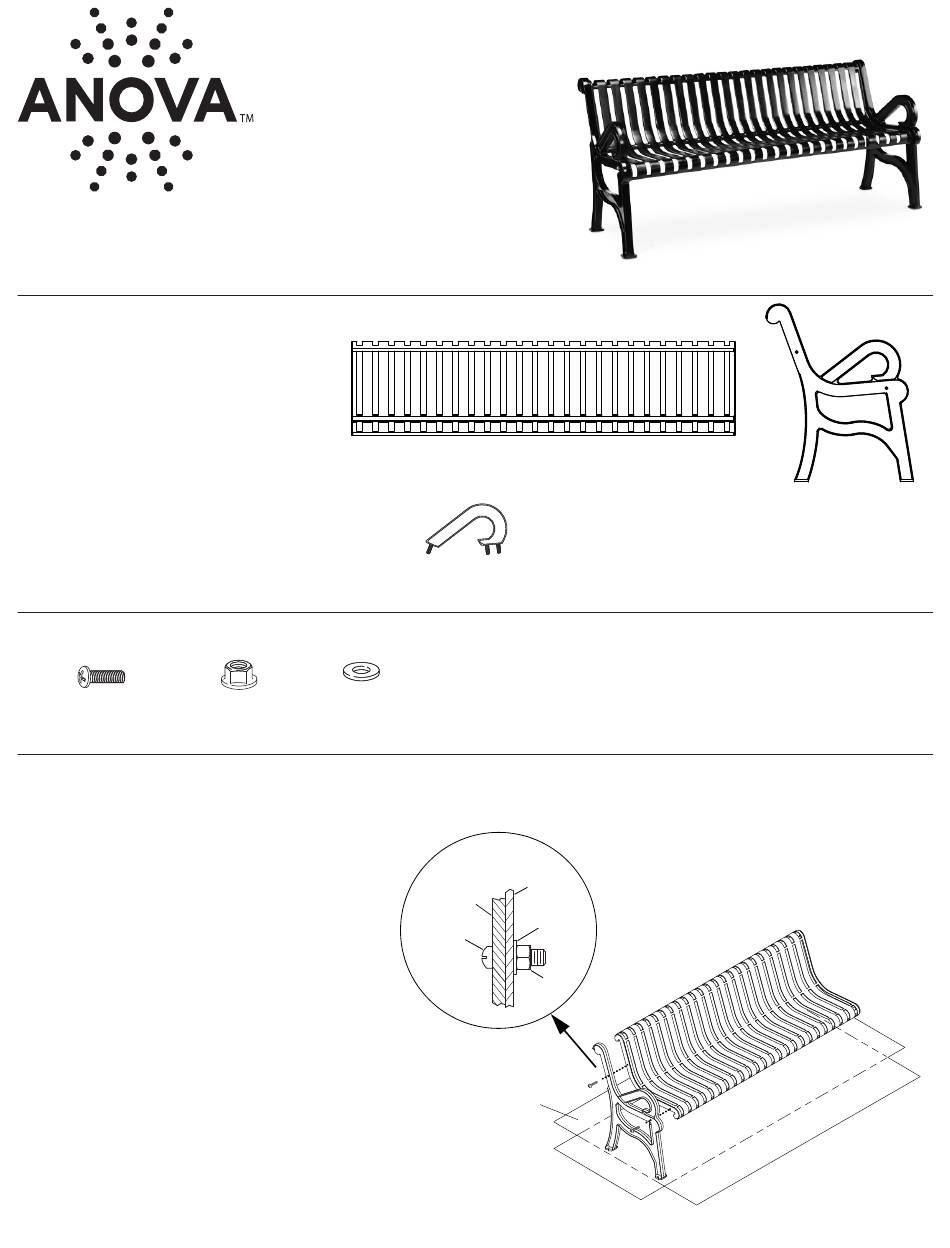

3. Align the mounting holes in one of the
Bench Ends with the holes in the appropriate
end of the Bench Seat. Insert one of the
provided Screws through both parts, with
the screw head on the outside surface of the
Bench End. Install a Washer and Nut on the
inside end of the Screw.
Note: Always hold the screw head still and turn
the Nut. This protects the surface of the
Bench around the Screw from scratches (the
Washer protects the nut side of the Bench)
Leave the hardware finger tight so that
adjustments can be made to level the bench
seat.
Assembly InstructIons
l1360 6 ft Rendezvous Bench
l1360A 6 ft Rendezvous Bench
l1361
4 ft Rendezvous Bench
l1504 4 ft Horizon Bench
l1506 6 ft Horizon Bench
l1506A 6 ft Horizon Bench
4 x 4 x
3/8" 3/8"
Washer
1 x Contour Bench Seat
1 x Center Armrest
Model L1360a only
Contour
Bench Seat
Bench End
Washer
Screw
Nut
Packaging plastic and
cardboard to avoid
scratching the product

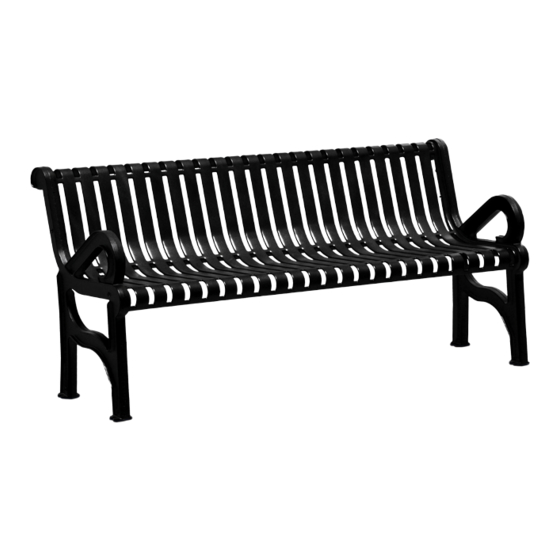

Model L1360 shown.
Seat pattern may vary.
2 x Bench Ends
