TOOLS NEEDED:
9/16" Open-end or box-end wrench
•
• Ratchet with 9/16" socket
• 18V (or more) driver with No. 3 Phillips head bit
• Rubber mallet
(4) Bench Supports
TABLE
COMPONENTS
(2) Table Supports
Assembly Instructions

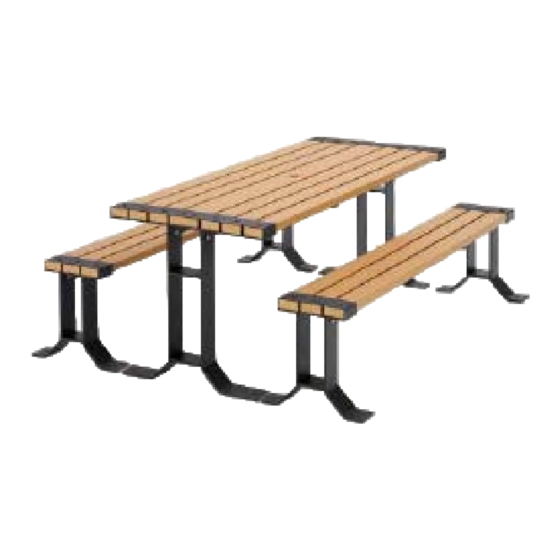

RCPWT63 Wainwright 6' Picnic Table and Benches Set
(6) Seat Planks
(4) Seat Braces
:
(2) Table Braces
(1) Table Center Plank
(2) Seat Channels
(1) Table Channel
(6) Table Planks
(4) Seat End Caps
(2) Table End Caps
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Anova Wainwright RCPWT63
Summary of Contents for Anova Wainwright RCPWT63
- Page 1 Assembly Instructions RCPWT63 Wainwright 6’ Picnic Table and Benches Set anovafurnishings.com 888.535.5005 tel TOOLS NEEDED: 9/16” Open-end or box-end wrench • • Ratchet with 9/16” socket • 18V (or more) driver with No. 3 Phillips head bit • Rubber mallet (6) Seat Planks (4) Bench Supports (2) Seat Channels...
- Page 2 Assembly Instructions RCPWT63 Wainwright 6’ Picnic Table and Benches Set BENCH ASSEMBLY: Assembly is a two-person operation. Inspect the shipping contents for damage and to determine that all of the components and hardware are present. 2. Locate the two bench supports and place them the approximate distance of the seat on the packaging cardboard or other soft surface to avoid scratching the product.
- Page 3 Assembly Instructions RCPWT63 Wainwright 6’ Picnic Table and Benches Set BENCH ASSEMBLY: 5. Place three seat planks over the seat supports and seat braces. NOTE: When laying out the planks, make sure the surface with the pre-drilled pilot holes face downward.
- Page 4 Assembly Instructions RCPWT63 Wainwright 6’ Picnic Table and Benches Set TABLE ASSEMBLY: Assembly is a two-person operation. Inspect the shipping contents for damage and to determine that all of the components and hardware are present. 2. Locate the two table supports and place them the approximate distance of the table on the packaging cardboard or other soft surface to avoid scratching the product.
- Page 5 Assembly Instructions RCPWT63 Wainwright 6’ Picnic Table and Benches Set TABLE ASSEMBLY: 7. Locate the four 3” carriage bolts and insert them through the two center mounting holes on each of the table end caps, through the center plank, and through the table support. Insert 2.5”...
- Page 6 Tighten all of the hardware throughout the seat. Move the assembled table to the desired location. NOTE: After two weeks, retighten all of the hardware. Note: Please contact Customer Care at 1-866-797-1761 when ordering replacement parts. 7/6/2017 Copyright 2017 ANOVA ® Made in USA...
