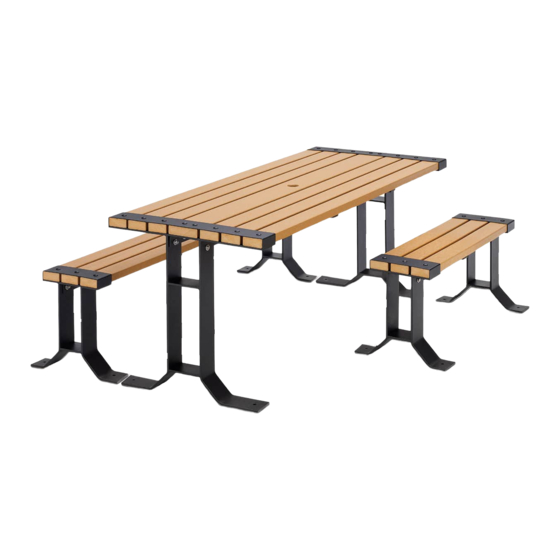

6’ ada picnic table set

Advertisement

anovafurnishings.com
888.535.5005 tel

TOOLS NEEDED:

9/16" Open-end or box-end wrench
• Ratchet with 9/16" socket
• 18V (or more) driver with No. 3 Phillips head bit
• Rubber mallet
(4) Bench Supports

TABLE COMPONENTS:

(2) Table Supports
Assembly Instructions
RCPWT63A Wainwright 6' ADA Picnic Table Set
(6) Seat Planks
(3) Seat Braces
*Length 6' or 32" to
match type of seat .
(2) Table Braces
(1) Table Center Plank
(2) Seat Channels
*Length 6' or 32" to
match type of seat.
(1) Table Channel
(6) Table Planks
(4) Seat End Caps
(2) Table End Caps
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wainwright RCPWT63A and is the answer not in the manual?

Questions and answers

Summary of Contents for Anova Wainwright RCPWT63A

  • Page 1 Assembly Instructions RCPWT63A Wainwright 6’ ADA Picnic Table Set anovafurnishings.com 888.535.5005 tel TOOLS NEEDED: 9/16” Open-end or box-end wrench • • Ratchet with 9/16” socket • 18V (or more) driver with No. 3 Phillips head bit • Rubber mallet (6) Seat Planks (4) Bench Supports (2) Seat Channels (4) Seat End Caps...
  • Page 2 Assembly Instructions RCPWT63A Wainwright 6’ ADA Picnic Table Set BENCH ASSEMBLY: Assembly is a two-person operation. Inspect the shipping contents for damage and to determine that all of the components and hardware are present. 2. Locate the two bench supports and place them the approximate distance of the seat on the packaging cardboard or other soft surface to avoid scratching the product.
  • Page 3 Assembly Instructions RCPWT63A Wainwright 6’ ADA Picnic Table Set BENCH ASSEMBLY: 5. Place three seat planks over the seat supports and seat braces. NOTE: When laying out the planks, make sure the surface with the pre-drilled pilot holes face downward. Place the seat end cap over each end of the seat planks.
  • Page 4 Assembly Instructions RCPWT63A Wainwright 6’ ADA Picnic Table Set TABLE ASSEMBLY: Assembly is a two-person operation. Inspect the shipping contents for damage and to determine that all of the components and hardware are present. 2. Locate the two table supports and place them the approximate distance of the table on the packaging cardboard or other soft surface to avoid scratching the product.
  • Page 5 Assembly Instructions RCPWT63A Wainwright 6’ ADA Picnic Table Set TABLE ASSEMBLY: 7. Locate the four 3” carriage bolts and insert them through the two center mounting holes on each of the table end caps, through the center plank, and through the table support. Insert 2.5”...
  • Page 6 Tighten all of the hardware throughout the seat. Move the assembled table to the desired location. NOTE: After two weeks, retighten all of the hardware. Note: Please contact Customer Care at 1-866-797-1761 when ordering replacement parts. 7/6/2017 Copyright 2017 ANOVA ® Made in USA...
