WATSON BAHN Assembly Instructions Manual
Hide thumbs
Also See for BAHN:
- Assembly instructions manual (10 pages) ,
- Assembly instructions (5 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for WATSON BAHN
Summary of Contents for WATSON BAHN
- Page 1 BA HN R AC EWAY AS S EM BLY I N STR UC TI O N S V.1.1 5/16 INS-BNRACEWAY...
-
Page 2: Tool Tips

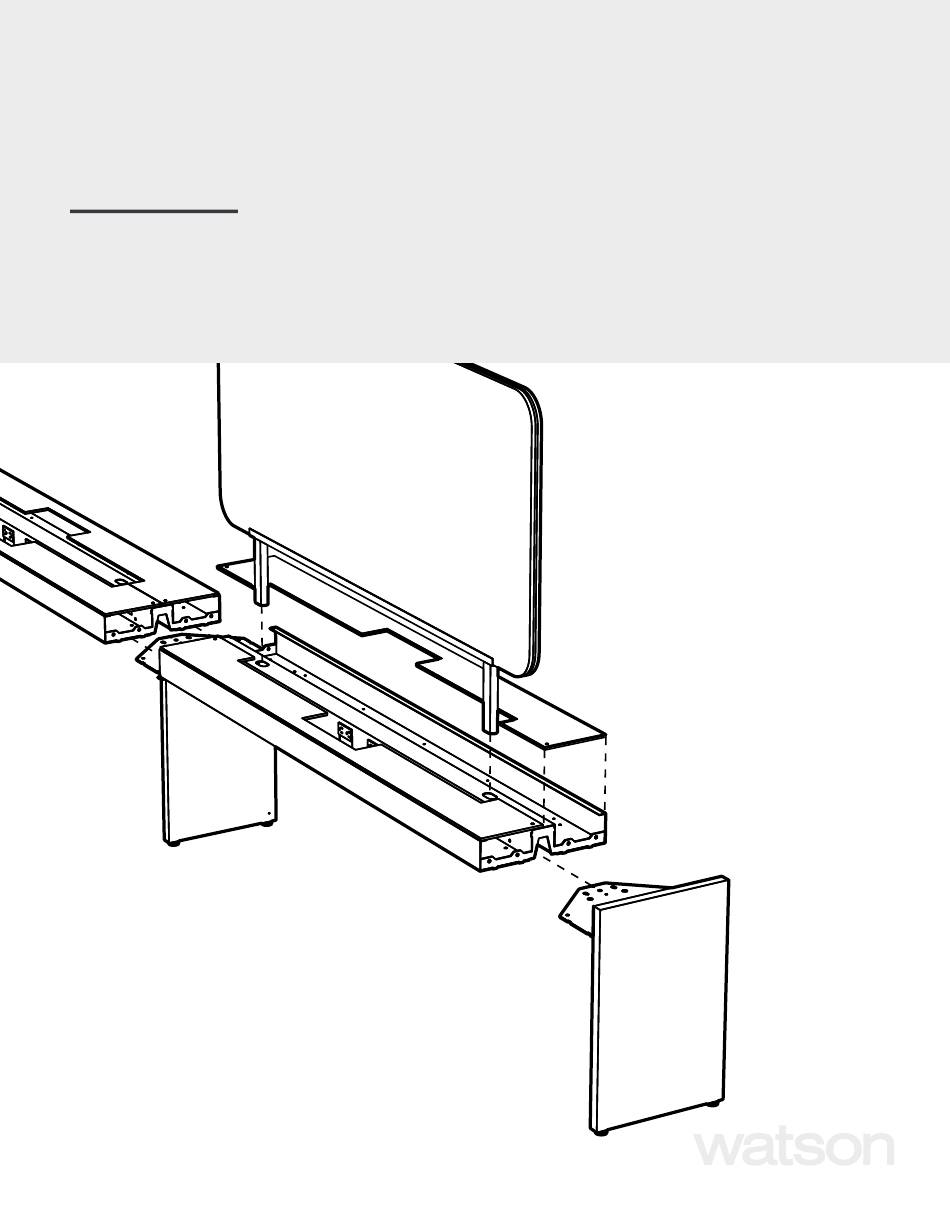

RACEWAY TYPICAL S pi n e S c re en En d Supp ort M i d Su p p o r t Ra c e w ay Li ds WARNING — Risk of Fire or Electric Shock. It is WARNING —... - Page 3 Infeed Jumper Cable Sleeve Raceway Spine Screen Single-Sided Single-to-Dual Raceway Lid Mid Support Mid Support Single Sided Power Retaining Bracket Heavy Version Single-Sided Raceway Single-Sided Single-Sided Single-Sided Aisle End Support Wall End Support Aisle End Screen Bahn Raceway Assembly INS-BNRACEWAY...
- Page 4 End: Attach the support bracket to the panel leg with #10x⅝” screws (x4) Mid: Attach the double bracket with #10x⅝” screws (x8) End Screen: Attach fabric Aisle screens with ¼-20 x 1” Philips pan head screw (x4) Bahn Raceway Assembly INS-BNRACEWAY...
- Page 5 Note — Connections are keyed to snap in one way with a positive click. Do not modify the jumper or harness block as this creates a safety hazard and voids the warranty. For heavy power, jumper length is -6" Bahn Raceway Assembly INS-BNRACEWAY...
- Page 6 S cr e e ns (o p ti o n al ) Twist the knockouts to open the holes for the Spine Screen supports. Insert Spine Screen supports into Raceway opening and secure with 5/16-18x¾” screws (x2). Bahn Raceway Assembly INS-BNRACEWAY...
- Page 7 Le ve l + Li ds Level the Raceway using leveling glides. Secure the Raceway to the floor using the anchors and brackets Attach the lids and secure with ¾” Keyhole Shank Rivet, Nylon (x2 per lid) Bahn Raceway Assembly INS-BNRACEWAY...
- Page 8 E nd of R un In feed Co n nec t io n Floor or Wall Connection: Connect the power infeed to the wire harness block at any location on the run and secure with clamp and 10-32 x 3/8” screw Bahn Raceway Assembly INS-BNRACEWAY...
-
Page 9: Wiring Schematic
WARNING: RISK OF FIRE OR ELECTRIC SHOCK. THIS OFFICE FURNISHING SYSTEM MAY BE CONNECTED TO MORE THAN ONE SOURCE OF SUPPLY. ALL SOURCES MUST BE DISCONNECTED PRIOR TO ANY SERVICING. NO SINGLE CIRCUIT MAY BE POWERED BY MORE THAN ONE SOURCE. Bahn Raceway Assembly INS-BNRACEWAY... - Page 10 Not es Bahn Raceway Assembly INS-BNRACEWAY...
