MSSTAC6 Step Motor Drive User Manual
Note: Signal integrity is best with an 80 mA load (use 300 ohms at 24V, 150 ohms at 12V or 62 ohms
at 5V.)
Motor Enable Input
The Motor Enable Input
drive can be on, with power going to it, but the motor will not be active.
2.2.5

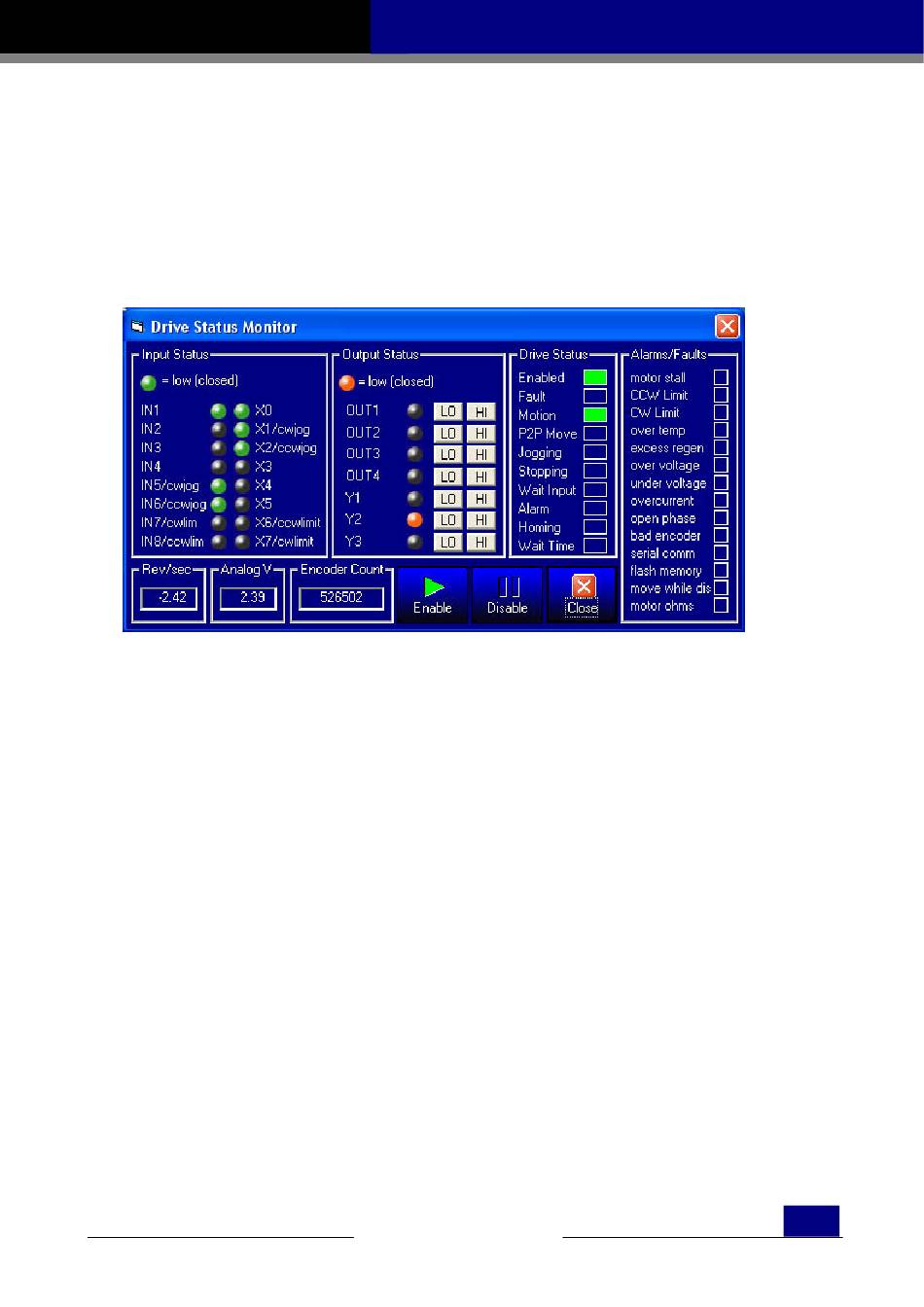

Status Monitor

The status monitor, accessed from the Drive menu, displays real time drive status including:
•
State (open or closed) of all inputs
•
State of outputs (click the HI/LO buttons to force an output)
•
Motor speed
•
Voltage at the analog input
•
Encoder count (if you're using the optional encoder)
•
Alarms or faults
•
Status flags (enabled, motion, jogging, etc.)
The motor can be enabled or disabled from the Status Monitor by clicking the buttons at the bottom of
the display.

3 Error Codes

Status LED
The MSSTAC6 includes a bi-color (red/green) LED to indicate status. Normal status is indicated by a
solid green LED. If the LED changes to red, an error has occurred. The errors are indicated by combinations
of red and green flashes as follows:
allows the power stage of the drive to be turned on and off.
www.moons.com.cn
MOONS'
MOONS'
This means that the
