MSSTAC6 Step Motor Drive User Manual

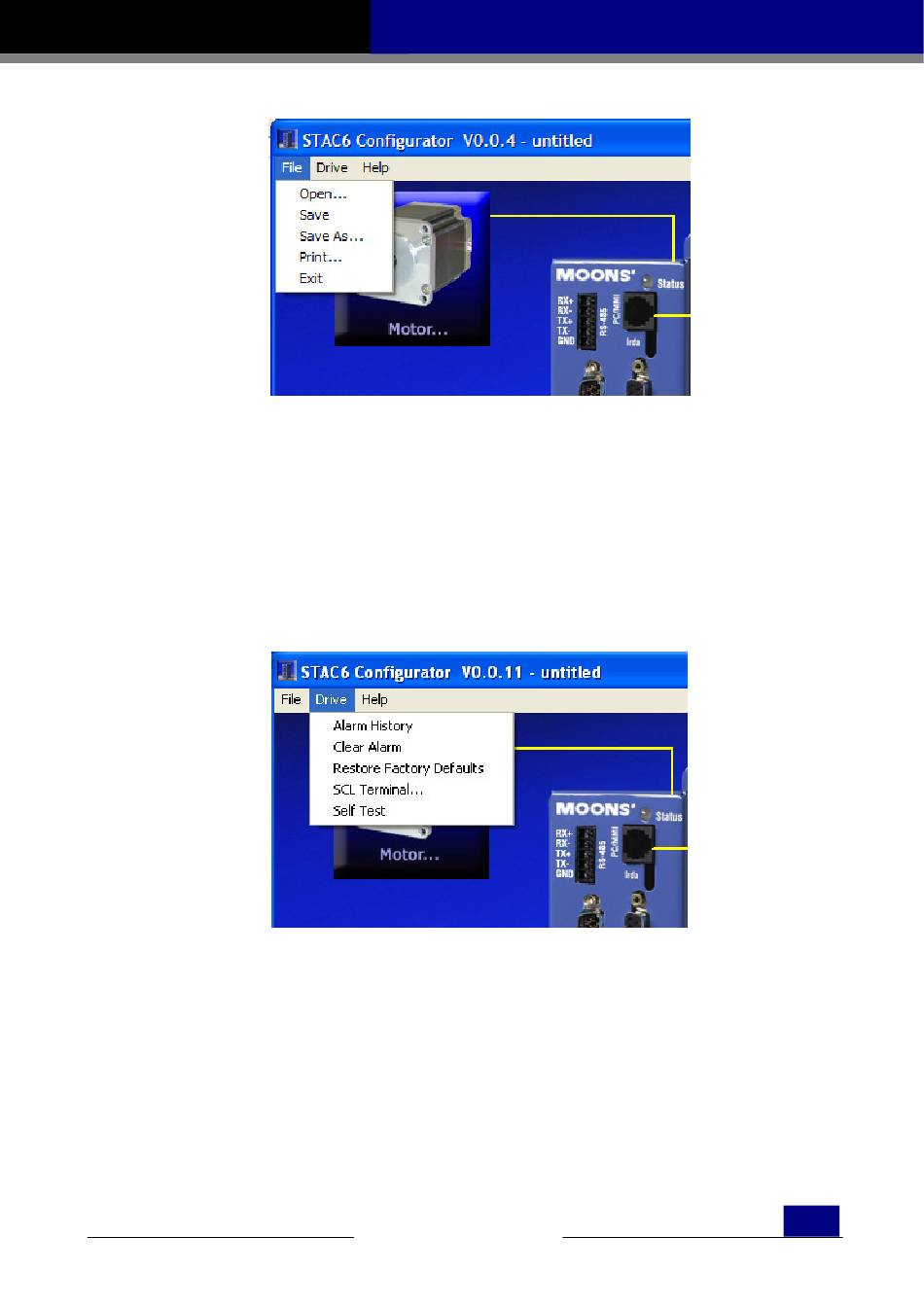

The Drive menu provides access to several features:
Alarm History will display the last eight alarms and/or faults. If an alarm or fault condition is being
displayed, Clear Alarm will clear it.
Restore Factory Defaults will return the drive to its original factory configuration.
SCL Terminal allows SCL commands to be entered to test the drive's response, creating an opportunity
for commands to be learned before host control software is written.
Self Test rotates the motor a half revolution in alternating directions at a low speed to allow verification
that the motor is connected and functioning properly.
The Help Menu allows access to the help screens via Contents, gives Contact information for Moons',
links the user to the Website, and gives technical information about ST Configurator.
