MSSTAC6 Step Motor Drive User Manual
Digital Outputs

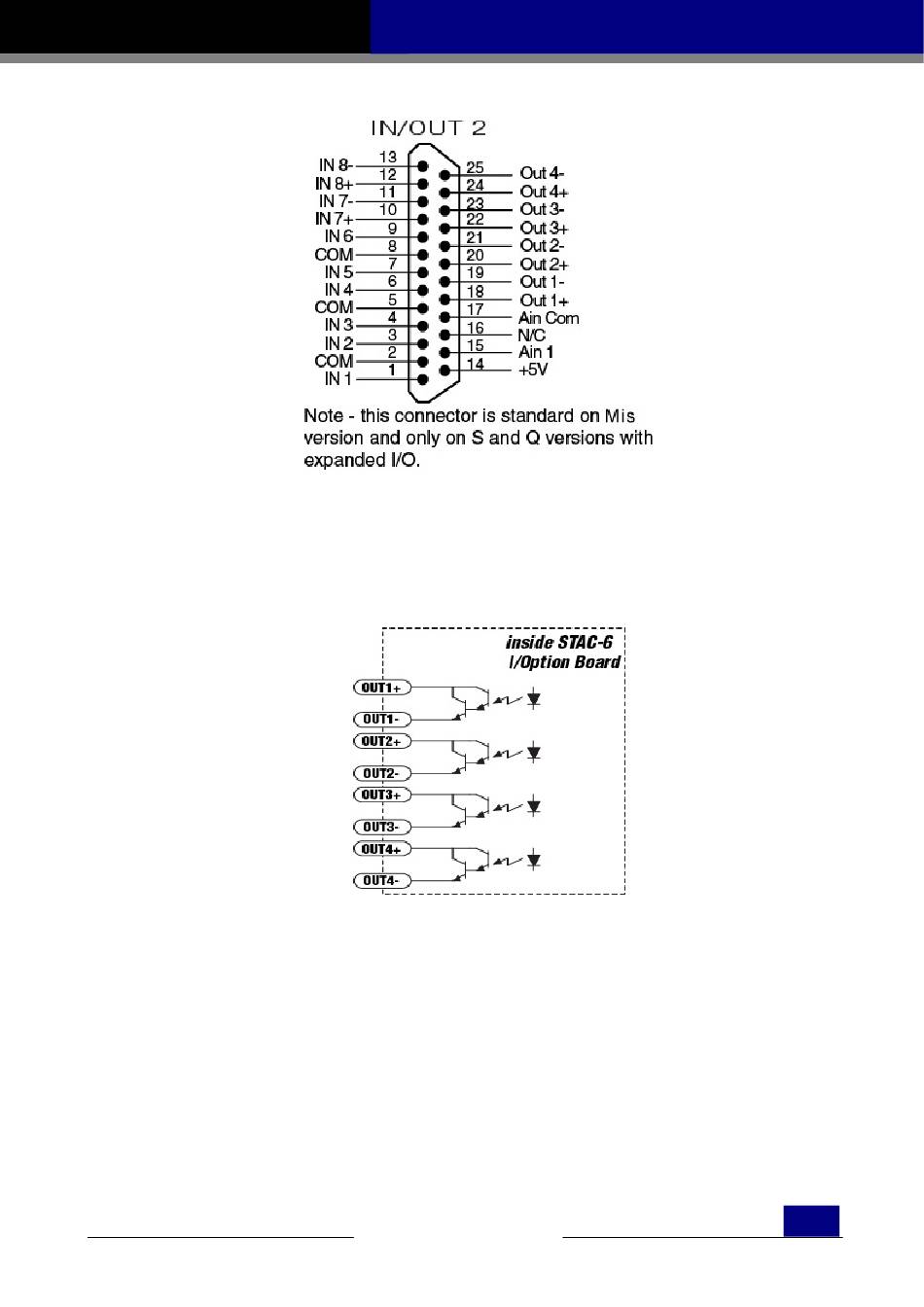

The expanded I/O board adds four additional programmable outputs. The outputs can be used to drive
LEDs, relays and the inputs of other electronic devices like PLCs and counters. On the IN/OUT 2 connector
outputs, both the "+" (collector) and "-" (emitter) terminals of each transistor are available on the connector
pins. This allows each output to be configured for current sourcing or sinking.
Diagrams of each type of connection follow.
Do not connect the outputs to more than 30VDC. The current through each output terminal
must not exceed 100 mA.
