ACV 381094-19 Installation Manual

ACV 381094-19 Installation Manual

Double din kit for fiat stilo

Advertisement

Quick Links

© 07/2009 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.
• Fiat Stilo
Compatible with these Double DIN double DIN devices
Double DIN Navigation
1
2
Double DIN Kit contents

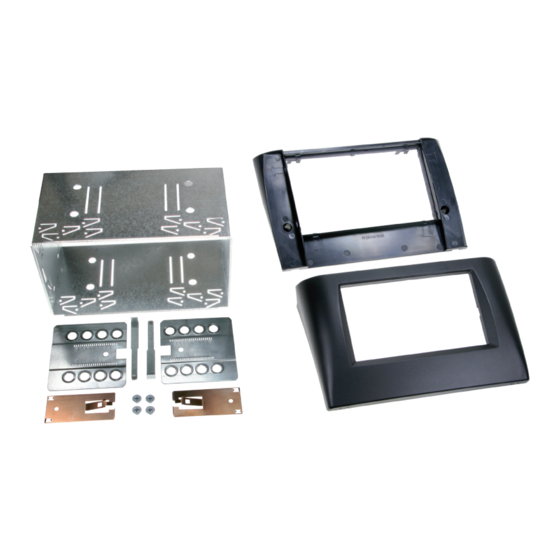

• (1) Metal Frame
• (2) Installation Kit
All installation work must be performed by a qualified professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
Installation Manual
Double DIN Kit
black:
381094-19
rubber-touch:
391094-19
3
4
Installation Kit (3)
Trim Frame (4)
