All installation work must be performed by a qualified professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
8.
Reinstall hazard light switch bar
Reinstall dashboard panel
• Fiat 500 L 10/2012->
Compatible with these double DIN devices
Double DIN Navigation
5
4
3
1
Double DIN
Installation Manual
colour / part-no.:
black / 381094-28
5
4
2

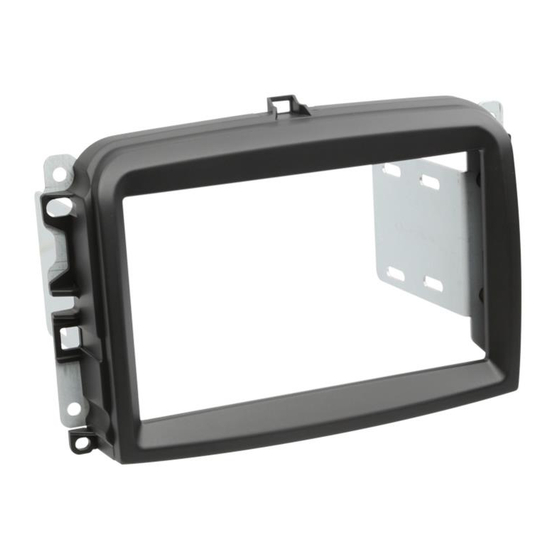

(1) Facia Plate
(2) Mounting bracket right
(3) Mounting bracket left
(4) self-tapping screw with collar
(5) flat headed screw
