ACV 381094-22 Installation Manual

Double din kit for fiat 500 2007-

Download this manual

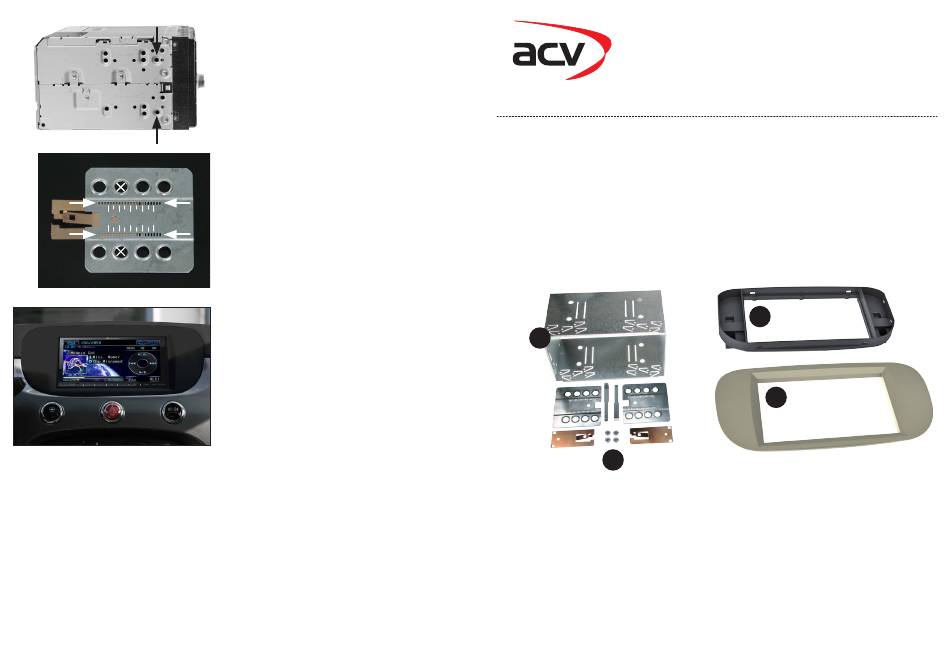

4. Mount the metal brackets with the

double DIN head unit

The position of the copper coloured

holder can be adjusted to your needs

(see sample photo below)

Push metal frame into mounting

frame. Place both on dashboard

Connect all required circuit points

Push Double-DIN navigation into

metal frame until it snaps in

Place facia plate

• Fiat 500 2007->

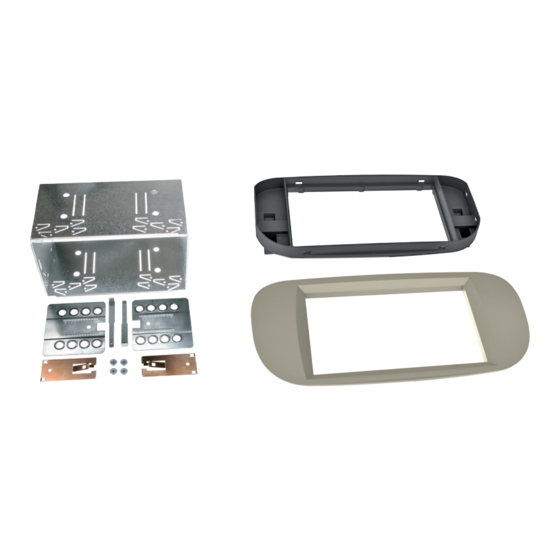

Double DIN Set contents

• (1) Metal Frame

• (2) Mounting accessories

• (3) Mounting Frame

• (4) Facia Plate

Installation Manual

Double DIN Kit

381094-22 (black)

381094-23 (beige)

Need help?

Do you have a question about the 381094-22 and is the answer not in the manual?

Page 1 Installation Manual 4. Mount the metal brackets with the Double DIN Kit double DIN head unit 381094-22 (black) The position of the copper coloured 381094-23 (beige) holder can be adjusted to your needs (see sample photo below) • Fiat 500 2007->...
Page 2 Remove 4 buttons of OEM-Radio (see arrows) Use radio release keys to remove radio Remove 2 screws of air vent Cut here air vents (see dashed line) cover. Remove air vent cover Insulate holes with duct tape All installation work must be performed by a qualified professional installer only. The manufacturer / dealer is not liable for any kind of incidential or indirect damages.

381094-23
