9.
Connect all required circuit
points
Place Double DIN head unit
on dashboard
Fix it with two screws (see arrows)
10. Place facia plate
11. Re-install uppter tray
on dash board
• VW Touareg II (7P/7PH) 04/2010->
Compatible with these double DIN devices
Double-DIN Navigation
2

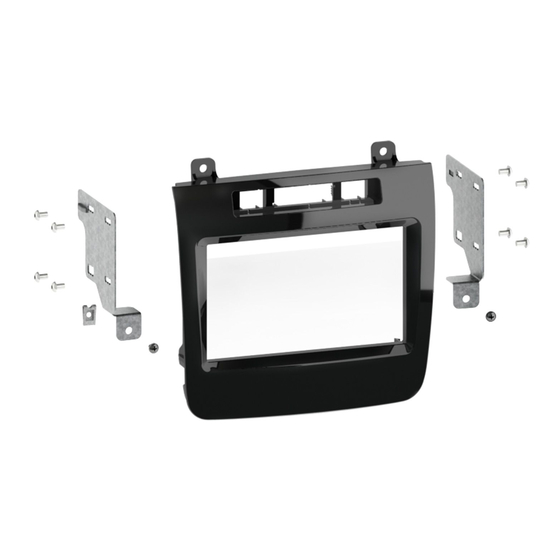

• (1) facia plate
• (2) mounting brackets
Installation Manual
colour / part-no.:
black: 381320-23
1
2
Advertisement
Table of Contents
Related Manuals for ACV 381320-23
Summary of Contents for ACV 381320-23
- Page 1 Place Double DIN head unit on dashboard Fix it with two screws (see arrows) colour / part-no.: • VW Touareg II (7P/7PH) 04/2010-> black: 381320-23 10. Place facia plate Compatible with these double DIN devices Double-DIN Navigation 11. Re-install uppter tray on dash board •...
- Page 2 Open upper tray on dashboard Remove OEM head unit Locate screw in middle of upper tray (see arrow) Remove screw inside Remove button unit upper tray from OEM head unit Remove upper tray Attach OEM button unit to new facia place (see arrow) Remove screws of OEM head unit Attach mounting frames to double DIN head unit...
