ACV 381320-32-1 Installation Manual

Double din kit for vw golf vii

All installation work must be performed by a qualified professional installer only.

The manufacturer / dealer is not liable for any kind of incidential or indirect damages.

• VW Golf VII 2013->

Compatible with these Double-DIN devices:

Double-DIN Navigation

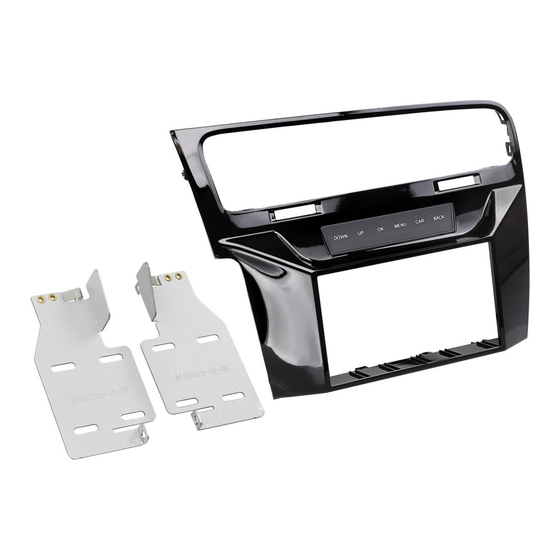

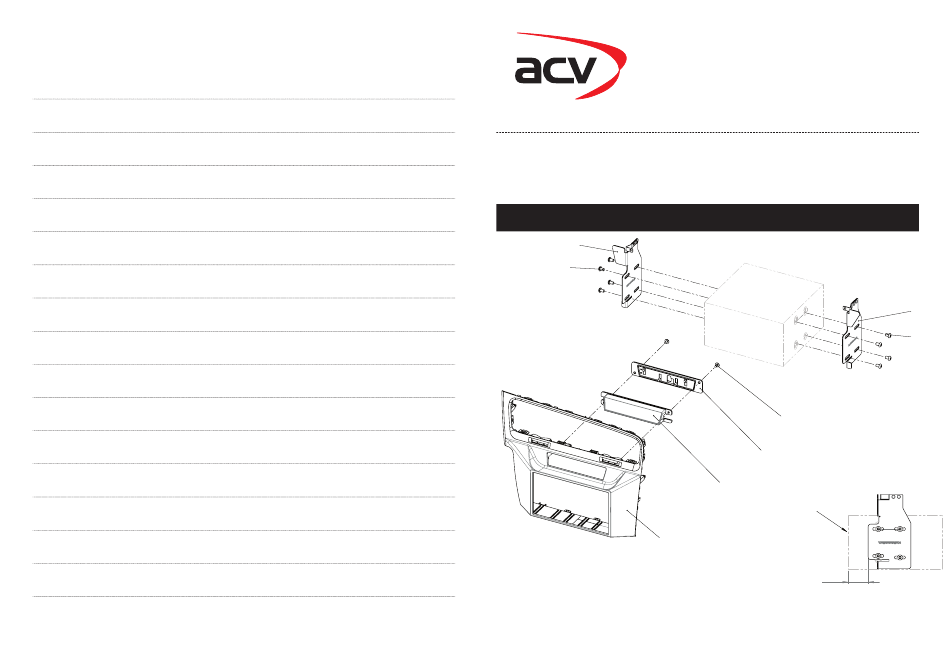

Double DIN Set contents

• (1) Facia Plate

• (4) Mounting Bracket Right

• (2) Cover

• (5) Mounting Bracket Left

• (3) Housing

• (6) Flat Headed Screw

• (7) Self Tapping Screw with Collar

Installation Manual

Double DIN Kit

piano black : 381320-32-1

pre-assembly Unit and Brackets

Unit front surface

~37

Table of Contents

Do you have a question about the 381320-32-1 and is the answer not in the manual?

Page 1 Installation Manual Double DIN Kit piano black : 381320-32-1 • VW Golf VII 2013-> Compatible with these Double-DIN devices: Double-DIN Navigation pre-assembly Unit and Brackets Unit front surface Double DIN Set contents • (1) Facia Plate • (4) Mounting Bracket Right •...
Page 2 Unclip and remove panel under OEM head unit Unclip OEM head unit panel Unclip air vents (specail VW tool may be required) Remove OEM head unit panel by pulling it torward your direction Insert radio release keys Remove OEM head unit All installation work must be performed by a qualified professional installer only.
Page 3 Several plastic parts must be cut and removed in order clear space for 2-DIN head unit a) Cut plastic (see arrows) and remove it b) Cut plastic bridge underneath removed plastic (see arrows)
Page 4 Remove air vent unit from OEM panel Mount air vent unit to double DIN head unit Connect all required circuit points. Mount double DIN head unit to dashboard. Place facia plate. Reinstall everything in reverse order to finish installation Dashboard after plastic has been cut away Mount mounting brackets to double DIN head unit pre-assembly Unit and Brackets...
