All installation work must be performed by a qualified professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
9.
Plug hazard light switch and
Passenger Airbag switch
Place OEM panel
Reinstall everything
in reverse order
• Toyota Auris 01/2013-> Typ (E15UT / E15UTN / HE15U)
Compatible with these navigation devices
Double DIN Navigation
4
3
Kit Content

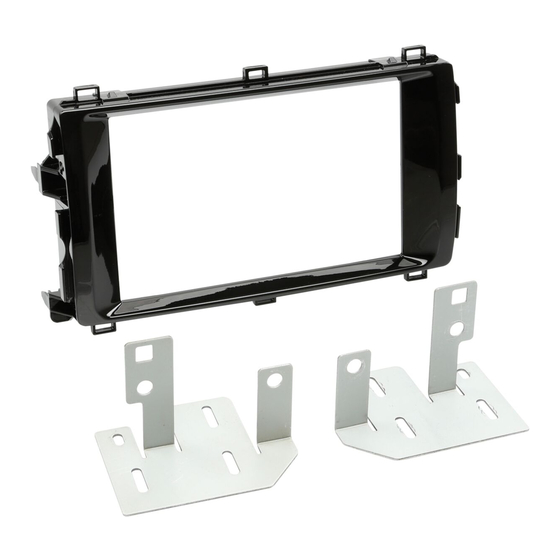

(1) Facia Plate
(2) Mounting bracket right
(3) Mounting bracket left
(4) Flat Headed Screw
Double-DIN Kit
Installation Manual
part-no.: 381300-24
colour: piano-black
2
1
