Summary of Contents for Kogan PREMIUM 15-IN-1

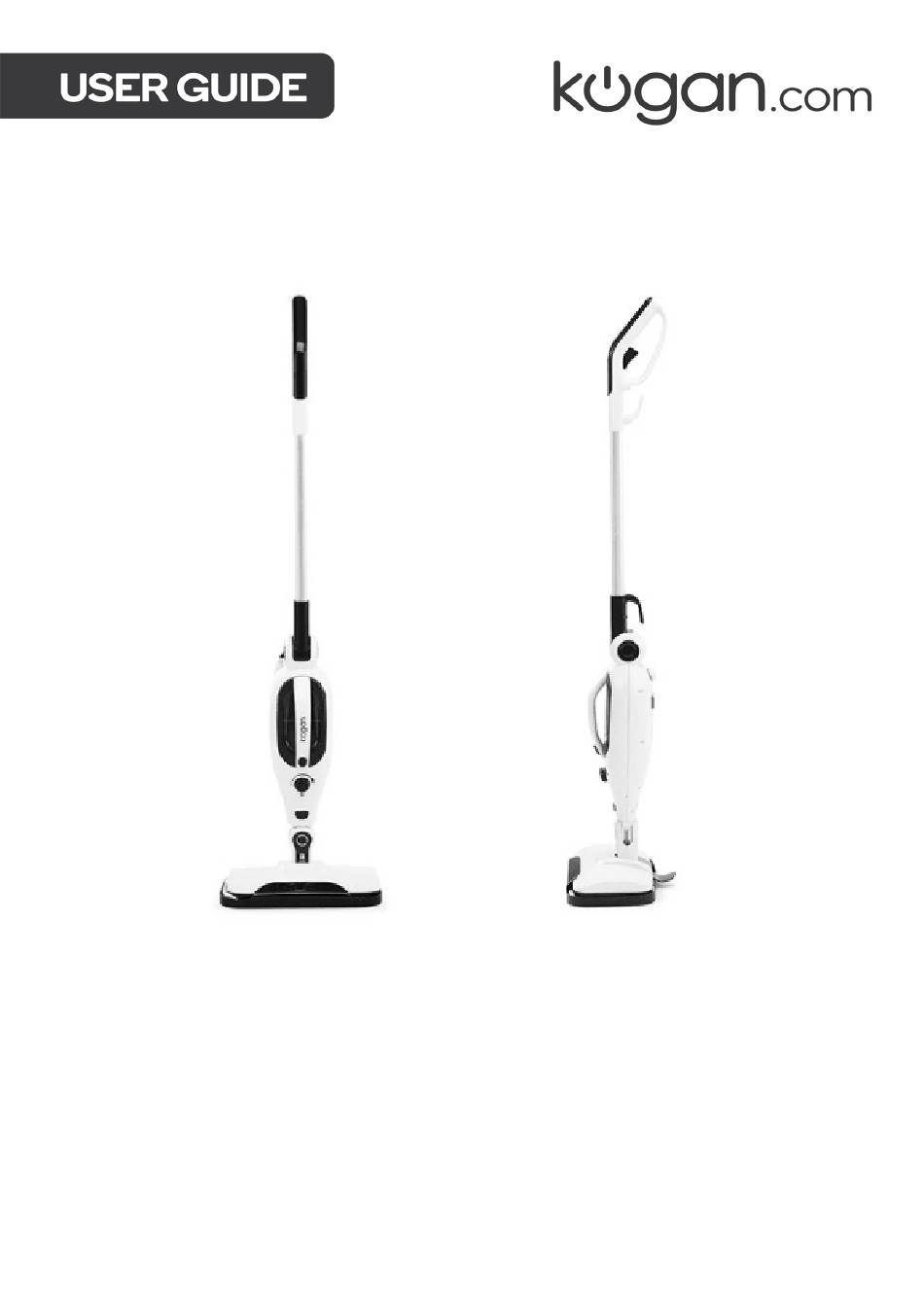

- Page 1 PREMIUM 15-IN-1 STEAM MOP KAMOP151STMA...
-
Page 3: Safety And Warnings
Always allow the appliance to cool completely (at least 30 minutes) before storing. • This appliance contains no user-serviceable parts. If it suffers any failure or damage, cease usage and contact Kogan Support after consulting the troubleshooting section of this manual. - Page 4 OVERVIEW 1. Handheld steam 7. Grout brush 13. Water tank 19. Floor head button 2. Steam adjusting 8. Scraper tool 14. Concentration 20. Carpet glider knob 3. Brush release 9. Fine nozzle 15. Handle 21. Microfibre pads button 16. Handle steam 4.
- Page 5 ATTACHMENTS Extension Pole Insert threaded connector on the bottom of Extension Pole base on the main unit (A). Assemble the handle (B). To adjust the length of Extension Pole: • Press the switch button to ensure the metal tube is secured. •...
- Page 6 Mop Head Align Mop Head with the main unit as shown (FIGURE 2), neck in line Steam Nozzle. Slide Mop Head neck into Steam Nozzle, pressing a button firmly until release button snaps through the hole. To remove Mop Head, press firmly on release button while simultaneously pulling Mop Head away from Steam Nozzle.
- Page 7 Jet Nozzle WARNING: The metal tip of the Jet Nozzle becomes hot during use. Do not touch the tip to avoid burns. Align Jet Nozzle with Steam Nozzle as shown (FIGURE 3). Slide Jet Nozzle into Steam Nozzle, pressing firmly until unit release button snaps through the hole.
- Page 8 Utility Head Align Utility Head with Steam Nozzle as shown (FIGURE 4). Slide Utility Head into Steam Nozzle, pressing firmly unit it slides in. To remove Utility Head, simply grasp it and pull it away from Steam Nozzle. Note: The Utility Head does not utilise a release button like the mop head and jet nozzle. Figure 4...
- Page 9 Using Accessory Tools Concentration nozzle: Concentrated Brushes: Hard-wearing for use on hard steam How to lift grime. Use on the car sealed surfaces. Always test before use. to tackle stubborn stains. Removes dirt in hard-to-reach places. Use with handheld wand and connector for other tools. Squeegee tool: Clean windows and Upholstery tool: Attach cloth to mirrors quickly and easily.
- Page 10 Utility Brushes WARNING: The metal tip of the Jet Nozzle becomes hot during use. Allow Jet Nozzle to cool for at least 5 minutes before attempting to connect/disconnect a Utility Brush. Align Utility Brush with the tip of Jet Nozzle as shown (A below) and press it firmly on as far is it will go.
-
Page 11: Operation
OPERATION Before First use Note that there may be residual water traces in the tank: this is due to quality control testing and does not indicate a defect with the product. Filling Water Tank Note: Do not remove or cut small rubber air valve on top of Water Tank Cop. Do not turn unit upside-down when Water Tank is full - some water may leak through the air valve. - Page 12 Using Multi-Purpose Steamer Note: Be sure that Water Tank has been filled and all desired accessories are connected before following these steps. For first-time use, remove protective plastic cover that is shipped on an electrical plug, Plug power cord into a convenient electrical outlet. Turn Steam Control Dial clockwise from "off"...
- Page 13 • Varnished/laminate hardwood flooring • Delicate fabrics • Wood cabinetry MEDIUM • Most flooring (sealed marble, stone & ceramic, vinyl etc.) • Countertops • Bath and Kitchen fixtures • Most routine cleaning tasks HIGH • Flooring in high-traffic areas (HIGH setting not recommended for hardwood floors) •...
- Page 14 this case, it is recommended to allow floor time to air-dry. A fan may be directed towards an area to facilitate drying. NOTE: Setting Steam Control Dial to LOW setting will help to minimise moisture left on the floor. NOTE: To avoid warping or damage caused by heat and moisture, the Multi-Purpose Steamer should only be used on properly sealed floor surfaces.
- Page 15 General steaming tips: Curtains and draperies can be steamed while still hanging. To remove wrinkles from towels, handkerchiefs and napkins, drape them over a rod or towel rack and gently steam them. Heavier fabrics may require repeated steaming to achieve desired results. To remove exceptionally stubborn wrinkles, steam both sides of the fabric.
-
Page 16: Cleaning And Care
CLEANING & CARE Unplug the power cord from the electrical outlet after steaming. Allow unit time to cool (at least 5 minutes). Remove all accessories from the unit. To remove the mop head, press the side locking button (fig. 1 & 2 below): Remove Water Tank Cap and drain any remaining water from Water Tank into a sink or tub to minimise potential mineral build-up;... - Page 17 Insert the tip of Cleaning Pin into the opening of the Steam Nozzle to remove mineral build-up in the nozzle. Move the pin back and forth at least 10 times (fig. 3 & 4 below). This may also be done to clean accessories such as the Jet Nozzle. Use Measuring Cup to make a mixture of approximately 100ml distilled water and 50ml vinegar.
-
Page 18: Troubleshooting
TROUBLESHOOTING Issue Possible Cause Steps to Resolve Residue in the water tank The residue left over from This is normal and not cause (first use). quality control testing. for concern. Plug electrical cord into the Unit is not plugged in. outlet. - Page 19 NOTES...
- Page 20 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
