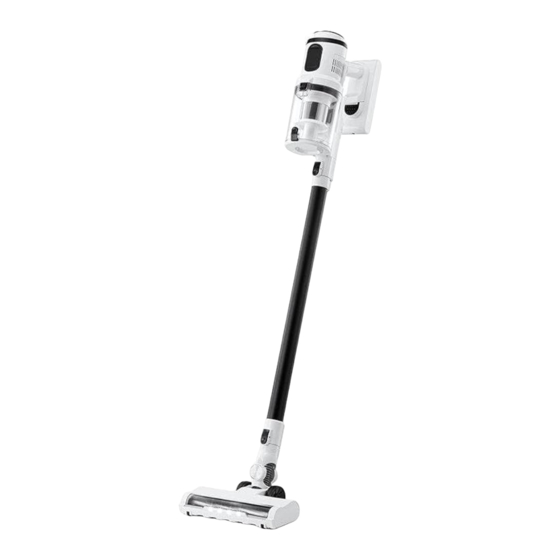

Kogan MX10 PRO User Manual

Cordless stick vacuum cleaner

Hide thumbs Also See for MX10 PRO:

User manual (12 pages)

Table Of Contents

Quick Links

MX10 PRO CORDLESS

STICK VACUUM CLEANER

KAVACSTM10P

Table of Contents

Need help?

Do you have a question about the MX10 PRO and is the answer not in the manual?

Questions and answers

Summary of Contents for Kogan MX10 PRO

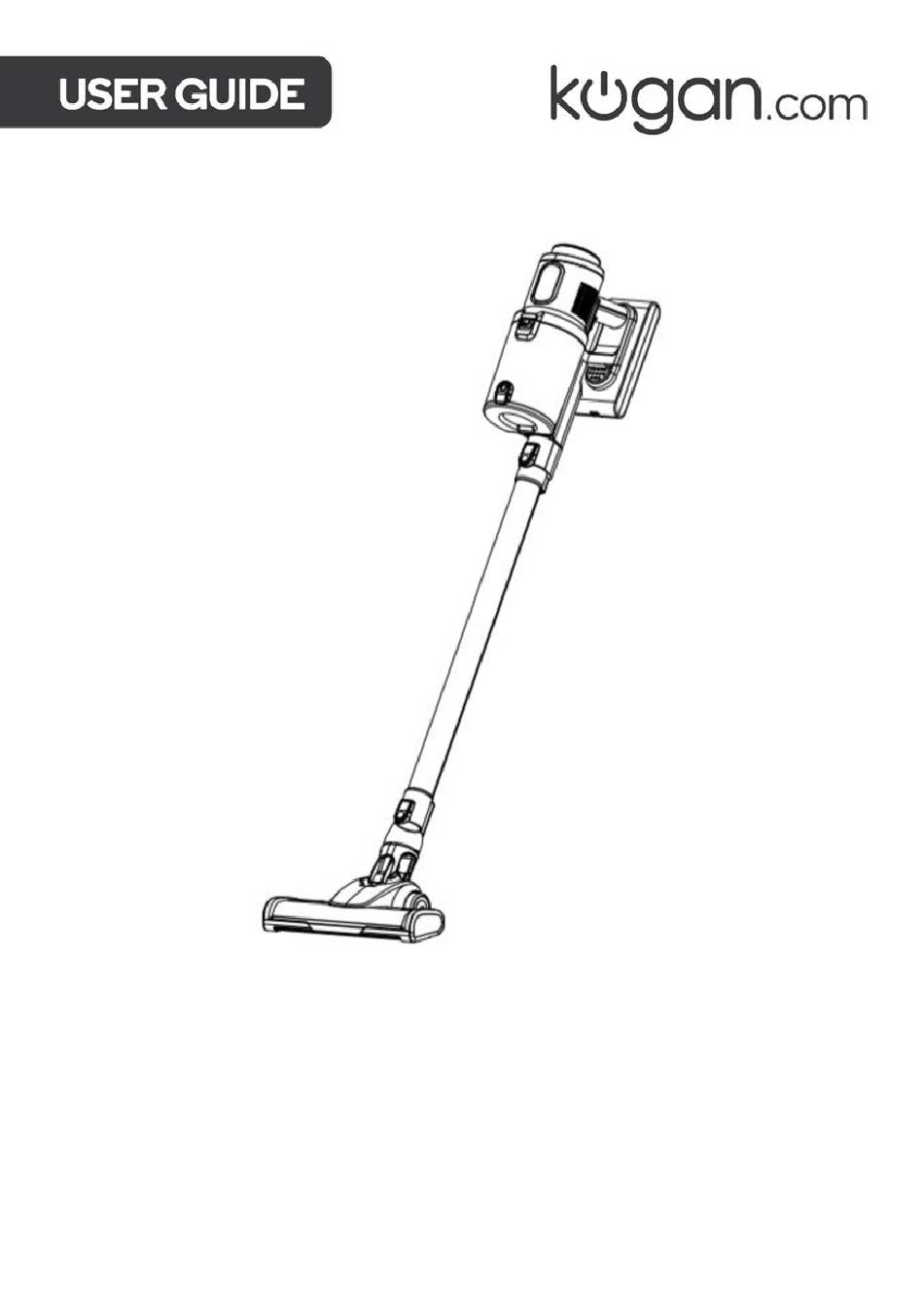

Page 1 MX10 PRO CORDLESS STICK VACUUM CLEANER KAVACSTM10P...
Page 2: Table Of Contents
Safety & Warnings Components Overview Assembly Operation Cleaning and Care Troubleshooting Specifications...
Page 3: Safety & Warnings
Never leave while the vacuum cleaner is working. Battery safety: • Only use the original battery supplied by Kogan.com. Do not use any other model or capacity of the battery. • Do not burn or expose the battery for to high temperatures.
Page 4 Do not use the vacuum cleaner as a toy. Children nearby must be supervised. • Be careful when cleaning stairs. • Only use accessories included with this product and recommended by Kogan.com. • This vacuum cleaner is not suitable for cleaning water or other liquids. Do not vacuum water or wet debris.
Page 5 Do not leave the power on when the vacuum is unattended. • Disconnect the charger when not in use after full charging or before maintenance. • If the power cord is damaged, cease use immediately and contact help.Kogan.com for support. Cleaning & Maintenance: •...
Page 6: Components
COMPONENTS Vaccum body Wall bracket Electric brush Extension tube 2-in- 1 Bristle Brush Crevice tool Battery Charger...
Page 7: Overview
OVERVIEW Display Battery Dust cup lock Battery release button Dust cup Charging input Dust cup release button Brush release button Tube release button Roller brush Extension tube Charging indicator Trigger...
Page 8 Display Symbol flashes when battery level is less than Battery level indicator 10 %. Brush blockage indicator Flashes RED when the brush is blocked. Flashes RED when the suction tube is Suction blockage indicator blocked. Dust sensor failure indicator Auto mode is not functioning. Reduced suction strength leads to less motor Decrease speed noise and longer running time.
Page 9: Assembly
ASSEMBLY Align the roller brush to the extension tube and push it gently. It will connect with an audible click. Align the extension tube with the vacuum cleaner body and push it gently. It will connect with an audible click. The roller brush and other brush heads can be connected directly to the vacuum cleaner body when a more compact unit is desired (for example, cleaning a car interior).
Page 10 Wall Bracket Select a location that is easily accessible and has enough room for the vacuum to be mounted vertically. Ensure that the mounting location is close to an electrical outlet so that you can plug in the vacuum charger. Using the wall bracket as a template, mark the location of the holes that will need to be drilled.
Page 11: Operation
OPERATION Turning the Vacuum On/Off Once assembly is complete, press the trigger to turn on the vacuum. Pressing the trigger a second time will turn the vacuum off. Trigger Suction Control • Suction power can be set to 3 levels (ECO, Normal & High). •...
Page 12 Extension Tube Used for cleaning high places such as ceilings, roofs, air conditioners and curtains. Compatible with the included brush heads. Electric Brush Used for cleaning hard floors and carpet. 2-in1 Bristle Brush • The bristle brush is suitable for cleaning places such as curtains, car interior and air conditioners or any areas where hair can collect.
Page 13 Charging Hang the vacuum on the wall bracket, connect the charger to an electrical outlet, and plug the charger into the charging input on the wall bracket. The charger can also be plugged directly into the charging input on the battery. When charging, the charging indicator will flash GREEN.
Page 14: Cleaning And Care
CLEANING & CARE • Only the dust cup, metal filter, 2-in-1 bristle brush and the crevice tool can be washed with warm soapy water. After cleaning, they must be thoroughly dried before being reinstalled into the vacuum. Never immerse any other parts in water or other liquids. •...
Page 15 Cleaning the Dust Cup and Filters Press and hold the dust cup lock to separate the dust cup form the vacuum body. Remove the filter assembly by pulling the handle away from the dust cup. Separate the HEPA filter from the metal filter by rotating it counter-clockwise.
Page 16 Cleaning the Roller Brush To allow for cleaning the roller can be removed from the roller brush by following the below steps: Move the lock (indicated by lock symbols) on the right side of the roller brush to the open lock position and take out the retaining bracket. Remove the roller and clean off any debris.
Page 17: Troubleshooting
Clear the blockage inside of the extension rod. Abnormal sounds. The extension rod is blocked. If abnormal noises continue, cease use and contact help.Kogan.com for support. Brush blockage indicator The roller brush head is dirty. Clean the roller brush. flashes. Air duct blockage...
Page 18: Specifications
SPECIFICATIONS Voltage supply 25.9V (Li-ion 2000mAh) Power 250W Charging time Approx. 4-5 Hours Operating time Up to 50 mins (when the battery is full charged) Charger Input 100-240V~, 50/60Hz 0,5A MAX Output 31V DC / 0.5A Protection Class Disposal This marking indicates that this appliance should not be disposed with other house-hold wastes.
Page 19 NOTES...
Page 20 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
