Digi Connect ME Hardware Reference Manual page 12

About the Digi Connect ME family of embedded modules
Signal
ME
Pin
# Function
1
2 VETH-
3-6
7 RXD
8 TXD
9 RTS
10 DTR
Digi Connect ME, Wi-ME, ME 9210, Wi-ME 9210 Hardware Reference Manual

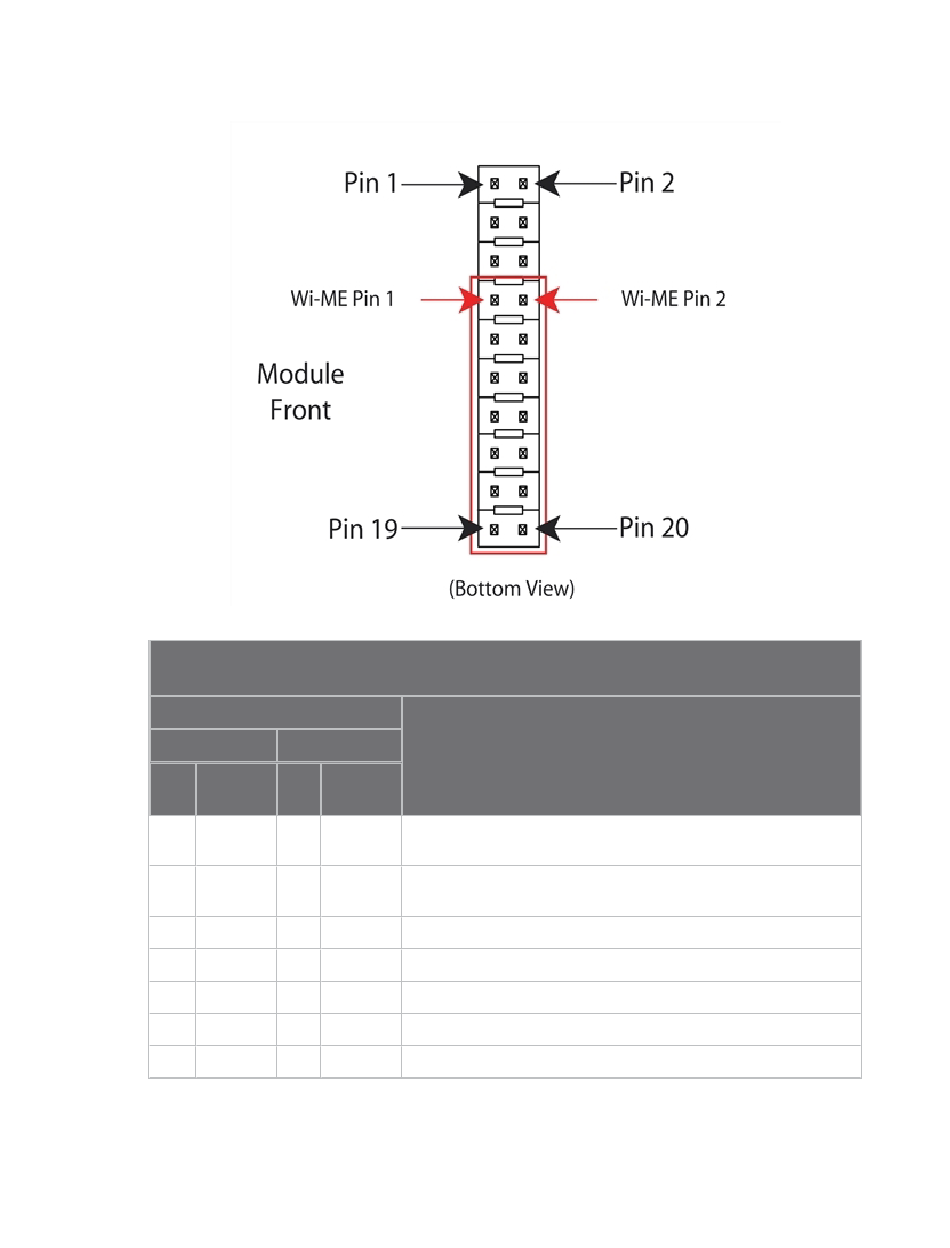

Power and Device Interface Connector Pin Assignments
Wi-ME
Pin
# Function Description
ME: Power Pass-Thru+
Wi-ME: Position Removed
ME: Power Pass-Thru-
Wi-ME: Position removed
Position removed
1 RXD Receive Data (Input)
2 TXD Transmit Data (Output)
3 RTS Request to Send (Output)
4 DTR Data Terminal Ready (Output)
Connectors: power and device interface
12
