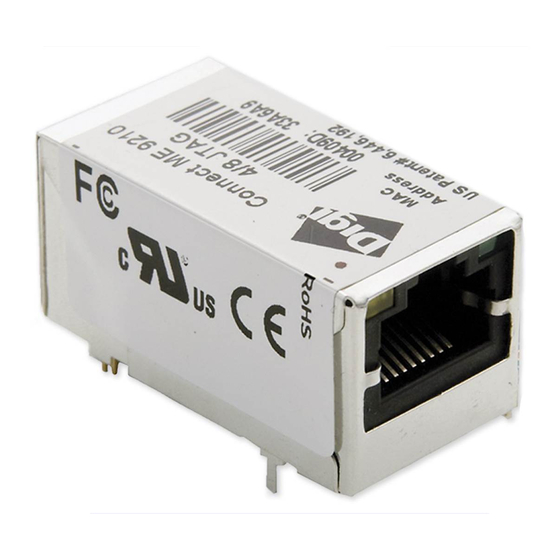

Digi Connect ME 9210 Troubleshooting Manual
Linux serial port 2 for jtag modules
Hide thumbs
Also See for Connect ME 9210:
- Hardware reference manual (61 pages) ,
- Quick start manual (2 pages) ,
- Hardware reference manual (75 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Digi Connect ME 9210
Summary of Contents for Digi Connect ME 9210
- Page 1 Digi Connect ME 9210 Linux: serial port 2 for JTAG modules...
-
Page 2: Table Of Contents
Digi Customizing Platform Code In Digi Embedded Linux Document History Date Version Change Description 08/05/2009 V1.0 Initial entry/outline Table of Contents Document History ....................... 2 Table of Contents ........................ 2 Problem Description ....................3 Requirements ......................3 Software Setup ......................3 Hardware Setup ...................... -
Page 3: Problem Description
Digi Customizing Platform Code In Digi Embedded Linux 1 Problem Description The Digi Connect ME 9210 module with JTAG has only one serial line (port A of the NS9210 processer) connected. If you want to activate the second serial line on the development board “P2 Serial Port 2”, follow the instructions below. - Page 4 Digi Customizing Platform Code In Digi Embedded Linux Configure the project (right click on the project an select configure) Copyright 2009 Digi International Page V1.0...
- Page 5 Select Linux Kernel Configuration, Type->NS9xxx Implementations->Digi Connect ME 9210 on Devboard->Serial Port C (CONFIG_CME9210JS_SERIAL_PORTC): Select Digi Connect ME 9210 on Devboard in the Linux Kernel Configuration System Type. Enable Serial port A with RX/TX only (CONFIG_CME9210JS_SERIAL_PORTA_RXTX): Copyright 2009 Digi International Page V1.0...
- Page 6 Digi Customizing Platform Code In Digi Embedded Linux Select Device Drivers, Character devices, Serial drivers, Digi NS921x serial port support, Console on Digi NS921x serial (CONFIG_SERIAL_NS921X_CONSOLE): Build and install the project Copyright 2009 Digi International Page V1.0...
-
Page 7: Hardware Setup
5 Testing Run the new build kernel on the Digi Connect ME 9210 module (e.g. update the image in flash build in section 3). Start a terminal program with 38400 8N1 on your development host on COM1 (console) and COM2 (serial port 2). - Page 8 Digi Customizing Platform Code In Digi Embedded Linux Copyright 2009 Digi International Page V1.0...
