Digi Connect ME Quick Start Manual

Ethernet communications module
Hide thumbs Also See for Connect ME:
Table of Contents

Advertisement

Quick Links

Download this manual

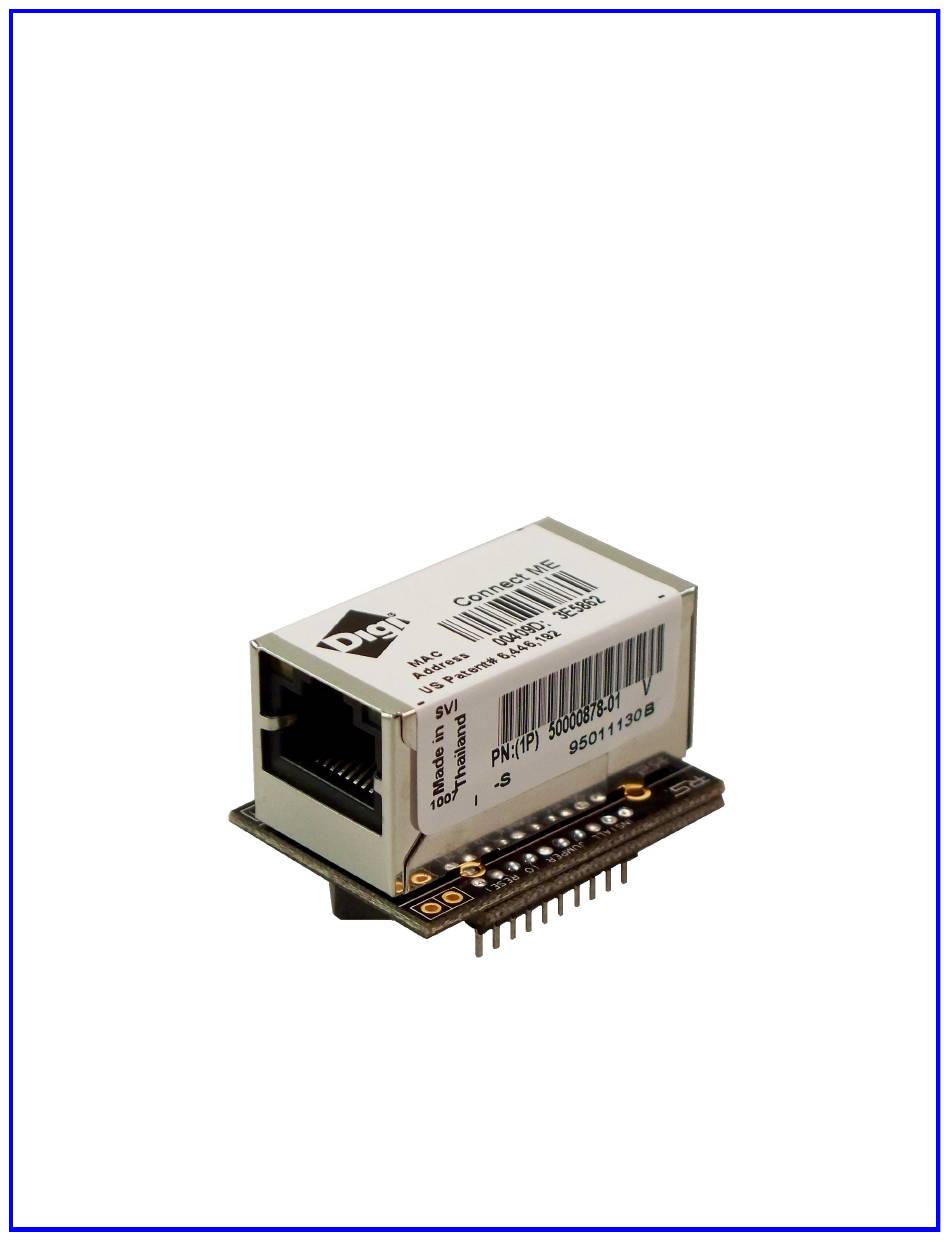

Quick Start Guide
Connect ME
Ethernet Communications Module
Copyright © 2012
National Control Devices
All Rights Reserved.
NOTICE: Portions of this Manual REQUIRE Internet Access
This manual will guide you through the setup and use of all Reactor Series relay controllers. Following this manual in the sequence outlined is absolutely essential to proper understanding and use of
Reactor Series Controllers. Please review the entire manual BEFORE contacting NCD technical support.
NCD technical support staff will direct your questions to this manual when applicable.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Connect ME and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Digi Connect ME

Summary of Contents for Digi Connect ME

  • Page 1 Quick Start Guide Connect ME Ethernet Communications Module Copyright © 2012 National Control Devices All Rights Reserved. NOTICE: Portions of this Manual REQUIRE Internet Access This manual will guide you through the setup and use of all Reactor Series relay controllers. Following this manual in the sequence outlined is absolutely essential to proper understanding and use of Reactor Series Controllers.
  • Page 2 Purchase USB Communications Module from our website at this link: http://www.controlanything.com/Relay/Device/ZUSB NOTICE: If using a Connect ME communications module with a pulsar series device, be sure to ALWAYS disconnect the power supply to the device before removing or installing the communications module. If you do not do this, you risk permanently damaging the module.
  • Page 3 ZigBee Wireless Communications DIGI http://www.digi.com/ XSC Wireless Communications DIGI http://www.digi.com/ Ethernet Connect ME DIGI http://www.digi.com/ USB Virtual COM Port FTDI http://www.ftdichip.com/ All other communication technologies are manufactured by National Control Devices and are fully supported by NCD Technical Support staff. Please contact NCD Technical Support Staff and re- view our forum posts at AccessNCD (http://iorelay.ning.com/)

  • Page 4: Table Of Contents

    Table of Contents Things You Will Need ............................... 5 Before Use ..................................5 Things to Remember ................................ 5 Getting Started ................................. 6 Option 1: Communication Via Virtual Com Port ......................6 Option 2: Direct TCP/IP Communications ........................7 Reset Function .................................

  • Page 5: Things You Will Need

    Connect ME Setup Things you will need A Computer running Windows XP or later versions  A Device with an Ethernet Connect ME module installed  An Ethernet cable  Computer-grade 12v DC regulated power supply  Before use Networking may be an issue when configuring your Ethernet enabled device. We at National Control Devices are not networking experts;...

  • Page 6: Getting Started

    Connect ME Setup Getting Started 1. Connect Ethernet Cable to Connect ME Module. Connect power supply to the device. Initially the LED lights on the board will flash rapidly. Eventually the LED will remain solidly lit. This indicates a good connection to the network.

  • Page 7: Option 2: Direct Tcp/Ip Communications

    Connect ME Setup Option 2: Direct TCP/IP Communications 1. Visit the NCD website, www.controlanything.com Visit any of the Ethernet product pages  Scroll Down to the “Resources” section  Select “Network Drivers,” this will redirect you to www.digi.com  Go directly to http://www.digi.com/support/productdetail?pid=2466&osvid=0&type=drivers...

  • Page 8: Reset Function

    If ANY invalid settings are stored which result in a loss of communication with your device.  1. Set jumper located on the Connect ME module to CLEAR mode as shown below and connect power supply to the board. Wait for flash code. Flash code consists of the green LED on the Connect ME module flashing once, five times, ...

  • Page 9: Troubleshooting

    When powering up the controller: 1. Connect your Ethernet cable to the Connect ME module. 2. Connect power supply to the device. Be sure that you perform the process IN THIS ORDER. When you connect the power supply before connecting the ...

  • Page 10: Technical Support

    Technical Support Technical support is available through our website, controlanything.com. AccessNCD is the way we connect NCD engineers to our customers. Click on the AccessNCD button located on the top right of the header of each page of our website. For technical support and application information, contact Travis Elliott, our technical engineer.
