Installation; Structural Requirements For Monitor Mounting; Water Supply - Task Force Tips HURRICANE RC Instructions For Installation, Safe Operation And Maintenance

MODEL
XFIH-E1*A
XFIH-E2*A
XFIH-E4*A
XFIH-E5*A
XFIH-E6*A
XFIH-E7*A
XFIH-E8*A
XFIH-E9*A
* The second to last digit in the model number refers to exit thread size and type.

4.0 INSTALLATION

See Remote Control (RC) Monitor Electrical Controls Supplemental Instructions For Use With Hurricane RC Models
Make sure that the area around the monitor is free from obstructions which would limit its range of motion and usefulness. If a valve
is mounted under the Hurricane, make sure the monitor will not interfere with the valve handle. If a butterfl y valve is mounted under
the monitor make sure that the butterfl y valve assembly does not interfere with the fl anged base of the Hurricane.

4.1 STRUCTURAL REQUIREMENTS FOR MONITOR MOUNTING

The structure that the Hurricane Monitor is mounted to must
withstand the internal pressure of the monitor as well as shear
and bending forces due to nozzle reaction. Nozzle reaction can be
as high as 760 lbs (340 kg) (1250 gpm at 130 psi).
For fl anged connections, the use of fl at fl anges without raised
faces is recommended. Use a ring gasket as defi ned in ASME
16.21 or ISO 7483. Tighten fl ange bolts in an alternating sequence
as shown in fi gure 4.1. Tighten to 76-80 ft-lb (100-110 Newton-
Meters).
WARNING

4.1.1 WATER SUPPLY

The HURRICANE Monitor is mounted on a riser pipe by a bolted fl ange joint. Make sure that the area around the monitor is free
from obstructions which would limit its range of motion and usefulness. If a valve is mounted under the HURRICANE, make sure
the monitor will not interfere with the valve handle. If a butterfl y valve is mounted under the monitor make sure that the butterfl y
valve assembly does not interfere with the fl anged base of the HURRICANE.
©Copyright Task Force Tips, Inc. 2008-2009
INLET FITTING TYPE
3" ANSI 125/150
(metric DN8 PN20)
4" ANSI 150
(metric DN100 PN20)
metric DN80, PN16
metric DN100, PN16
3" NPT Female
4" NPT Female
3" BSP Male
4" BSP Male
Hurricane RC Overall Height Increase for Inlet Fittings
Injury can result from an inadequately supported monitor. The monitor mount must be capable
of supporting the nozzle reaction force which can be as high as 760 lbs (340 kg). Flanges and
pipe made from plastic are inadequate for monitor mounting and must not be used. This monitor
is not recommended for portable use.
ADDITIONAL HEIGHT OVERALL HEIGHT
.75"
20 mm
.94"
23 mm
2.80"
22 mm
2.80"
22 mm
2.00"
51 mm
1.75"
45 mm
2.30"
58 mm
2.30"
58 mm
Fig 3.4F
1
3
2

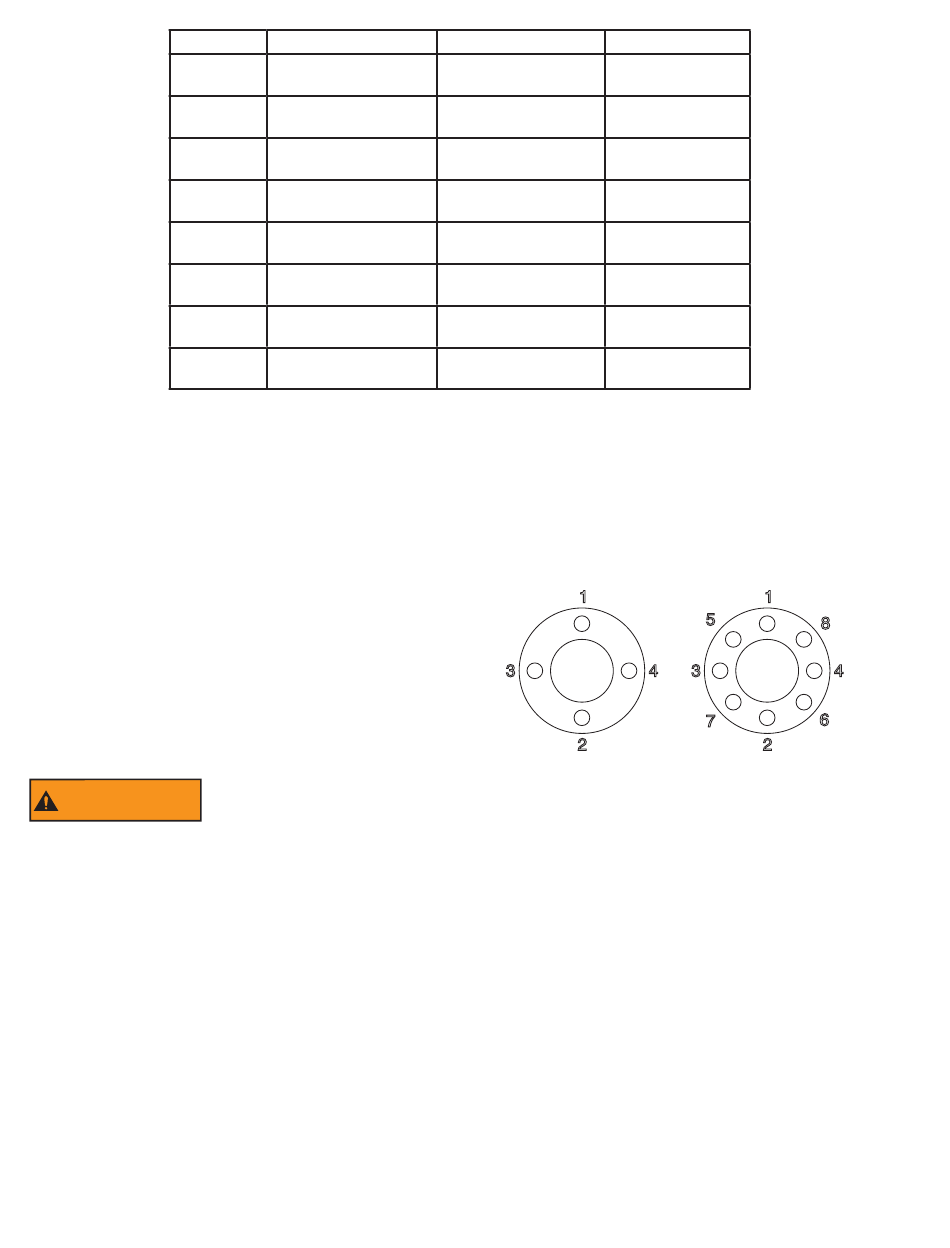

Fig 4.1 Flange Bolt Tightening Sequence
8
16.18"
412 mm
16.37"
415 mm
18.23"
414 mm
18.23"
414 mm
14.43"
443 mm
17.18"
436 mm
17.73"
450 mm
17.73"
450 mm
1
5
8
4 3
6
7
2
LIX-300 November 9, 2009 Rev11
