The Extend-A-Gun RC manual override knob may be mounted in any one of four possible orientations (90 degrees apart).
1-1/2 TURNS
APPROX. 37 IN.
MANUAL OVERRIDE
KNOB ON
EXTEND-A-GUN
The Extend-A-Gun manual override knob may be mounted in any of four possible orientations (90 degrees apart) relative to the
Straight Ahead Reference Mark on the monitor.
NOTE: Hurricane RC monitor, for use with Extend-A-Gun RC, comes with the wire installed in a nylon tube. The nylon tubing gives
the wire additional stiffness so it better follows as the Extend-A-Gun RC extends or retracts. A fi tting is also supplied and is to be used
where the nylon tubing and wire pass though the deck.
©Copyright Task Force Tips, Inc. 2008-2009
3/4 TURNS
APPROX. 33 IN.

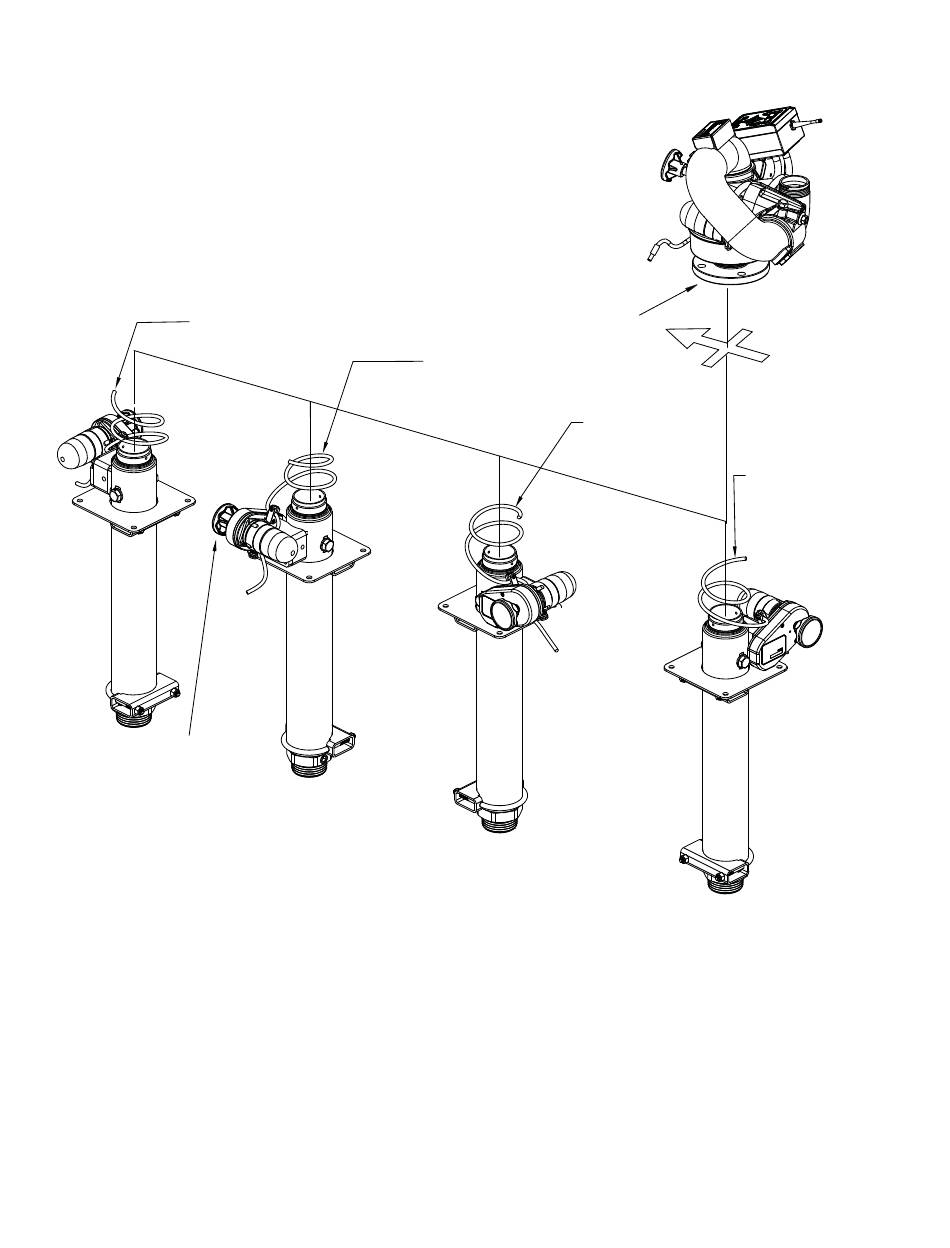

Fig 4.2.1B Possible Extend-A-Gun RC Mounting Orientations
STRAIGHT BACK
REFERENCE MARK
(SEE FIGURE 4.2A)
1 TURN
APPROX. 33 IN.
10
1-1/4 TURNS
APPROX. 34 IN.
LIX-300 November 9, 2009 Rev11
