INSTRUCTIONS FOR INSTALLATION, SAFE OPERATION AND MAINTENANCE
DANGER
TASK FORCE TIPS, INC.
MADE IN USA • www.tft.com
©Copyright Task Force Tips, Inc. 2008-2009
MANUAL:

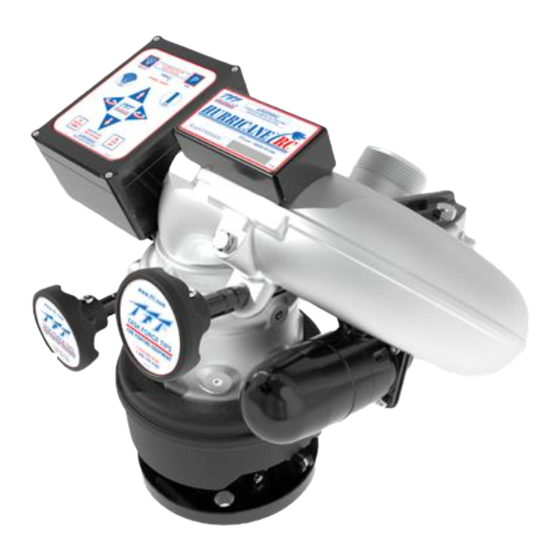

HURRICANE RC MONITOR
See Remote Control (RC) Monitor Electrical Controls
Supplemental Instructions For Use With Hurricane RC Models
Read instruction manual before use. Operation of this device without understanding the manual
and receiving proper training is a misuse of this equipment. A person who has not read and
understood all operating and safety instructions is not qualifi ed to operate the Hurricane RC
Monitor.
See Section 3.1 for Flow / Pressure
Operating Envelope
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
800-348-2686 • 219- 462-6161 • Fax 219-464-7155
LIX-300 November 9, 2009 Rev11
Advertisement
Table of Contents
Related Manuals for Task Force Tips HURRICANE RC
Summary of Contents for Task Force Tips HURRICANE RC
- Page 1 DANGER and receiving proper training is a misuse of this equipment. A person who has not read and understood all operating and safety instructions is not qualifi ed to operate the Hurricane RC Monitor. See Section 3.1 for Flow / Pressure Operating Envelope TASK FORCE TIPS, INC.
-
Page 2: Table Of Contents
8.0 Troubleshooting ..............20 2.0 Safety ................3 9.0 Drawings and Parts List ...........21-27 3.0 General Information ............4-10 9.1 Hurricane RC Monitor Assembly 3.1 Mechanical Specifi cations 9.2 Elevation Chain Drive Assembly 3.2 Part Identifi cation and Models 9.3 Gear Motor Assembly 3.3 Inlets and Outlets... -
Page 3: Safety
3.0 GENERAL INFORMATION The Task Force Tips’ HURRICANE RC is an electric remote monitor, with a single low-profi le waterway discharge. It has high fl ow and low friction loss characteristics. Capable of fl owing 1250 gpm (5000 l/min) while maintaining a FULL 450° of rotational travel (225°... -
Page 4: Mechanical Specifications
Nozzle C fl ows 1000 gpm at 100 psi (7 bar), K factor = 100 Nozzle D fl ows 1250 gpm at 100 psi (7 bar), K factor = 125 Fig 3.1B Operating Flow ©Copyright Task Force Tips, Inc. 2008-2009 LIX-300 November 9, 2009 Rev11... -
Page 5: Part Identification And Models
HORIZONTAL STOPS 5 PLACES ROTATION GREASE ZERK KNOB GREASE ZERK POWER CABLE AUTOMATIC DRAIN STRAIGHT BACK ELEVATION INLET REFERENCE MARK MOTOR WIRE SKIRT/CABLE GUIDE Fig. 3.2B Hurricane RC Monitor ©Copyright Task Force Tips, Inc. 2008-2009 LIX-300 November 9, 2009 Rev11... -
Page 6: Inlets And Outlets
Inlet Flange Size Specifi cations The standard Hurricane RC Monitor inlet is CODE-RLF for direct connection to TFT’s Extend-A-Gun RC3. Monitor inlet CODE-RPF is available for direct connection to Extend-A-Gun RC4. The standard outlet is 2-½”-6 National Hose male. Various other inlet and outlet fi... -
Page 7: Overall Dimensions
INLET FITTING [ 140 MM ] [ 273MM ] 5.89 ( SEE FIG 3.4F [ 150MM 16.24 ADDITIONAL [ 413MM ] HEIGHTS ) Fig 3.4E Hurricane RC Overall Dimensions ©Copyright Task Force Tips, Inc. 2008-2009 LIX-300 November 9, 2009 Rev11... -
Page 8: Installation
4.0 INSTALLATION See Remote Control (RC) Monitor Electrical Controls Supplemental Instructions For Use With Hurricane RC Models Make sure that the area around the monitor is free from obstructions which would limit its range of motion and usefulness. If a valve is mounted under the Hurricane, make sure the monitor will not interfere with the valve handle. -
Page 9: Inlet Mounting And Travel Ranges
4.2.1 INLET FITTING OR EXTEND-A-GUN RC INSTALLATION The Hurricane RC Monitor is available with various inlet fi ttings as shown in fi gure 3.3B. The Hurricane RC Monitor also connects directly to TFT’s Extend-A-Gun RC3 or RC4. The fi ttings and Extend-A-Gun RC are attached to the monitor by means of a threaded joint with an o-ring seal. - Page 10 Straight Ahead Reference Mark on the monitor. NOTE: Hurricane RC monitor, for use with Extend-A-Gun RC, comes with the wire installed in a nylon tube. The nylon tubing gives the wire additional stiffness so it better follows as the Extend-A-Gun RC extends or retracts. A fi tting is also supplied and is to be used where the nylon tubing and wire pass though the deck.
-
Page 11: Horizontal Rotation Travel Stops
4.2.2 HORIZONTAL ROTATION TRAVEL STOPS The range of Horizontal (left-right) travel for the Hurricane RC monitor is limited to 450 degrees or 225 degrees from either side of a nozzle discharge position. Horizontal (left-right) travel stop bolts may be installed in the monitor to limit travel as shown in fi gure 4.2.2A and 4.2.2B. -
Page 12: Nozzle Installation
4.2.3 VERTICAL ROTATION TRAVEL STOPS The range of elevation travel for the Hurricane RC monitor is shown in Fig. 4.2.3A. The elevation range of travel may be reduced by installing Adjustment Disks as shown in Fig. 4.2.3B. ADJUSTMENT DISK, Y3146... -
Page 13: Pressure Gage Port
4.5 AUTOMATIC DRAIN There is an automatic drain on the Hurricane RC installed from factory, that will empty the water from the low point of the lower bend to prevent freezing (Figure 3.2A and 3.2B). The valve closes when the internal pressure is approximately 5 psi (0.3 bar) or above and opens when the internal pressure is below 5 psi (0.3 bar). -
Page 14: Flows And Pressures
6.0 FLOWS AND PRESSURES The Hurricane RC monitor is designed for a maximum pressure of 200 psi (14 bar). See section 3.1 for fl ow pressure operating envelope. Do not exceed these limits. The stream exiting a monitor is very powerful and capable of causing injury and property damage. - Page 15 20.0 40.0 60.0 80.0 60 PSI 80 PSI 100 PSI 40 PSI 40.0 80.0 120.0 160.0 200.0 240.0 280.0 HORIZONTAL DISTANCE (FEET) Fig 6.1C Stacked Tips Stream Trajectory Graphs ©Copyright Task Force Tips, Inc. 2008-2009 LIX-300 November 9, 2009 Rev11...
- Page 16 NO WIND HORIZONTAL DISTANCE (FEET) This graph shows approximately how a moderate wind can affect stream reach. 1 ft = 0.3048 m Fig 6.1E Effects of Wind on Reach ©Copyright Task Force Tips, Inc. 2008-2009 LIX-300 November 9, 2009 Rev11...
-
Page 17: Automatic Masterstream Nozzles
When using a fog nozzle, it is recommended that no stream straightener be used since the fog nozzle’s fl ow path generally serves as a stream straightener. Use of a stream straightener with a fog nozzle will increase the stress on the monitor’s gear train and may lead to premature wear. ©Copyright Task Force Tips, Inc. 2008-2009 LIX-300 November 9, 2009 Rev11... -
Page 18: Maintenance And Inspection
7.2 PERFORMANCE TESTING Performance tests should be conducted on the Hurricane RC monitor after repairs are made, or any time a problem is reported to verify operation in accordance with Task Force Tips test procedures. Consult the factory for the test procedure that corresponds to the model and serial number of your monitor. - Page 19 9.0 HURRICANE DRAWING & PARTS LIST 9.1 HURRICANE RC MONITOR ASSEMBLY ................. 20 9.2 ELEVATION CHAIN DRIVE ASSEMBLY .................. 22 9.3 GEAR MOTOR ASSEMBLY ..................... 22 9.4 MONITOR CONTROL BOX ASSEMBLY .................. 23 ©Copyright Task Force Tips, Inc. 2008-2009 LIX-300 November 9, 2009 Rev11...
-
Page 20: Hurricane Rc Monitor Assembly
9.1 HURRICANE RC MONITOR ASSEMBLY 12 13 ©Copyright Task Force Tips, Inc. 2008-2009 LIX-300 November 9, 2009 Rev11... - Page 21 CABLE - POWER & COMM. 34 FEET Y5200 UPPER WIRE SKIRT Y4650 LOWER WIRE SKIRT Y4660 LOOP CLAMP 3/8" Y4655 FLANGE 3"ANSI 150 ALUM Y4410A WIRE SKIRT RETAINER Y4661 ©Copyright Task Force Tips, Inc. 2008-2009 LIX-300 November 9, 2009 Rev11...
-
Page 22: Elevation Chain Drive Assembly
CUP SEAL 1.0625 x .5625 x 1/4 Y4620 MOTOR SOCKET Y4615 O-RING-018 VO-018 CONDUIT FITTING Y5213 HOSE - 3/8” ID PUSH-LOK Y5250 O-RING-038 VO-038 GEAR MOTOR WITH ENCODER Y4611 ENCLOSURE Y4616 ©Copyright Task Force Tips, Inc. 2008-2009 LIX-300 November 9, 2009 Rev11... -
Page 23: Monitor Control Box Assembly
10.0” TOTAL LENGTH USED Y5475 FOR TORNADO RC NOZZLE CONNECTION 5.0” EXPOSED CABLE (not including plug) BOARD-OEM 900 MHZ RF MODULE Y5710 (included with part YE-RF-900) ANTENNA W/FITTING Y5881 ©Copyright Task Force Tips, Inc. 2008-2009 LIX-300 November 9, 2009 Rev11... -
Page 24: Warranty
Task Force Tips, Inc., 3701 Innovation Way, Valparaiso, Indiana 46383-9327 USA (“TFT”) warrants to the original purchaser of its Hurricane RC Monitor (“equipment”), and to anyone to whom it is transferred, that the equipment shall be free from defects in material and workmanship during the fi...
