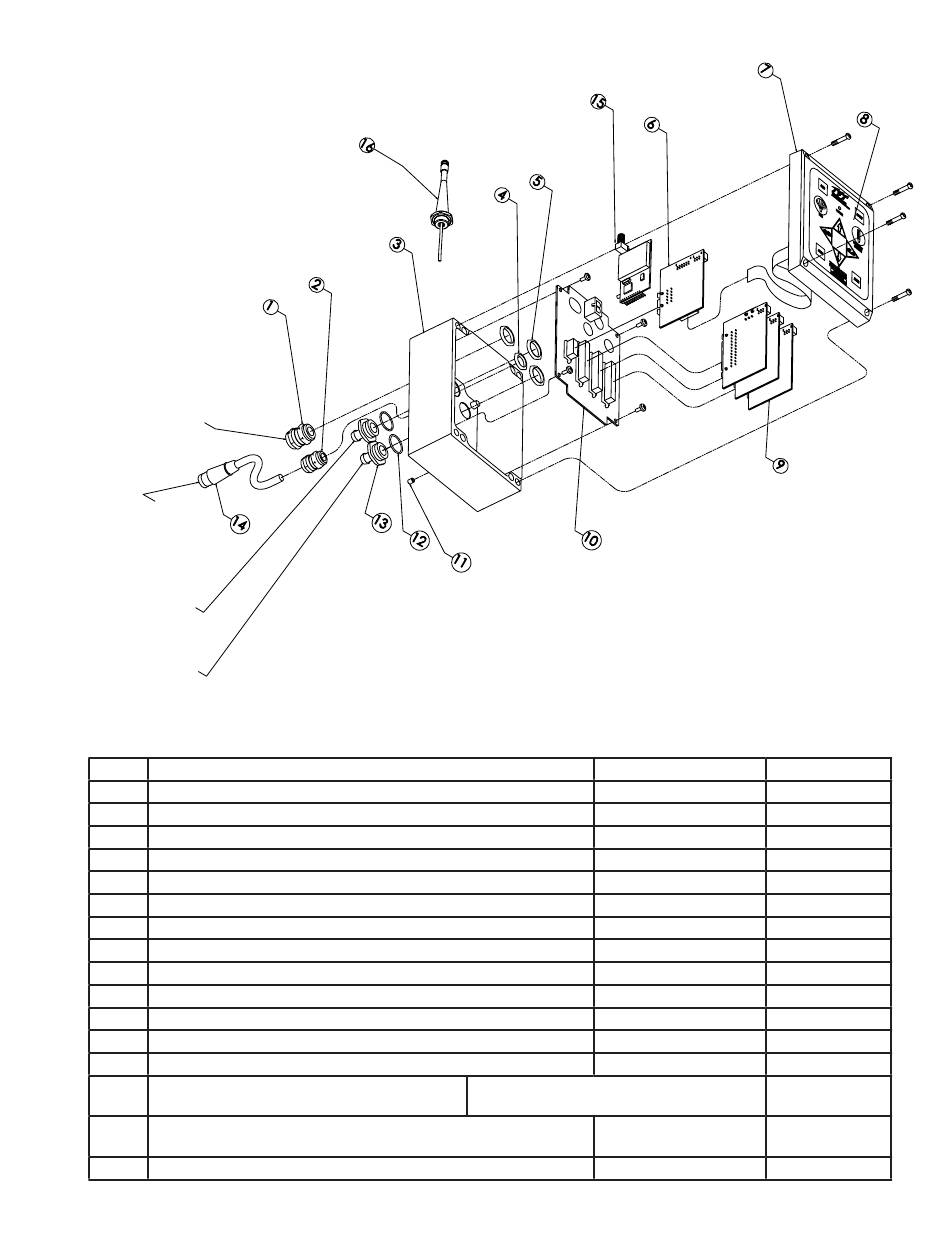

9.4 MONITOR CONTROL BOX ASSEMBLY

TO
POWER
CABLE
TO TFT
ER NOZZLE
MALE PLUG
TO HORIZONTAL
GEAR MOTOR
TO VERTICAL
GEAR MOTOR
# DESCRIPTION
1 CABLE FITTING PG11
2 CABLE FITTING PG9
3 ENCLOSURE - BOX
4 LOCKNUT - PG9
5 LOCKNUT - PG11
6 BOARD - COMMUNICATION
7 ENCLOSURE - LID
8 CONTROL SWITCH PAD
9 BOARD - MOTOR CONTROL
10 BOARD - MAIN
11 V10-32 x 1/4 SET SCREW
12 O-RING-018
13 CONDUIT HOSE FITTING
14 FEMALE PLUG - 6 POLE
FOR TORNADO RC NOZZLE CONNECTION
15 BOARD-OEM 900 MHZ RF MODULE
(included with part YE-RF-900)
16 ANTENNA W/FITTING
