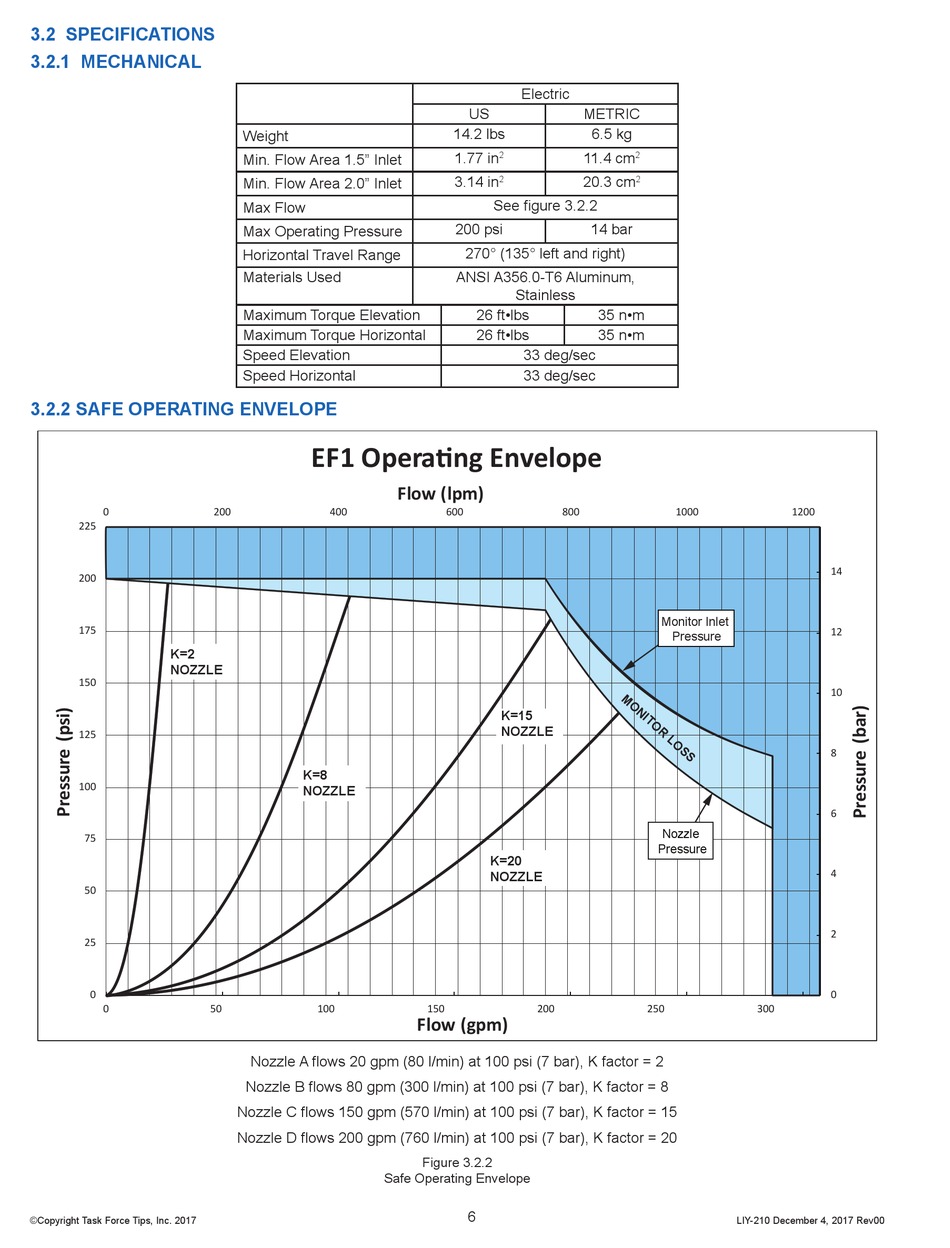

3.2 SPECIFICATIONS
3.2.1 MECHANICAL
3.2.2 SAFE OPERATING ENVELOPE
0
225
200
175
K=2
NOZZLE
150
125
100
75
50
25
0
0
©Copyright Task Force Tips, Inc. 2017
Weight
Min. Flow Area 1.5" Inlet
Min. Flow Area 2.0" Inlet
Max Flow
Max Operating Pressure
Horizontal Travel Range
Materials Used
Maximum Torque Elevation
Maximum Torque Horizontal
Speed Elevation
Speed Horizontal
EF1 Opera�ng Envelope
200
400
K=8
NOZZLE
50
100
Nozzle A flows 20 gpm (80 l/min) at 100 psi (7 bar), K factor = 2
Nozzle B flows 80 gpm (300 l/min) at 100 psi (7 bar), K factor = 8
Nozzle C flows 150 gpm (570 l/min) at 100 psi (7 bar), K factor = 15
Nozzle D flows 200 gpm (760 l/min) at 100 psi (7 bar), K factor = 20
Safe Operating Envelope
Electric
US
14.2 lbs
1.77 in
2
3.14 in
2
See figure 3.2.2
200 psi
270° (135° left and right)
ANSI A356.0-T6 Aluminum,
Stainless
26 ft•lbs
26 ft•lbs
33 deg/sec
33 deg/sec
Flow (lpm)
600
800
K=15
NOZZLE
K=20
NOZZLE
150
200
Flow (gpm)
Figure 3.2.2
6
METRIC
6.5 kg
11.4 cm
2
20.3 cm
2
14 bar
35 n•m
35 n•m
1000
Monitor Inlet
Pressure
Nozzle
Pressure
250
300
LIY-210 December 4, 2017 Rev00
1200
14
12
10
8
6
4
2
0
