3.5 OVERALL DIMENSIONS

©Copyright Task Force Tips, Inc. 2017
2.2"
[55mm]
7.0"
[178mm]
7.0"
[178mm]
SWING
10.8"
[276mm]
3.4"
[85mm]

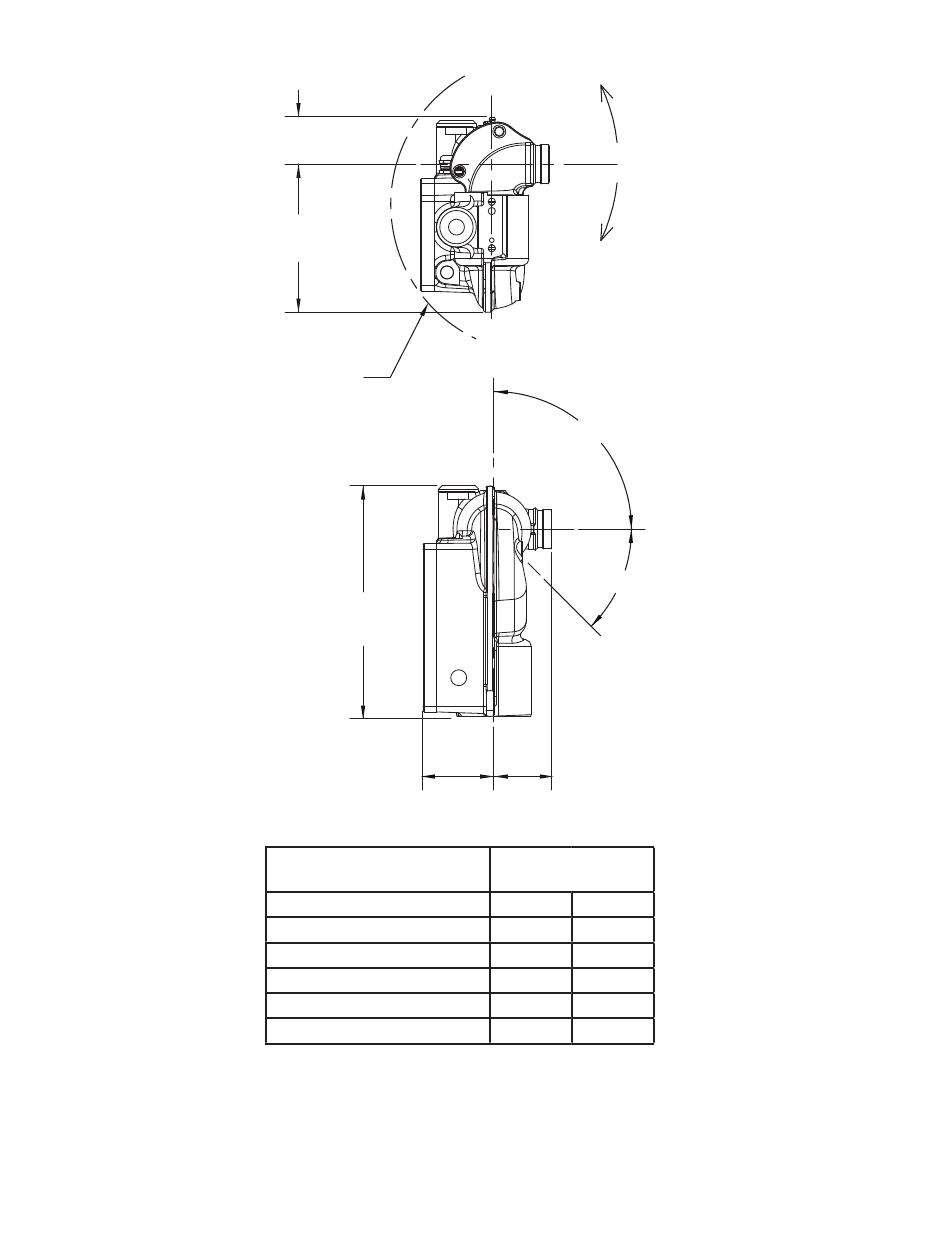

Fig 3.5a
EF1 RC Monitor Dimensions
INLET OPTION
2.0" BSP FEMALE (Y1403)
1.5" BSP FEMALE (Y1402)
2.0" ANSI 150 (Y1417)
1.5" ANSI 150 (Y1412)
2.0" NPT FEMALE (Y1401)
1.5" NPT FEMALE (Y1400)
Fig 3.5b
Inlet Heights
135° LEFT
135° RIGHT
90°
45°
2.7"
[69mm]
Additional Overall
Height
2.7 in 69 mm
2.7 in 69 mm
1.8 in 45 mm
1.7 in 43 mm
2.7 in 69 mm
2.7 in 69 mm
